8

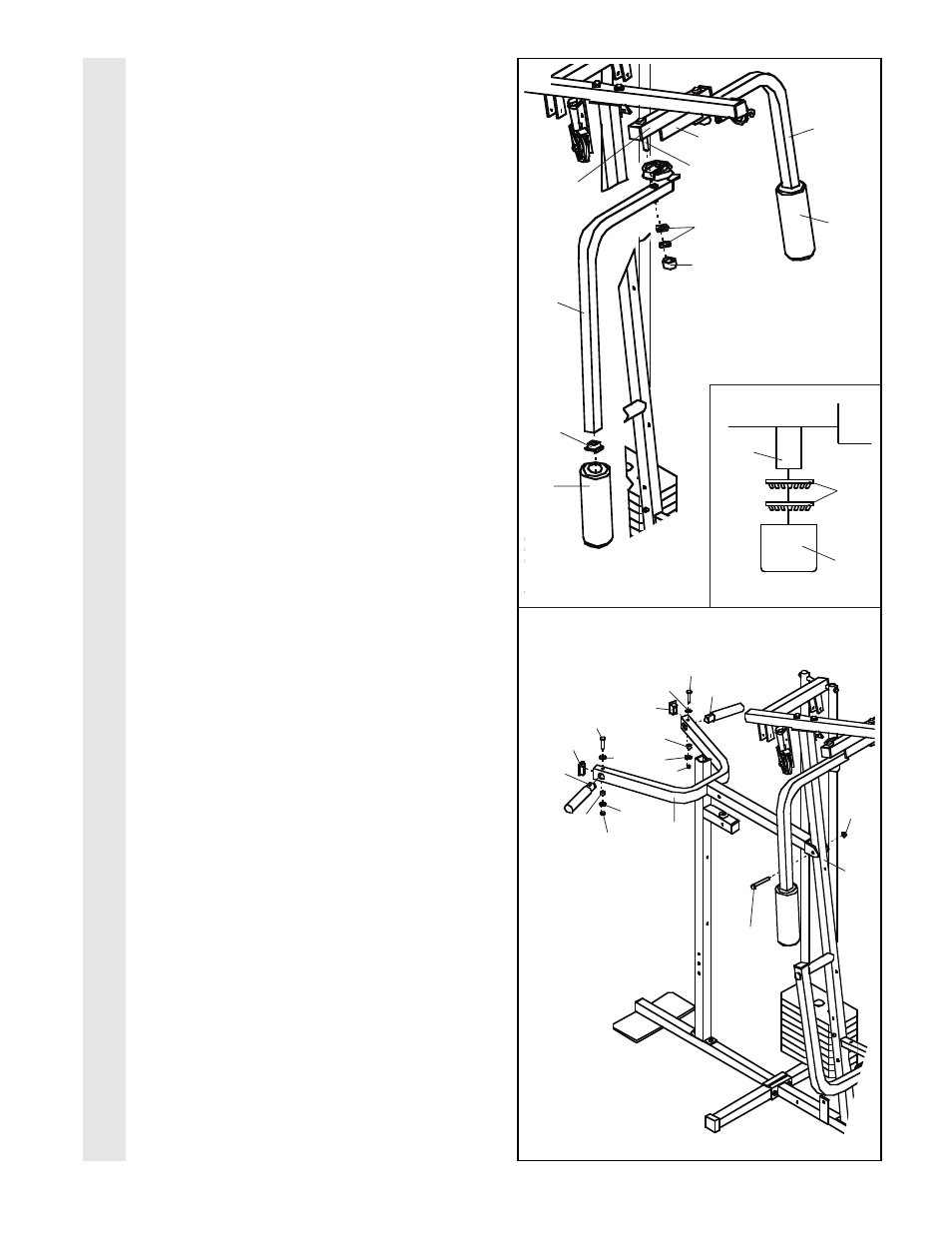

12. Lubricate both axles on the Top Frame (55).
Slide the Right Arm (48) onto the right axle.
Note: Be careful not to confuse the Right
Arm with the Left Arm (47); refer to step 11
to identify the Right Arm. Be sure that the
upper end of the Right Arm is behind the
indicated bracket on the Top Frame (55).
Tap two 1” Retainers (69) and a 1” Round
Cover Cap (70) onto the right axle.
Be sure
that the teeth on the Retainers bend
toward the Cover Cap, as shown in the
inset drawing.
Attach the Left Arm (47) in the same manner.
Press 1 3/4” Square Inner Caps (44) into the
lower ends of the Right and Left Arms (47,
48). Wet the lower end of each Arm with
soapy water. Slide a 10” Pad (45) onto the
lower end of each Arm.
13. Press two 1” x 2” Inner Caps (83) into the
indicated end of the Squat Arm (79).
Lubricate a 3/8” x 3 1/4” Bolt (85). Attach the
Squat Arm (79) to the Front Upright (42) with
the 3/8” x 3 1/4” Bolt and a 3/8” Nylon Locknut
(21).
Attach a Handle (92) to one side of the Squat
Arm (79) with a 5/16” x 2 1/2” Bolt (22), two
5/16” Flat Washers (8), a 1/2” x 17/32” Spacer
(94), and a 5/16” Nylon Locknut (3).
Attach the other Handle (92) to the other side
of the Squat Arm (79) in the same manner.
12
13
ARM ASSEMBL
Y
Axle
47
48
45
45
44
69
69
70
21
79
92
92
83
22
3
94
42
70
Bracket
Lubricate
Axle
55
85
Lubricate
8
3
8
83
22
8
8
94
