5

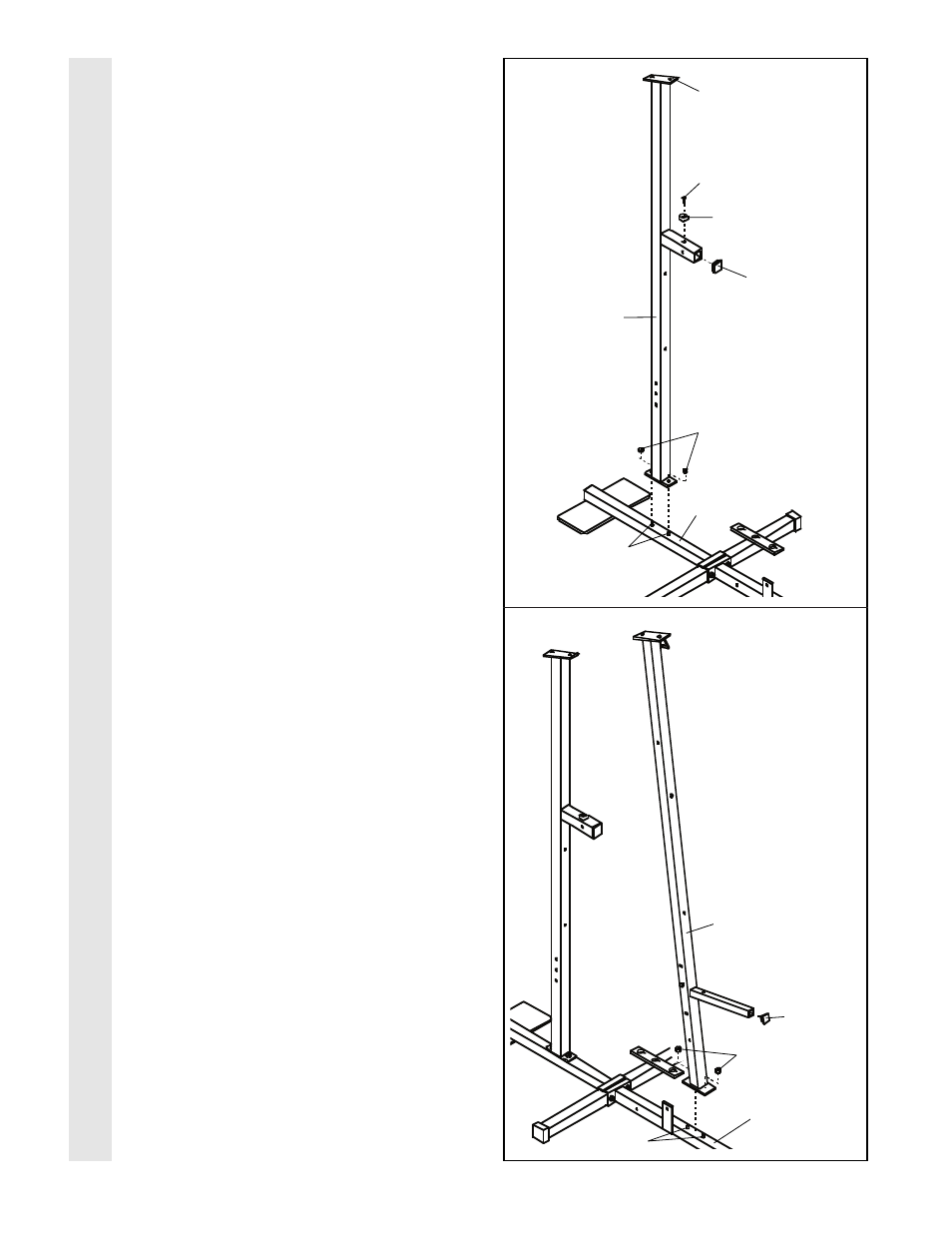

3. Press a 2” Square Inner Cap (27) into the
Rear Upright (56).
Attach a Rubber Bumper (90) to the Rear
Upright (56) with a #8 x 1/2” Tap Screw (89).
Slide the Rear Upright (56) onto the 5/16” x
2 1/2” Carriage Bolts (1) in the Rear Base
(51). Hand tighten a 5/16” Nylon Locknut (3)
onto each Carriage Bolt.
The high side of
the bracket on the Rear Upright must be
on the side shown. Do not tighten the
Nylon Locknuts yet.
4. Press a 1” Square Inner Cap (65) into the
Front Upright (42).
Slide the Front Upright (42) onto the 5/16” x
2 1/2” Carriage Bolts (1) in the Front Base
(4). Hand tighten a 5/16” Nylon Locknut (3)
onto each Carriage Bolt.
Do not tighten the
Nylon Locknuts yet.
3
89
90
27
1
3
51
3
1
4
FRAME ASSEMBL
Y
High Side of
Bracket
56
65
4
42
