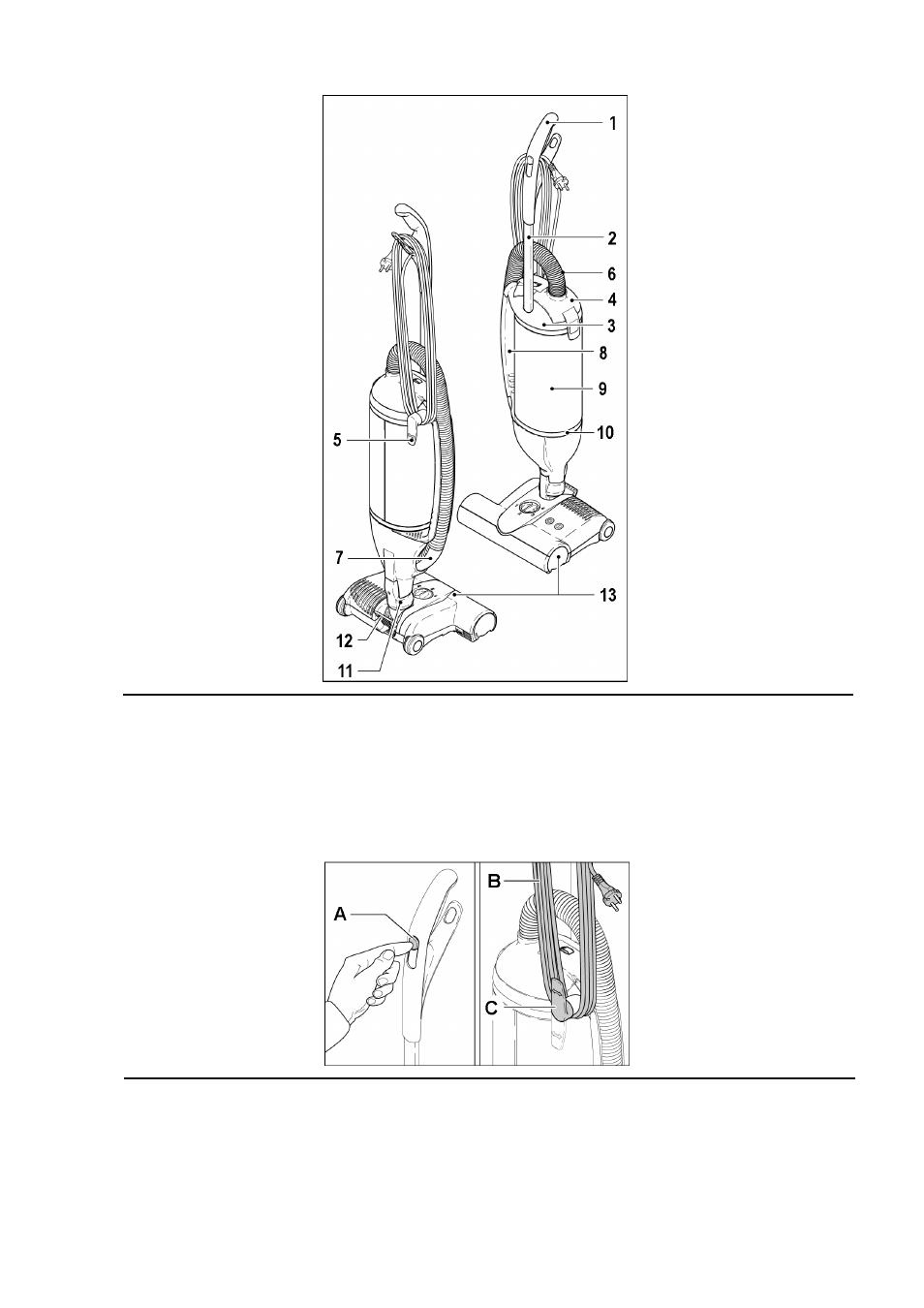

COMPONENTS/CONTROLS
86324140 AXCESS 03/25/09
3-2
1. Handle
2. Tube
3. Dust Bag Housing
4. Filter Cover
5. Cable Hook
6. Hose
7. Hose Handle
8. Carrying Handle
9. Exhaust Filter
10. Filter Retaining Rings
11. Swivel Neck
12. Foot Pedal
13. Power Head (12” - 15”)
A. On/Off
Switch
B. Power
Cord
C. Cable Hook
