CABLE DIAGRAM

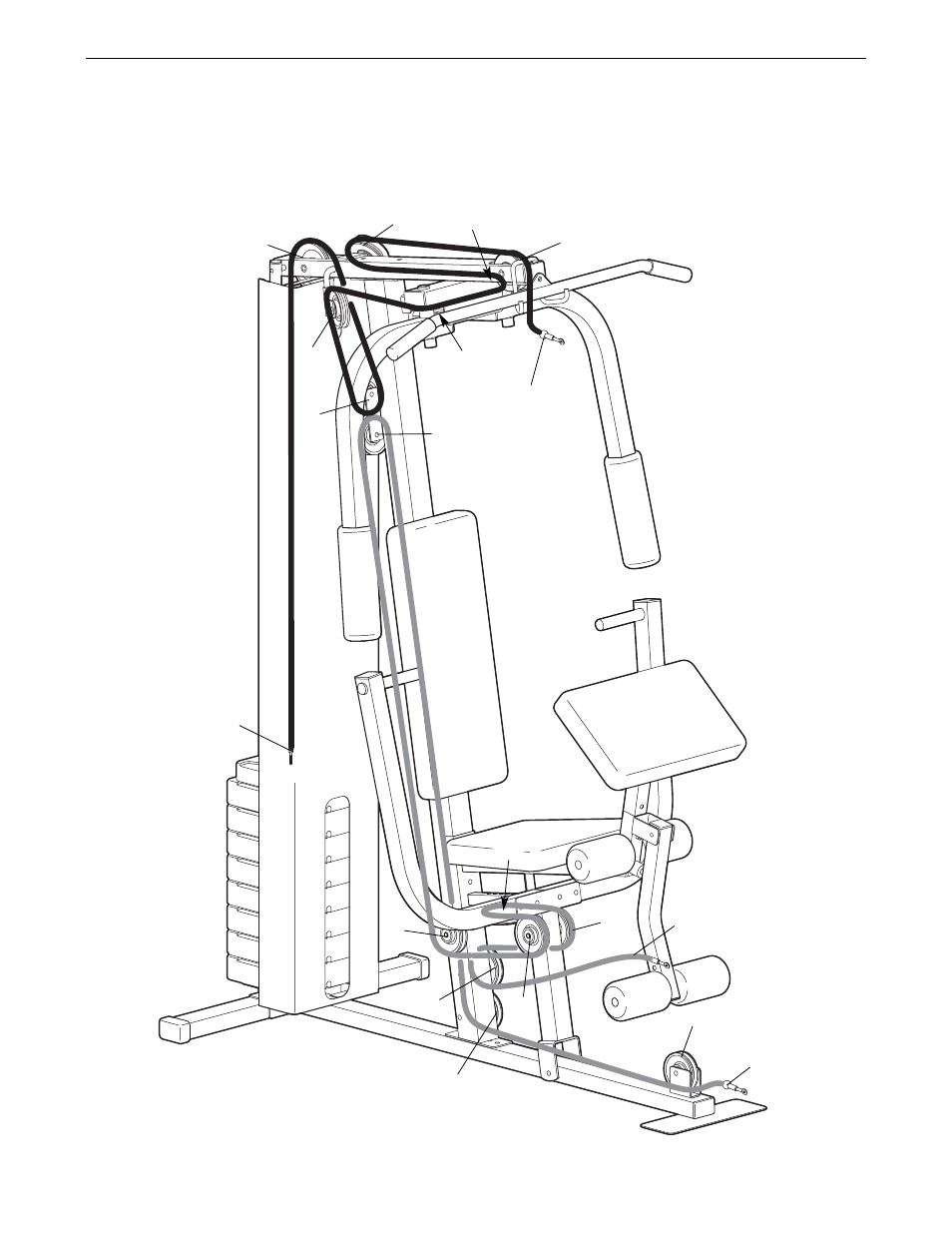

The diagram below shows the proper routing of the Short Cable (23) and the Long Cable (69). Use the diagram
to be sure that the cables and the cable traps have been assembled correctly. If the cables have not been cor-
rectly routed, the training system will not function properly and damage may occur. The cable traps should be
positioned so that the cables will not come off the pulleys. Be sure that the cable traps do not touch or bind
the cables.
1—High Pulley
1—Low Pulley
9—Leg Lever
Long Cable—69
2
3
4
3
Short Cable—23
5
6
2
4
5
7
8
6
8—Weight
Stack
7
