Weider WESY19002 - Manual (Page 11)

11
ARM
ASSEMBL
Y

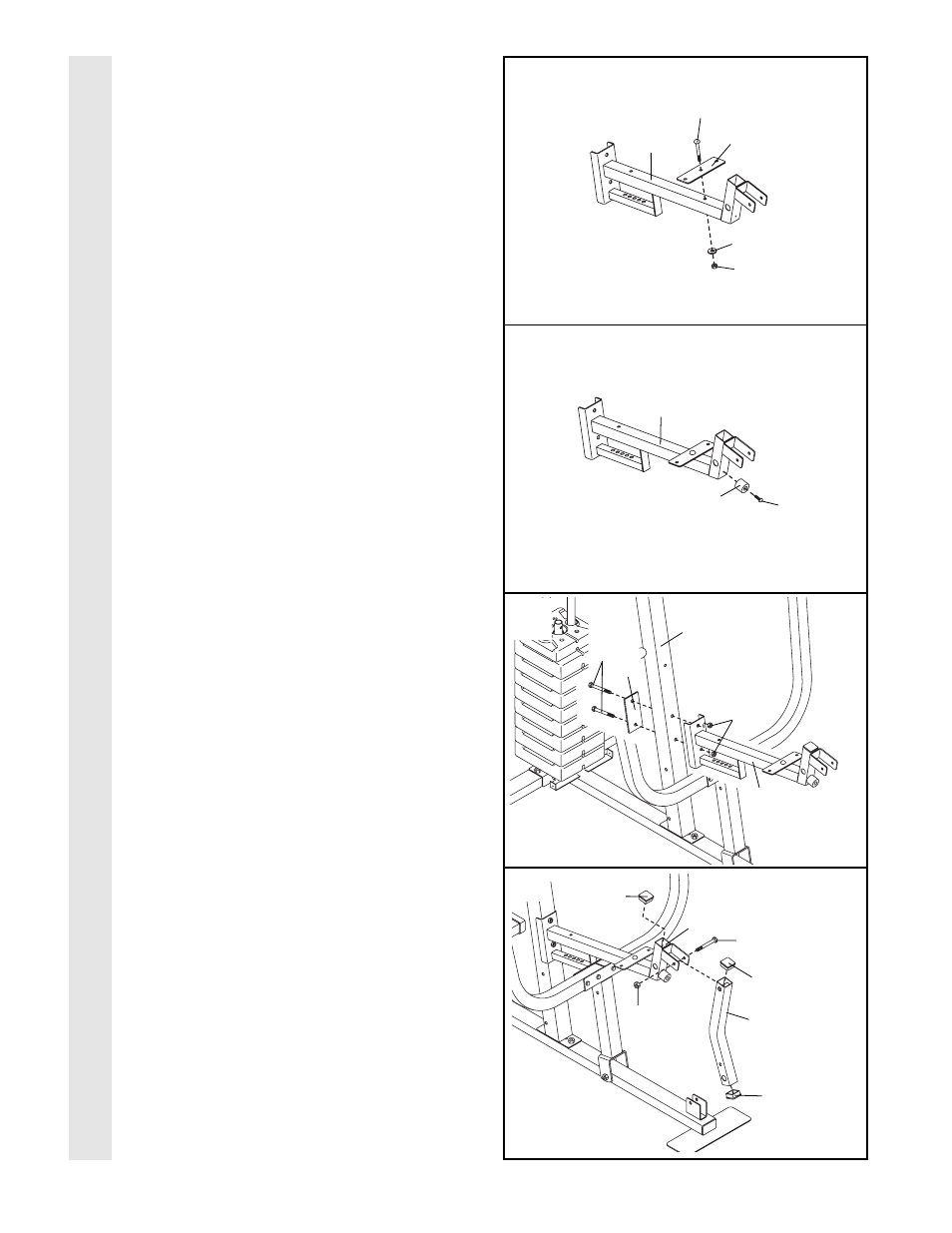

11. Attach the Seat Plate (37) to the Seat Frame
(36) using a 1/4” x 2 1/4” Carriage Bolt (38), a
1/4” Flat Washer (78), and a 1/4” Nylon
Locknut (2).
12. Attach a Bumper (11) to the Seat Frame (36)
using a #10 x 1” Screw (80).
13. Attach the Seat Frame (36) to the Front
Upright (42) using two 3/8” x 3 1/4” Bolts (8),
a Back Plate (71), and two 3/8” Nylon
Locknuts (21).
14. Press a 1 1/2” Square Inner Cap (32) into
each end of the Leg Lever (29) and the indi-
cated end of the Seat Frame (36).
Lubricate a 5/16” x 2 1/2” Bolt (22). Attach the
Leg Lever (29) to the Seat Frame (36) using
the Bolt and a 5/16” Nylon Locknut (3). Do
not overtighten the Nylon Locknut; the
Leg Lever must be able to pivot freely.
11
36
37
38
78
2
36
11
80
29
32
32
22
36
3
32
21
42
36
12
13
8
71
14
