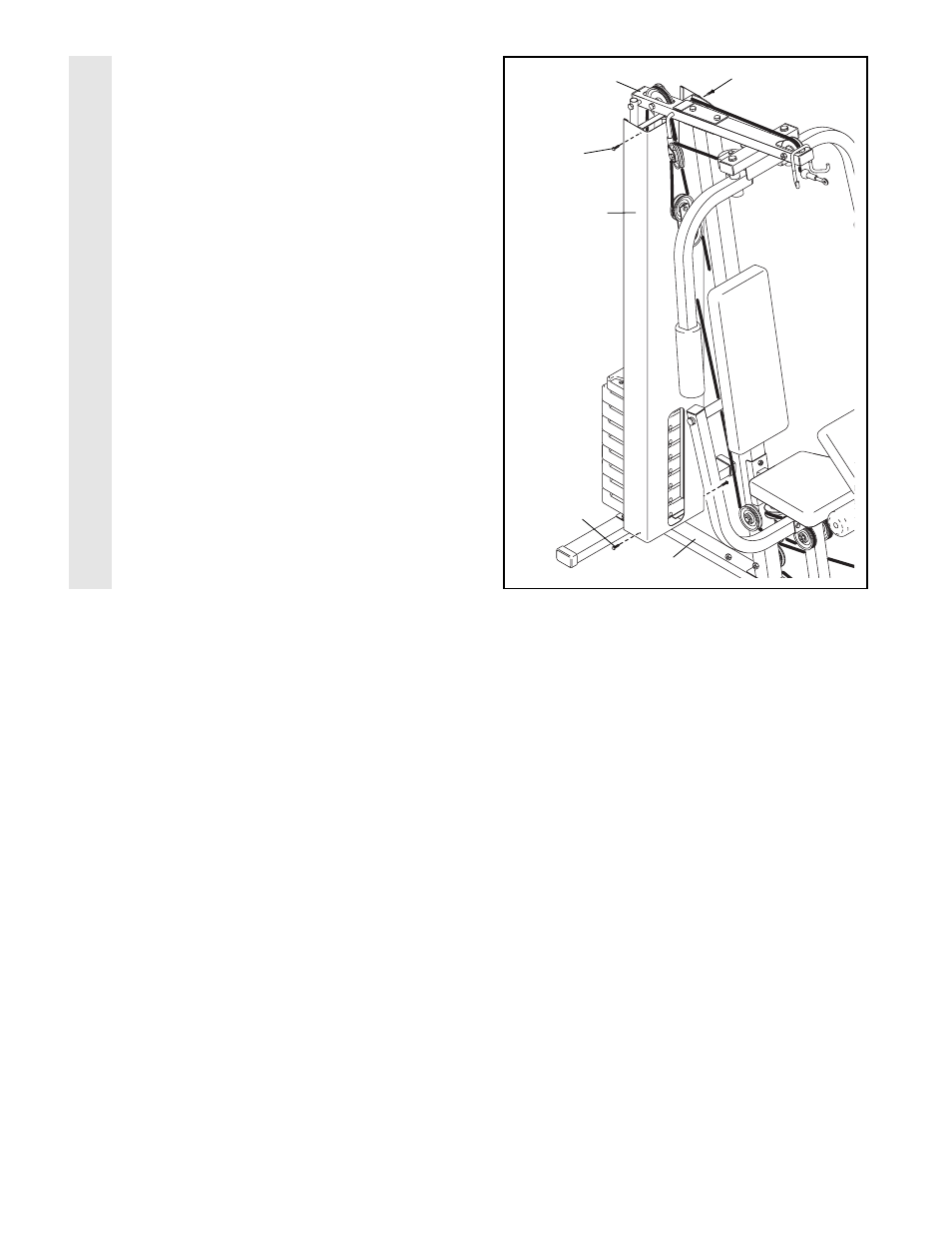

35. Attach the Shroud (59) to the brackets on the
Top Frame (55) and the Base (4) using four
#8 x 1/2” Screws (79).
17
35
79
79
59
55
79
4
SEA
T ASSEMBL
Y
36. Make sure that all parts have been properly
tightened. The use of the remaining parts will
be explained in ADJUSTMENT, beginning on
page 18 of this manual.
Before using the training system, pull each
cable a few times to be sure that the cables
move smoothly over the pulleys. If one of the
cables does not move smoothly, find and cor-
rect the problem. IMPORTANT: If the cables
are not properly installed, they may be
damaged when heavy weight is used. See
the CABLE DIAGRAM on page 21 of this
manual for proper cable routing. If there is
any slack in the cables, you will need to
remove it by tightening the cables. See
TROUBLE-SHOOTING AND MAINTENANCE
on page 20.
