Western Digital WDE2170 User Manual
Page 18
Specifications
WD Enterprise WDE2170/WDE4360
RELEASED 04-08-97
4079-001045 Rev. B
10
2.3.1. Mounting
The WD Enterprise drives feature side and bottom mounting holes, which allow the
drive to be mounted in any orientation. See Figure 2-4 for orientation axes.
The hard drive is a precision mechanical assembly. Improper mounting may distort the
drive frame and impair its ability to function. For instructions on installing the drive,
including drive handling and mounting, refer to the WD Enterprise Installation Guide
(document number 4079-001046).

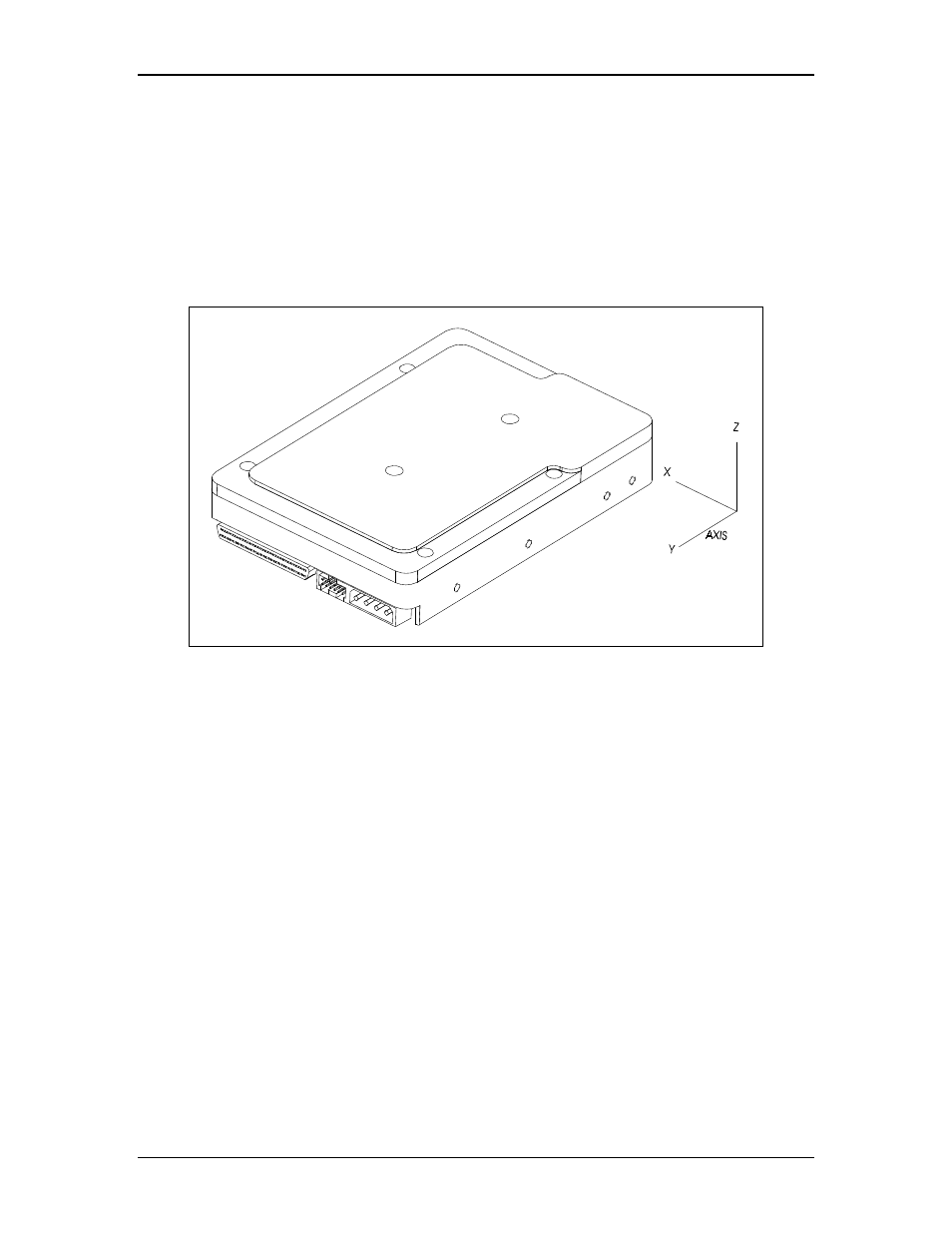

Figure 2-4. Drive Axis Definition
