15

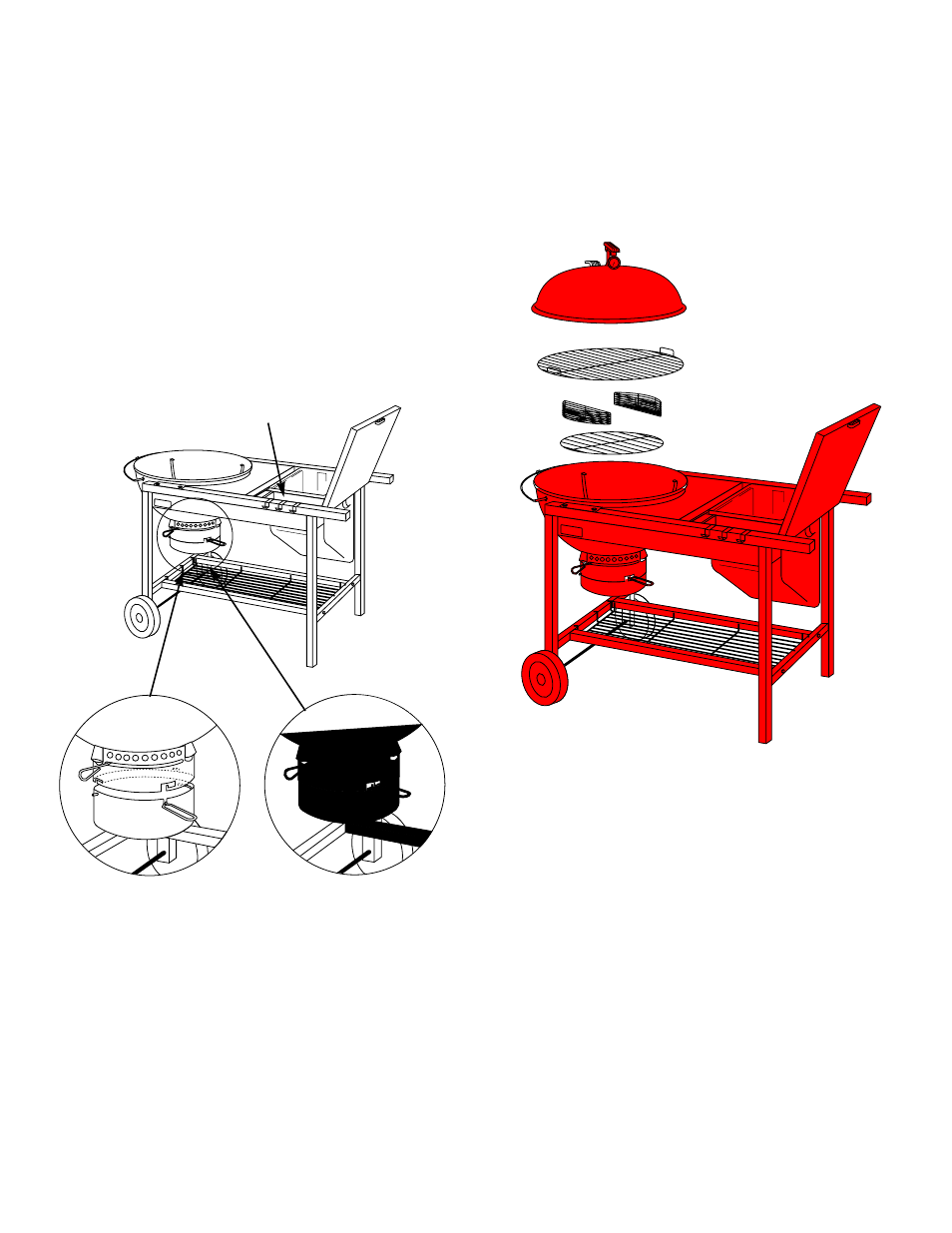

Figure 11
Step 10
Add grates, Char-Basket Fuel Holders and lid
You will need: charcoal grate, Char-Baskets, hinged
cooking grate and lid.
Place charcoal grate on bottom supports in bowl. Set
Char-Baskets on charcoal grate, cooking grate on top
supports, and lid on bowl. Figure 11.
Figure 10
Step 9
Install ash catcher, storage tray & bottom rack
You will need: ash catcher, storage tray and bottom
rack.
Align handle and prongs of ash catcher with their
appropriate slots on the ring. The handle fits into the
larger slot. Figure 10 (a).
Lift ash catcher up into slots and rotate to the right. Ash
catcher will fit securely into place. Figure 10 (b).
Set storage tray in place between frame braces in front
of the CharBin. Figure 10.
Slide bottom rack into position between bottom
connectors. Figure 10.
Storage tray
(a) (b)
