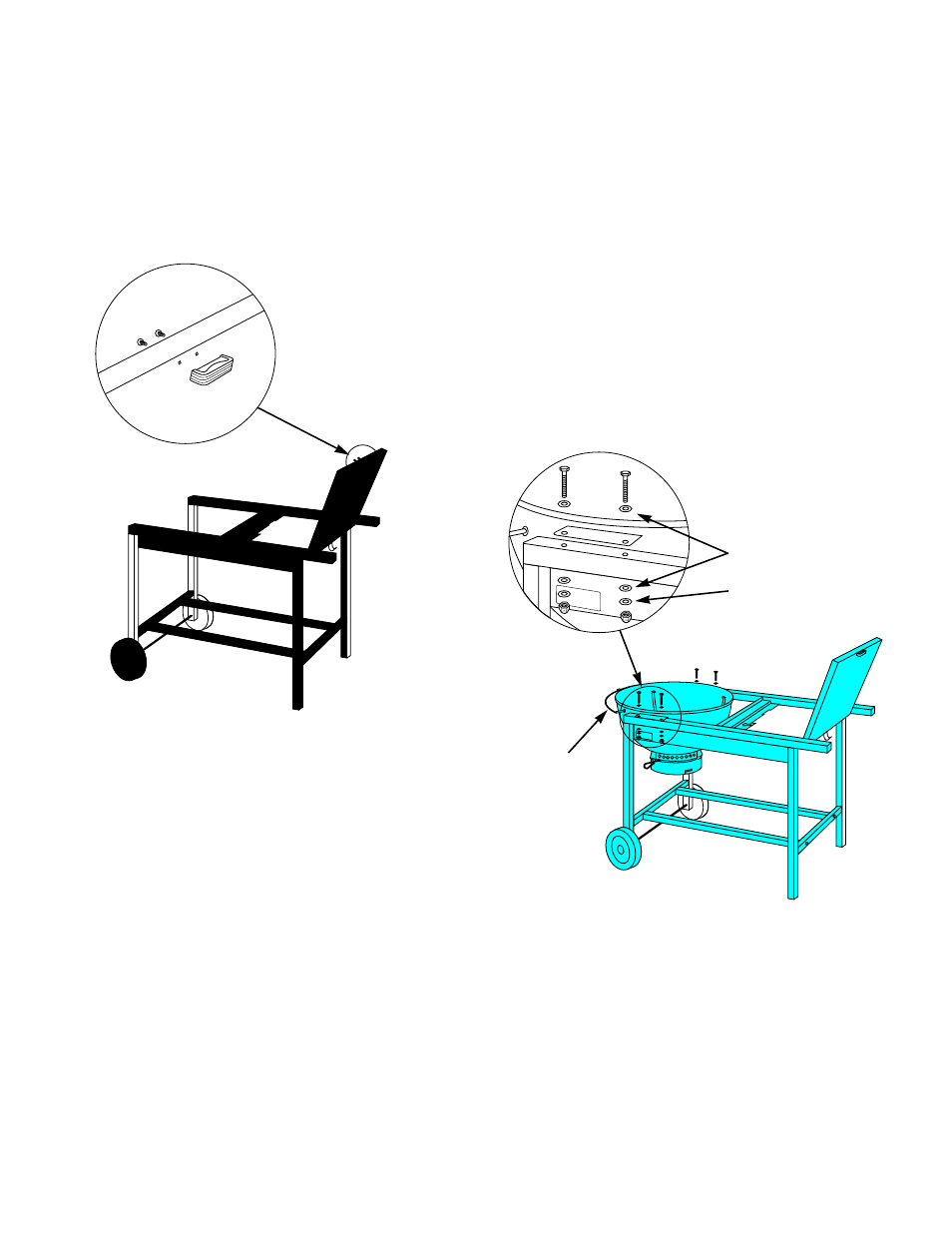

Figure 6
Step 6
Install CharBin lid handle
You will need: CharBin lid handle, two 5/8 inch screws
and a Phillips screwdriver.
Remove twist tie and protective plastic covering
from CharBin lid. Lift open lid. Insert screws through
holes from inside of lid into handle. Tighten screws.
Figure 6.
Figure 7
Step 7
Install bowl assembly
You will need: bowl assembly, four 1 3/4 inch bolts,
eight nylon washers, four aluminum washers, four acorn
nuts, 7/16 wrench and pliers.
Set bowl assembly in open end of frame with lid holder
to the outside, and align mounting brackets over holes
in frame. Figure 7.
Slip a nylon washer on a bolt and insert bolt through
bowl mounting bracket and frame. Place a nylon washer
then an aluminum washer and acorn nut on end of bolt.
Figure 7.
Repeat for the other three bolts. Do not tighten until all
four bolts are correctly in place.
CAUTION: Do not overtighten the bolts.
Overtightening can fracture the porcelain.
Lid holder
Nylon washers
Aluminum washer
