Weil-McLain WCR - Manual

Part No. 550-142-029/0508

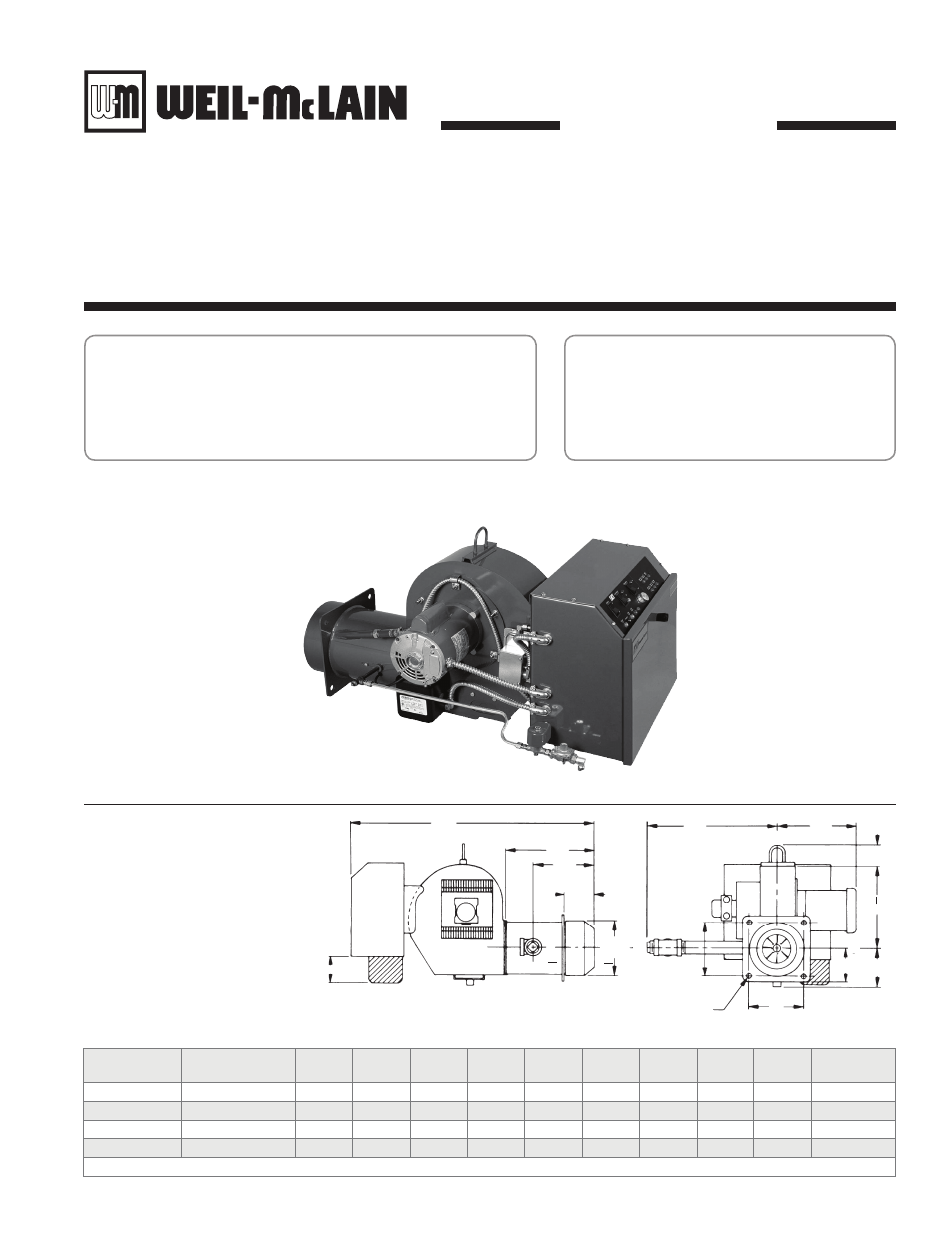

Burner Specification
& Data Sheet
Water & Steam Boilers – Series 2
88
Burner
Model Number
A B(R) C(R) D E F* G H I S X
Approximate
Weight
WCR1 34.13 5.56 14.50 4.63 12.25 20.00 3.25 7.25 7.38 12.63 7.25 175-200
WCR2 39.13 6.13 14.00 5.25 14.00 20.00 4.00 8.75 8.50 13.38 8.50 220-300
WCR3 44.00 7.00 15.25 6.00 16.00 22.38 5.00 10.13 11.50 15.50 10.00 360-400
WCR4 50.00 7.31 17.69 7.00 18.50 28.00 6.00 12.13 14.25 19.13 12.00 500-550
* Required for installation of standard control components
Model WCR Figure 1
4.00
A
S
I
H
G
F
X
5/8 Dia., 4 holes X
E
3.13
Note: Add .38 to “H” dim for size of opening in boiler front plate.
D
C(R)
B(R)
CL
CL CL
Power Flame
Gas/Oil Burners
Model WCR
For Gas, Light Oil, & Gas/Light Oil – Fired Burners
