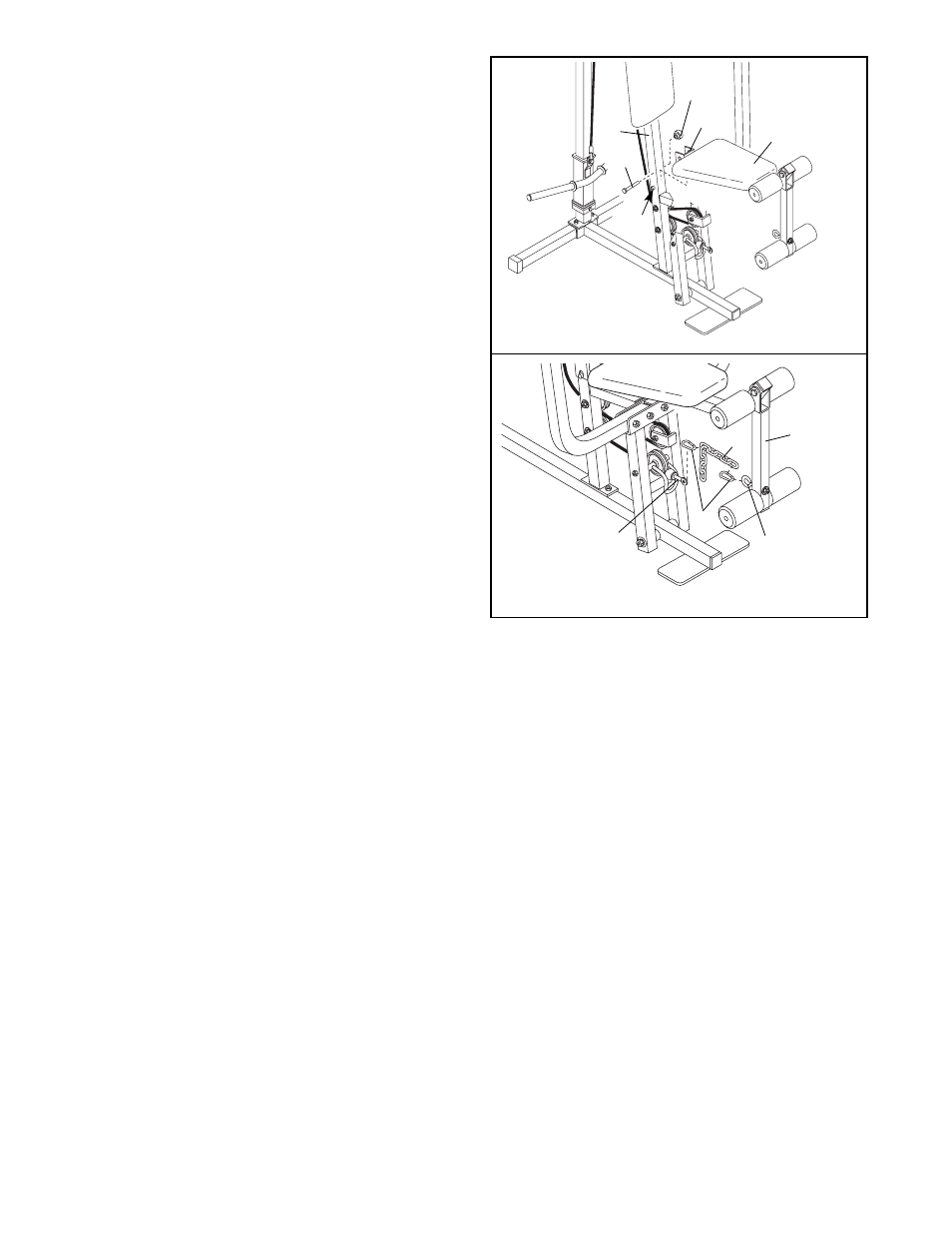

ATTACHING AND REMOVING THE SEAT

Set the bracket on the Seat Frame (36) onto the pin
on the Front Upright (42). Attach the Seat Frame to
the Front Upright with the M8 x 67mm Carriage Bolt
(14) and the Seat Knob (40).

For some exercises, the Seat (13) must be removed.
First, be sure that the chain is not attached to the leg
lever. Next, remove the Seat Knob (40) and the M8 x
67mm Carriage Bolt (14) from the Seat Frame (36).
Lift the Seat Frame off the Front Upright (42).

ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION

To use the Leg Lever (29), the seat must be attached
to the front upright (see ATTACHING AND REMOV-
ING THE SEAT above).

Attach one end of the Chain (52) to the M10 x 63mm
Eyebolt (35) with a Cable Clip (53). Attach the other
end of the Chain to the Short Cable (23) with a Cable
Clip.

Note: Be sure the Eyebolt is positioned verti-

cally on the Leg Lever.
