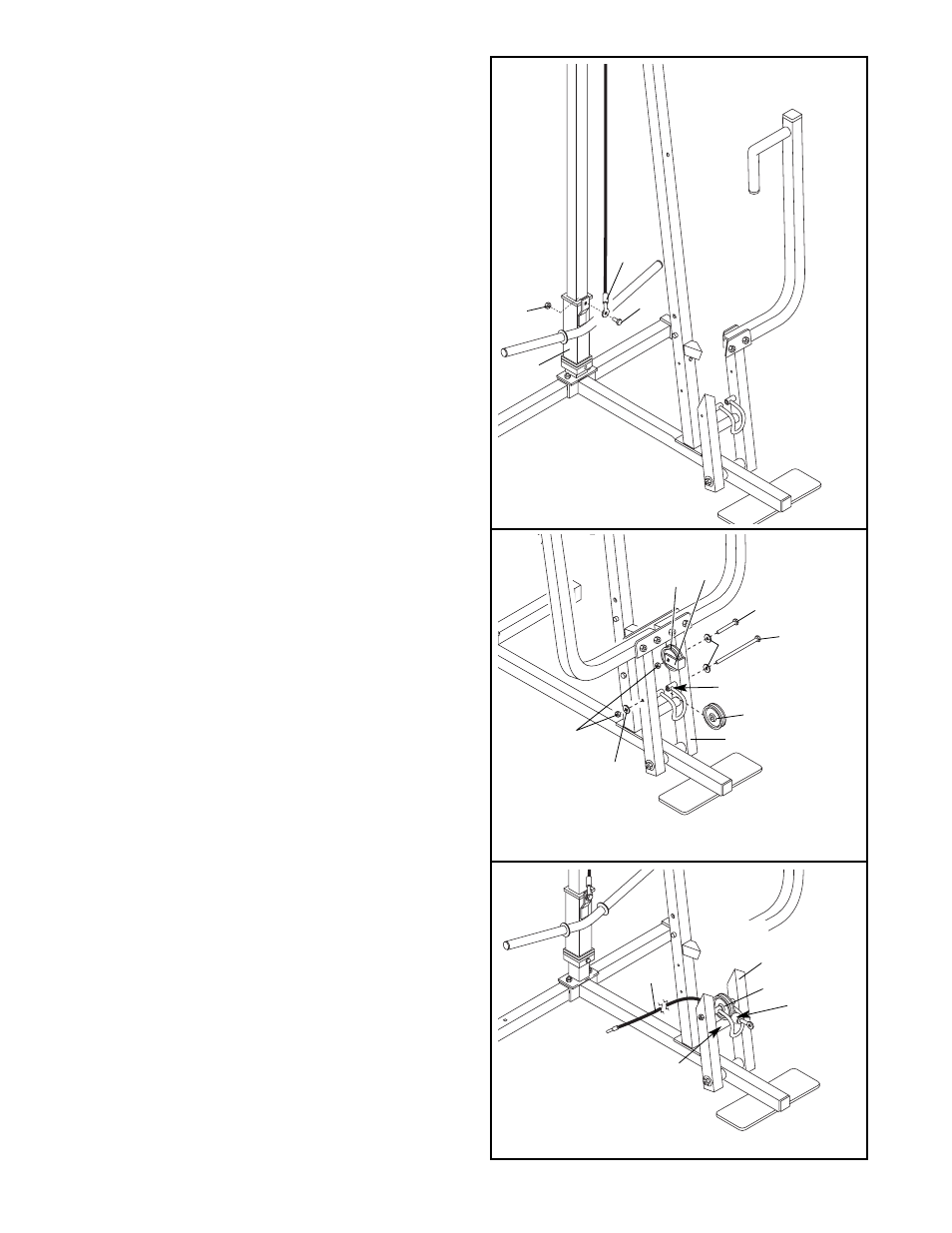

16. Attach the Long Cable (58) to the Weight
Carriage (19) with an M10 x 20mm Bolt (69) and
an M10 Nylon Locknut (21).
17. Attach a 90mm Pulley (15) and a Cable Trap (66)
to the upper hole in the Press Frame (17) with an
M10 x 80mm Bolt (25), an M10 Washer (9), and
an M10 Nylon Locknut (21).
Make sure that the
Cable Trap and the Pulley are oriented as
shown. Do not tighten the Nylon Locknut yet.
Hold a 90mm Pulley (15) inside the bracket on
the Press Frame (17). Attach the Pulley to the
Press Frame with an M10 x 198mm Bolt (59), two
M10 Washers (9), and an M10 Nylon Locknut
(21).
18. Locate the Short Cable (23). Route the Short
Cable under the indicated 90mm Pulley (15) as
shown.
Be sure that the Cable is between the
Pulley and the crossbar on the Press Frame
(17).
