11

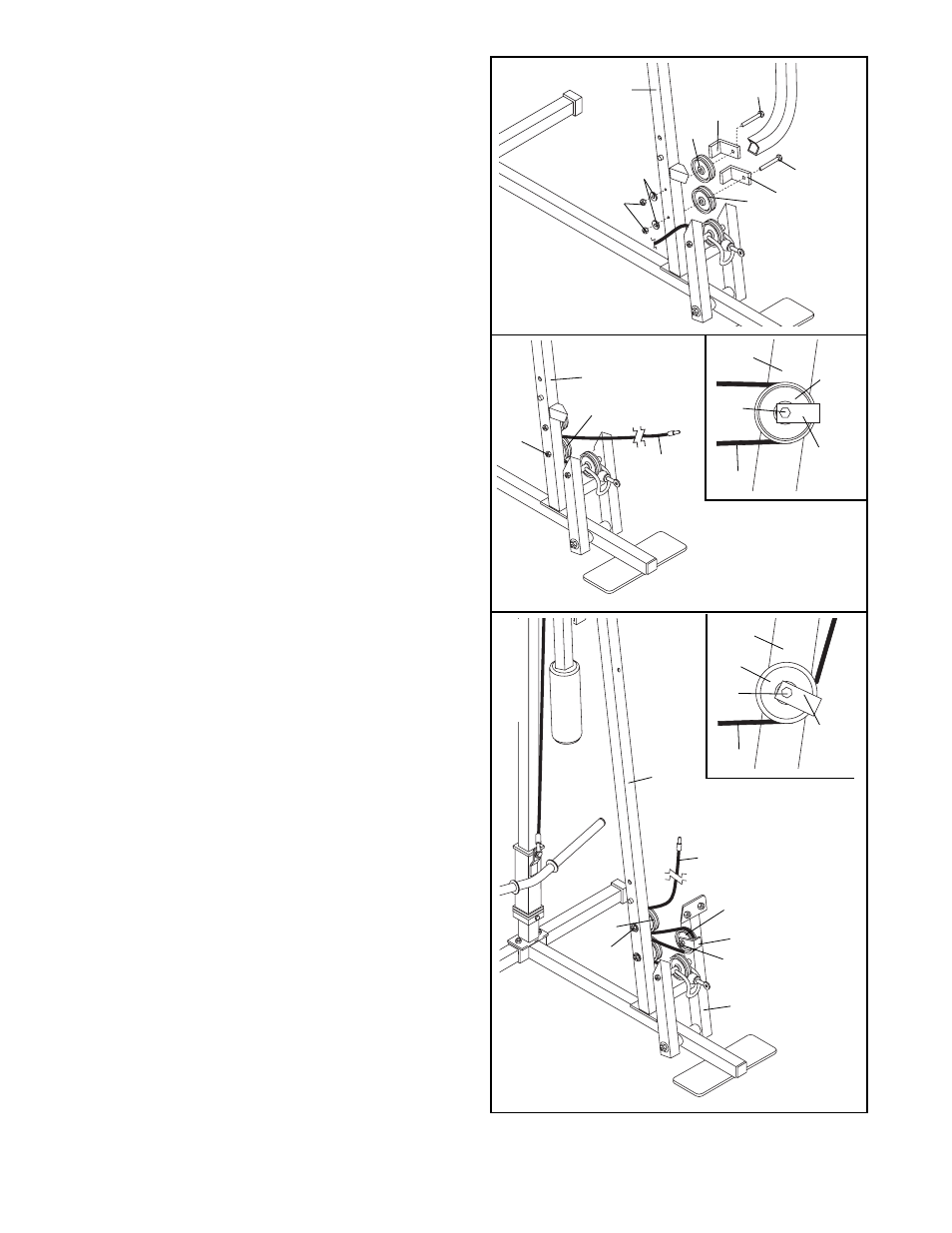

19. Slide two Cable Traps (66) and two 90mm
Pulleys (15) onto two M10 x 90mm Bolts (16).
Insert the Bolts into the Front Upright (42) from
the direction shown. Hand tighten an M10 Nylon
Locknut (21) with an M10 Washer (9) onto each
Bolt.
Be sure that all parts are oriented as
shown. Do not tighten the Nylon Locknuts yet.
20. Route the Short Cable (23) around the 90mm
Pulley (15) attached to the lower hole in the Front
Upright (42).
See the inset drawing. Be sure
that the Cable Trap (66) is turned to hold the
Cable in place. Properly tighten the M10 Nylon
Locknut (21) and the M10 x 90mm Bolt (16).
21. Route the Short Cable (23) around the 90mm
Pulley (15) attached to the upper hole in the
Press Frame (17).
Be sure that the Cable Trap
(66) is turned to hold the Cable in place.
Properly tighten the M10 Nylon Locknut (21)
Route the Short Cable (23) around the 90mm
Pulley (15) attached to the upper hole in the Front
Upright (42).
Refer to the inset drawing. Be
sure that the Cable Trap (66) is turned to hold
the Cable in place. Properly tighten the M10
Nylon Locknut (21) and the M10 x 90mm Bolt
(16).
21
23
42
15
15
66
21
21
17
20
23
21
42
15 16
23
Inset shows view
from other side
42
66
15
23
Inset shows view
from other side
42
66
15
16
19
21 15
15
16
16 9
42
66
66
