Weider Pro 4950 831.14623.0 - Manual (Page 26)

26
63 110
104
104
77 77
84 84
102
102
104
104
110
110
147
23
21
21
23
18
148
110

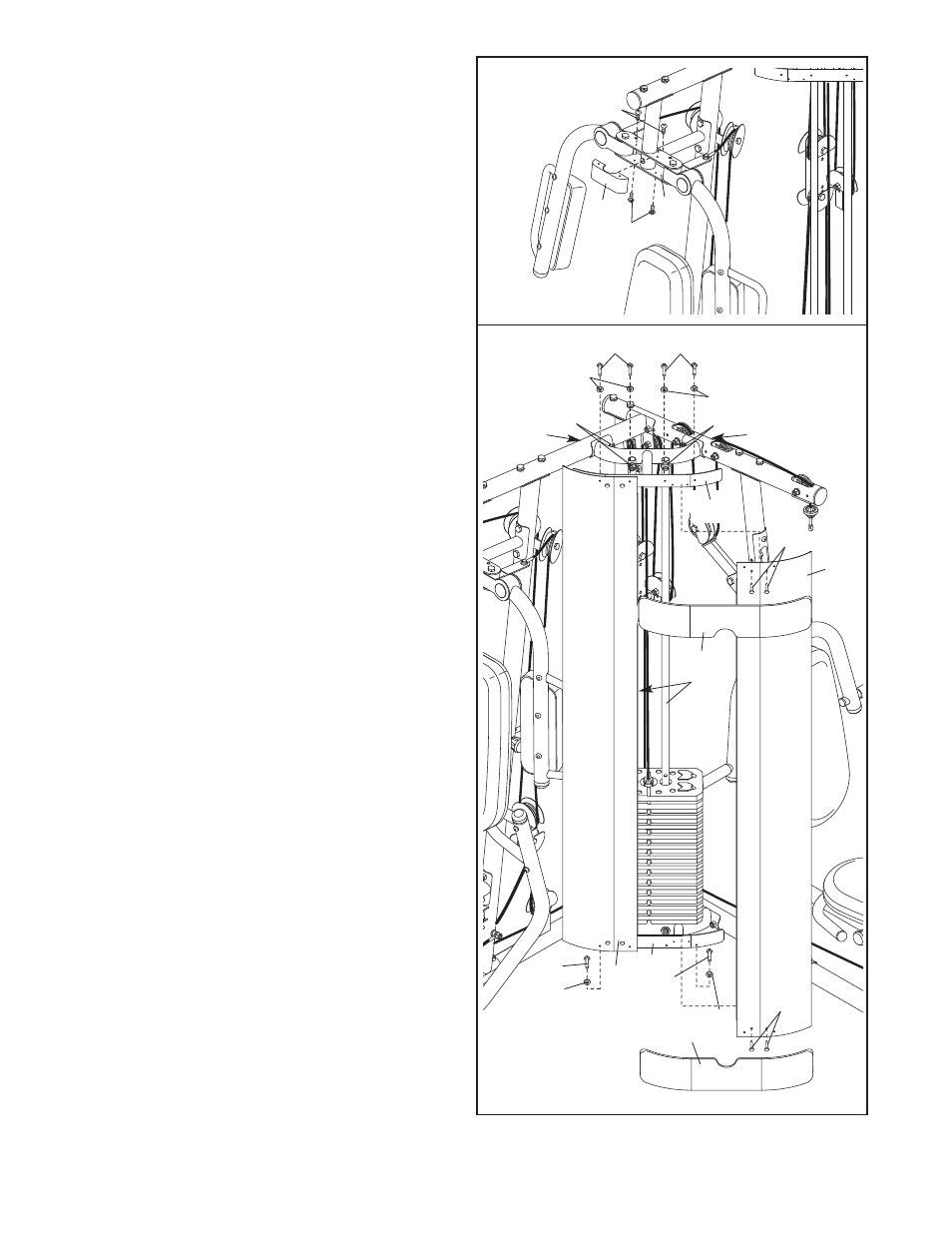

63. Attach a Shroud (21) to the Top Center Frame
and Bottom Center Base (148, 147) with four
M4 x 12mm Self-tapping Screws (102).
Note: It
may be necessary to loosen the M10 Nylon
Locknuts (77) and the two indicated M10 x
82mm Bolts (84) securing the Top Center
Frame and the Weight Guides (18).
Attach the other Shroud (21) in the same
manner.
Attach the Shroud Covers (23) to the Shrouds
(21) with six M4 x 16mm Self-tapping Screws
(110) and six M4 Washers (104).
Tighten any
M10 Nylon Locknuts (77) and M10 x 82mm
Bolts (84) that were loosened.
62. Attach the Butterfly Cover (30) to the Butterfly
Frame (5) with four M4 x 12mm Self-tapping
Screws (102).
62
30 5
102
102
