Weider Pro 4950 831.14623.0 - Manual (Page 20)

20

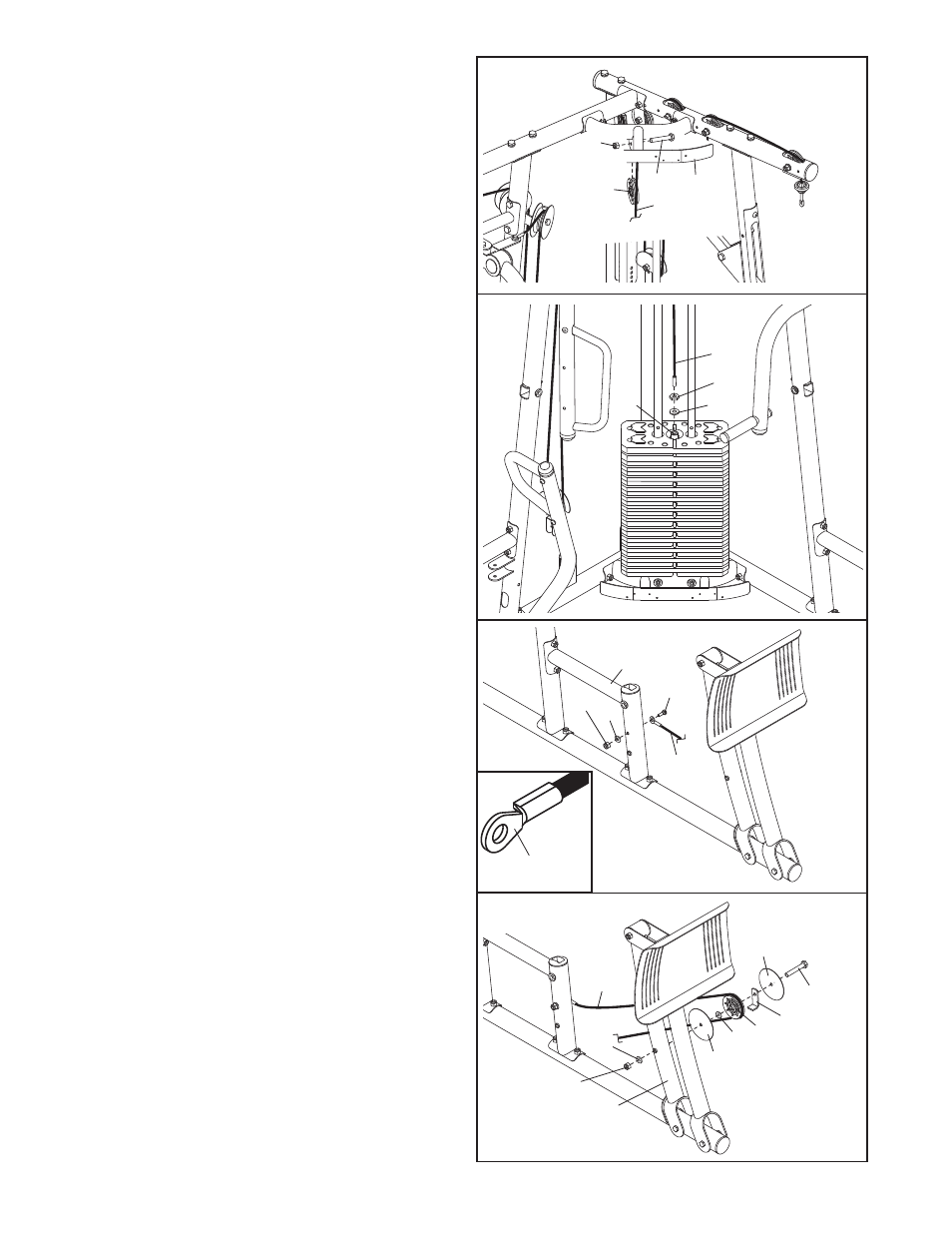

38. Wrap the Lat Cable (49) over a 90mm Pulley
(48). Attach the Pulley to the Top Center Frame
(148) wtih an M10 x 45mm Bolt (86) and an
M10 Nylon Locknut (77).
38
77
48
49
86 148
39. Set an M12 Large Washer (98) on top of the
Weight Tube (20). Thread the M12 Nut (112) all
the way onto the Lat Cable (49).
Thread the Lat Cable (49) into the Weight Tube
(20)
two turns. Tighten the M12 Nut (112)
against the M12 Large Washer (98).
39
49
98 20
112
40. Identify the Press Cable (133). Attach the
Cable to the Left Frame (122) with an M10 x
82mm Bolt (84), an M10 Washer (80), and an
M10 Nylon Locknut (77).
Make sure the flat
edge of the Cable is against the Left Frame.
41. Wrap the Press Cable (133) over a 90mm
Pulley (48). Attach the Pulley and a Cable Trap
(56) to the Leg Press Frame (123) with an M10
x 110mm Bolt (93), two Guards (54), two M10
Washers (80), and an M10 Nylon Locknut (77).
Make sure the Cable Trap is oriented as
shown.
40
84
133
122
80
77
41
54
93
77
123
54
80
48
56
133
80
Flat Edge
