8

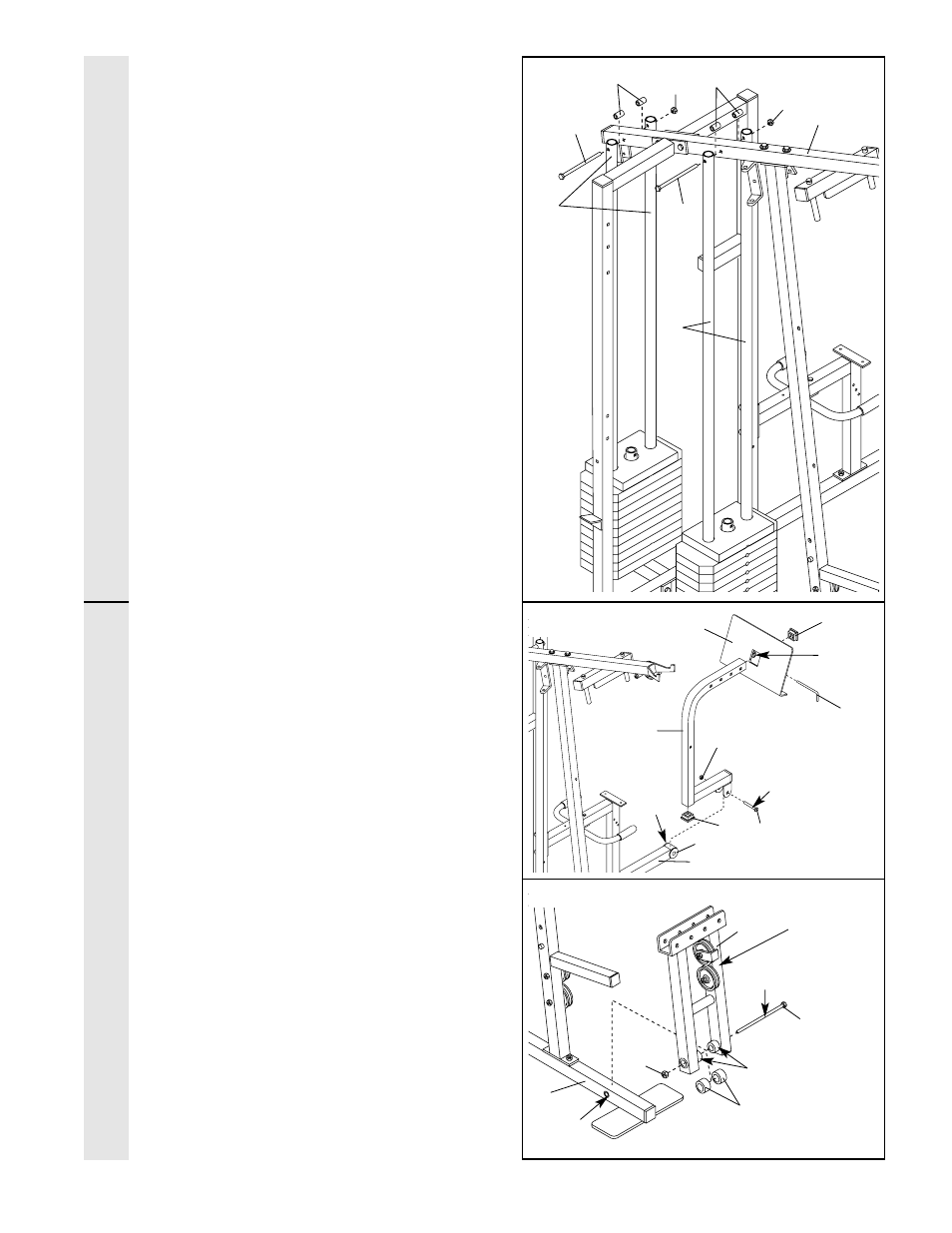

9. Attach the upper ends of the Short Weight
Guides (73) to the Top Frame (55) with a 5/16”
x 6” Bolt (60), two 1/2” x 3/4” Spacers (61), and
a 5/16” Nylon Locknut (3).
Attach the upper ends of the Long Weight
Guides (62) to the Top Frame (55) in the same
manner.
10. Locate and open the parts bag labeled
“ARM ASSEMBLY.”
Make sure there is a Bushing (98) in each side
of the Stabilizer (5). Press a 2” Square Inner
Cap (27) into each end of the Leg Press Arm
(96).
Lubricate a 3/8” x 3 1/4” Bolt (67). Attach the
Leg Press Arm (96) to the Stabilizer (5) with the
Bolt and a 3/8” Nylon Locknut (21). Do not over-
tighten the Nylon Locknut; the Leg Press
Arm must be able to pivot freely.
Align the welded tubes on the Leg Press Plate
(95) with a set of holes in the Leg Press Arm
(96). Attach the Leg Press Plate to the Leg
Press Arm with the Press Pin (97).
11. Press a 1” x 7/8” Plastic Bushing (90) onto
each welded spacer on the Press Frame (17).
Slide the Press Frame into place onto the Base
(4). Note: This will be a tight fit; the Plastic
Bushings should fit snuggley over the ends
of the indicated tube in the Base. Make sure
that the pulleys are on the side shown.
Lubricate the 3/8” x 8” Bolt (59). Attach the
Press Frame (17) to the Base (4) with the Bolt
and a 3/8” Nylon Locknut (21).
11
17
Pulleys
must be on
this side
Lubricate
Welded Spacers
21
4
Tube
90
59
9
10
FRAME
ASSEMBL
Y
ARM
ASSEMBL
Y
61 61
3
3
60
73
62
55
27
Welded
Tube
27
67
96
21
Lubricate
97
5
98
98
95
60
