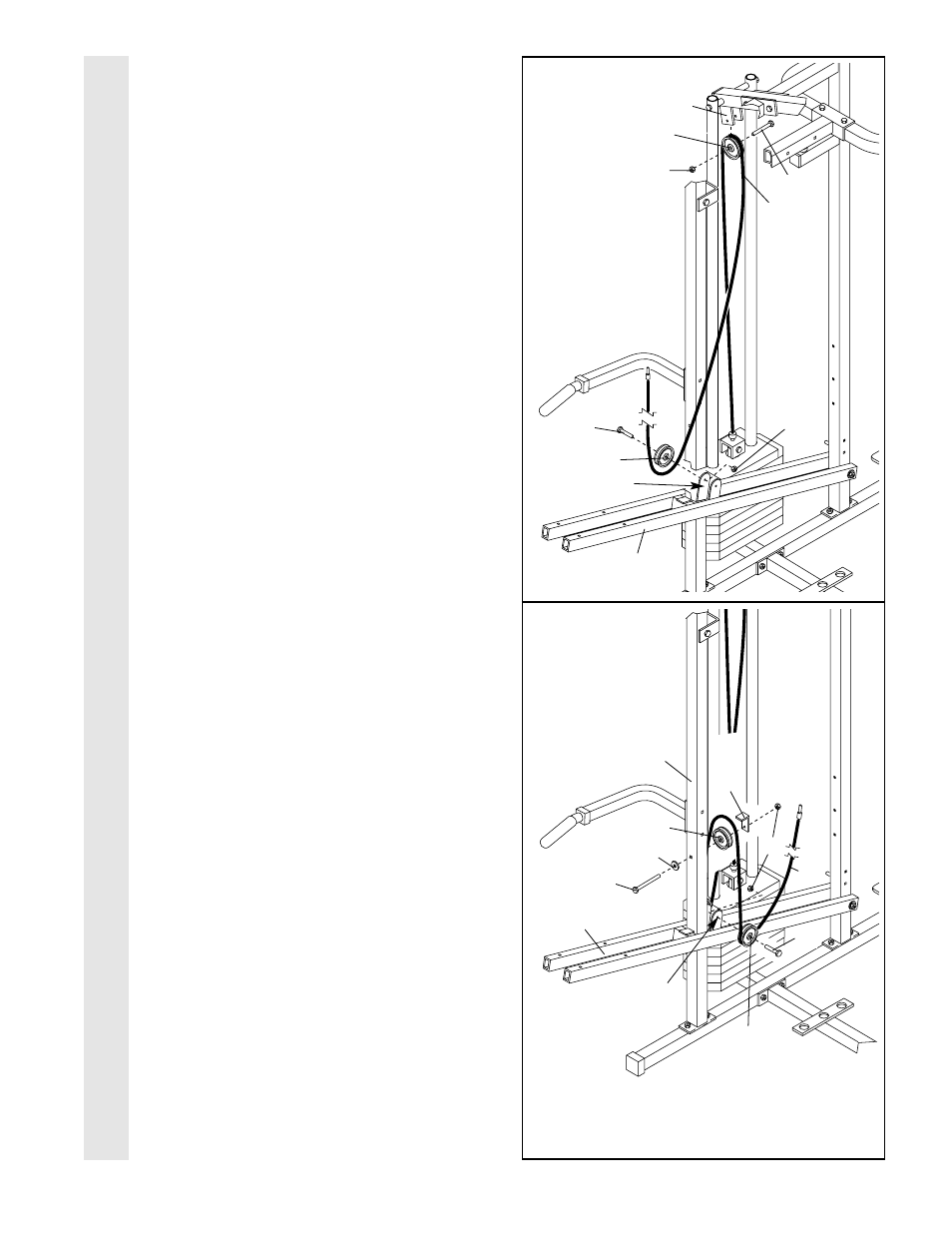

34. Wrap the Military Press Cable (72) around a
“V”-Pulley (50). Attach the Pulley to the Top
Frame (55) with a 3/8” x 2 1/2” Bolt (86) and a
3/8” Nylon Locknut (21).
Wrap the Military Press Cable (72) around a
3 1/2” Pulley (15). Attach the Pulley to the
indicated bracket on the Assist Arm (105) with
a 3/8” x 1 3/4” Bolt (76) and a 3/8” Nylon
Locknut (21). Be sure that the Cable is
between the Pulley and the Assist Arm and
that the Cable and Pulley move smoothly.
35. Wrap the Military Press Cable (72) around a
“V”-Pulley (50). Attach the Pulley and a Long
Cable Trap (31) to the Assist Upright (74) with
a 3/8” x 4 1/2” Bolt (112), a 3/8” Washer (9),
and a 3/8” Nylon Locknut (21). Be sure that
the Long Cable Trap is turned to hold the
Cable in place and that the Cable is routed
around the Pulley as shown.
Wrap the Military Press Cable (72) around a
3 1/2” Pulley (15). Attach the Pulley to the
other bracket on the Assist Arm (105) with a
3/8” x 1 3/4” Bolt (76) and a 3/8” Nylon
Locknut (21). Be sure that the Cable is
between the Pulley and the Assist Arm and
that the Cable and Pulley move smoothly.
