10

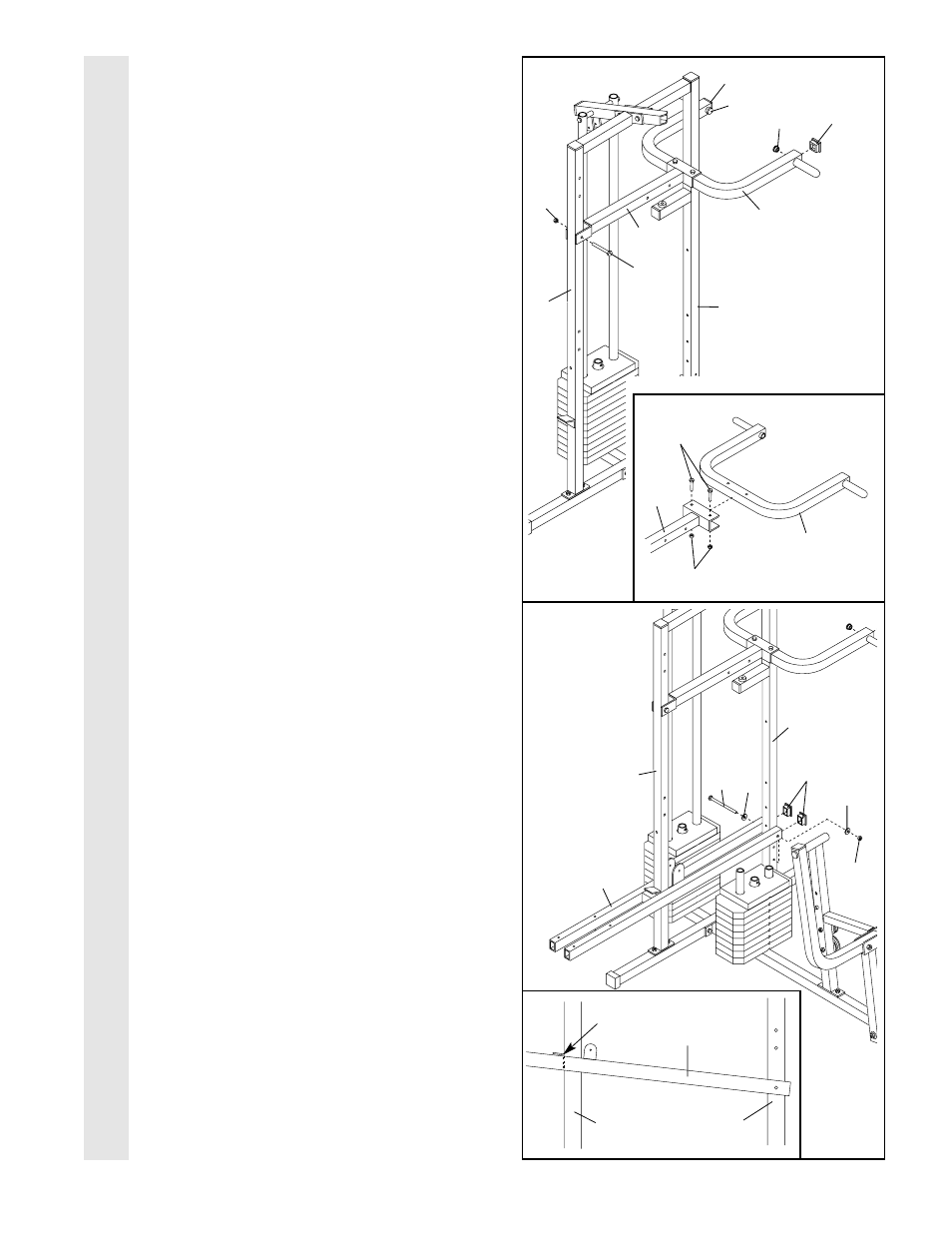

15. See the inset drawing. Attach the Military
Press Arm (84) to the Pivot Arm (101) with
two 5/16” x 2 1/4” Bolts (33) and two 5/16”
Nylon Locknuts (3).
Press two 1 1/2” Square Inner Caps (32) into
the Military Press Arm (84). Press two 1”
Round Inner Caps (49) into the Military Press
Arm.
Attach the Pivot Arm (101) to the Assist
Upright (74) with a 3/8” x 3 1/4” Bolt (67) and
a 3/8” Nylon Locknut (21).
16. Press two 1” x 2” Inner Caps (107) into the
Assist Arm (105).
Attach the Assist Arm (105) to the Leg Press
Upright (56) with a 3/8” x 6” Bolt (106), two
3/8” Washers (9), and a 3/8” Nylon Locknut
(21). See the inset drawing. The Assist
Arm must be attached to the lowest hole in
the Leg Press Upright (56). The Assist Arm
must also be below the welded bracket on
the Assist Upright (74).
15
49
49
32
84
84
101
101
21
67
56 74
33
3
ARM
ASSEMBL
Y
32
16
107
106
105
105
Bracket
56
56
21
9
9
74
74
