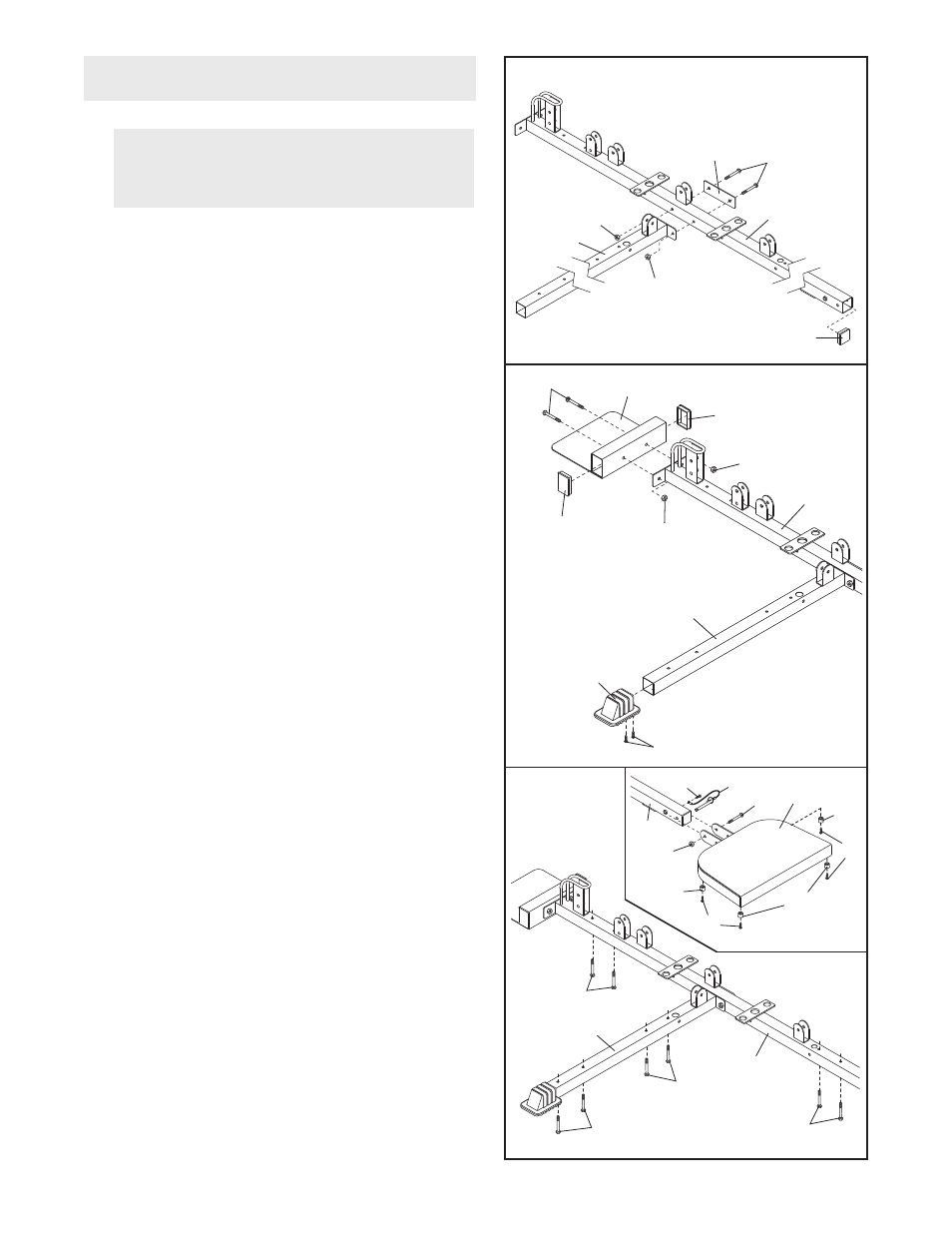

1.

Locate and open the parts bags labeled “FRAME
ASSEMBLY 1” and “FRAME ASSEMBLY 2.”

Press a 2” Square Inner Cap (105) into the open
end of the Long Base (120).

Attach the Short Base (2) to the Long Base (120)
with two 5/16” x 2 3/4” Bolts (85), the Long Frame
Plate (71), and two 5/16” Nylon Locknuts (86).

Do

not tighten the Nylon Locknuts yet.

FRAME ASSEMBLY

6

Make sure that you understand all of the
information on page 5 before you begin
assembling the weight system.

1

85

86

105

120

71

2

86

2.

Attach the Outer Cap (24) to the Short Base (2)
with two #8 x 3/4” Screws (98).

Press two 2” x 3” Inner Caps (58) into the Foot
Plate (53). Attach the Foot Plate to the Long Base
(120) with two 5/16” x 2 1/2” Carriage Bolts (110)
and two 5/16” Nylon Locknuts (86).

3.

See the inset drawing. Attach the tether on the Pin
(112) to the Long Base (120) with a #10 x 1” Screw
(14).

See the inset drawing. Attach the four Knee Rest
Bumpers (123) to the Squat Knee Rest (41) with
four #10 x 1” Screws (14). Attach the Squat Knee
Rest to the Long Base (120) with a 3/8” x 3 1/4”
Bolt (96) and a 3/8” Nylon Locknut (87).

Do not

overtighten the Nylon Locknut; the Squat Knee
Rest must be able to pivot.

Insert eight 5/16” x 2 1/2” Carriage Bolts (110) up
through the Long Base (120) and the Short Base
(2) as shown.

Note: It may be helpful to place

tape over the heads of the Carriage Bolts to
hold them in place.
