Page 26

26

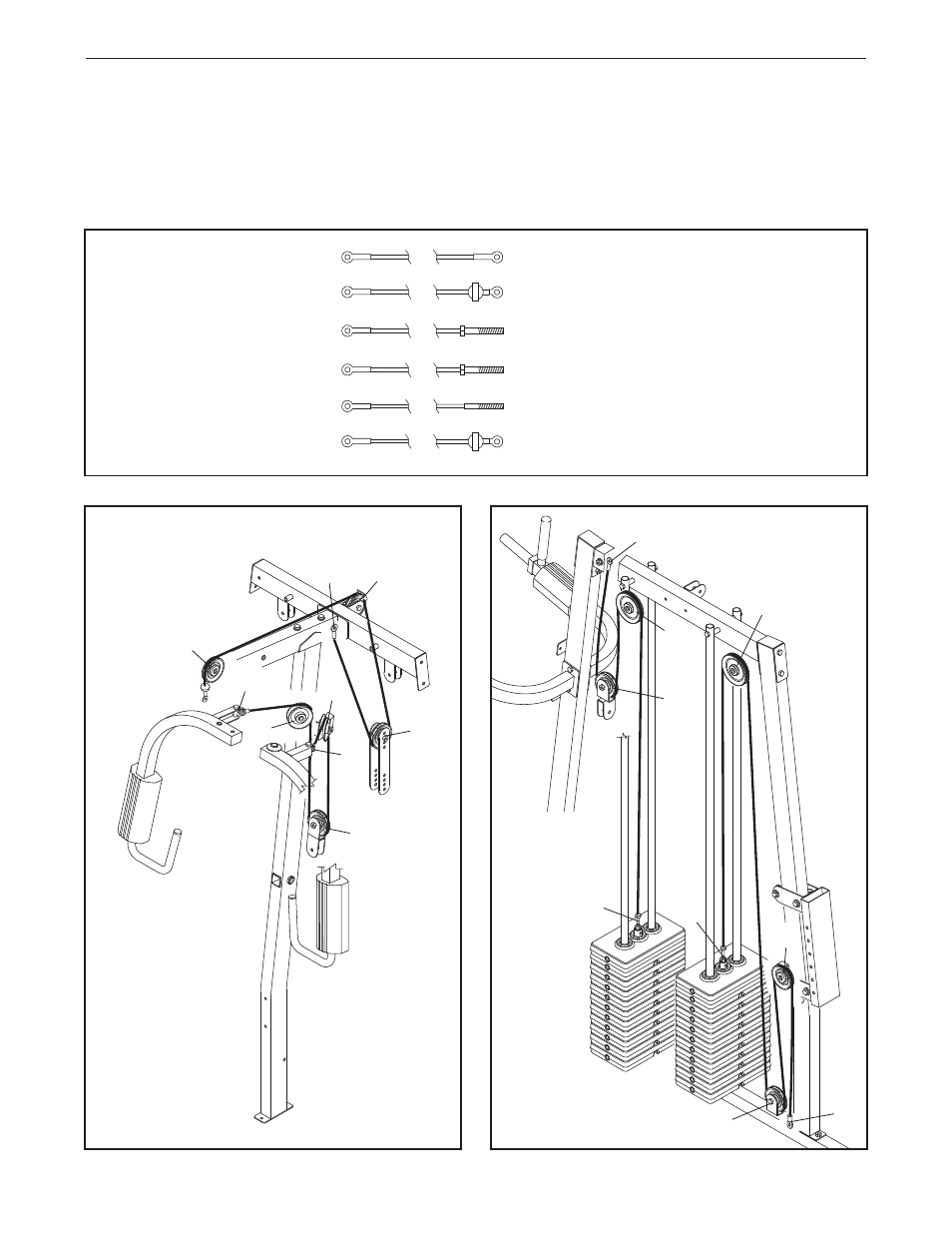

CABLE DIAGRAMS
The cable identification chart below shows the ends of each cable and the lengths of the cables. The cable dia-
grams on this page and the following page show the proper routing of the cables. The numbers in the diagrams
show the routes of the cables. Use the diagrams to make sure that the cables have been assembled correctly.
IMPORTANT: If the cables have not been correctly routed, the weight system will not function properly
and damage may occur.
Butterfly
Cable (69)
Lat Cable (88)
Squat Cable (73)
VKR High
Cable (74)
Butterfly Cable (69)—62 1/2”
VKR Low Cable (72)—259 1/2”
Squat Cable (73)—178”
VKR High Cable (74)—82 1/4”
Leg Lever Cable (75)—88”
Lat Cable (88)—89 1/4”
Cable Identification Chart
1
1
2
3
4
2
3
4
5
1
1
2
3
4
2
3
4
5
