TORQUE TUBE
PLUG MOTOR
INTO THE OPENER
POWER HEAD
SLIDE OPENER
POWER HEAD
LABEL
(LEFT SIDE)
TORQUE
TUBE
INSERT THIS END FROM LEFT SIDE OF
OPENER
Continue sliding the opener power head onto the torque
tube. Align the right hand bearing with the torque tube and
slide the opener power head completely onto the torque
tube until the torque tube exits the opener power head’s
right hand bearing. Continue sliding the opener power head
to the center of the torque tube and plug the motor into the
opener power head.
IMPORTANT! Right and left hand are always
determined from inside the garage looking out.

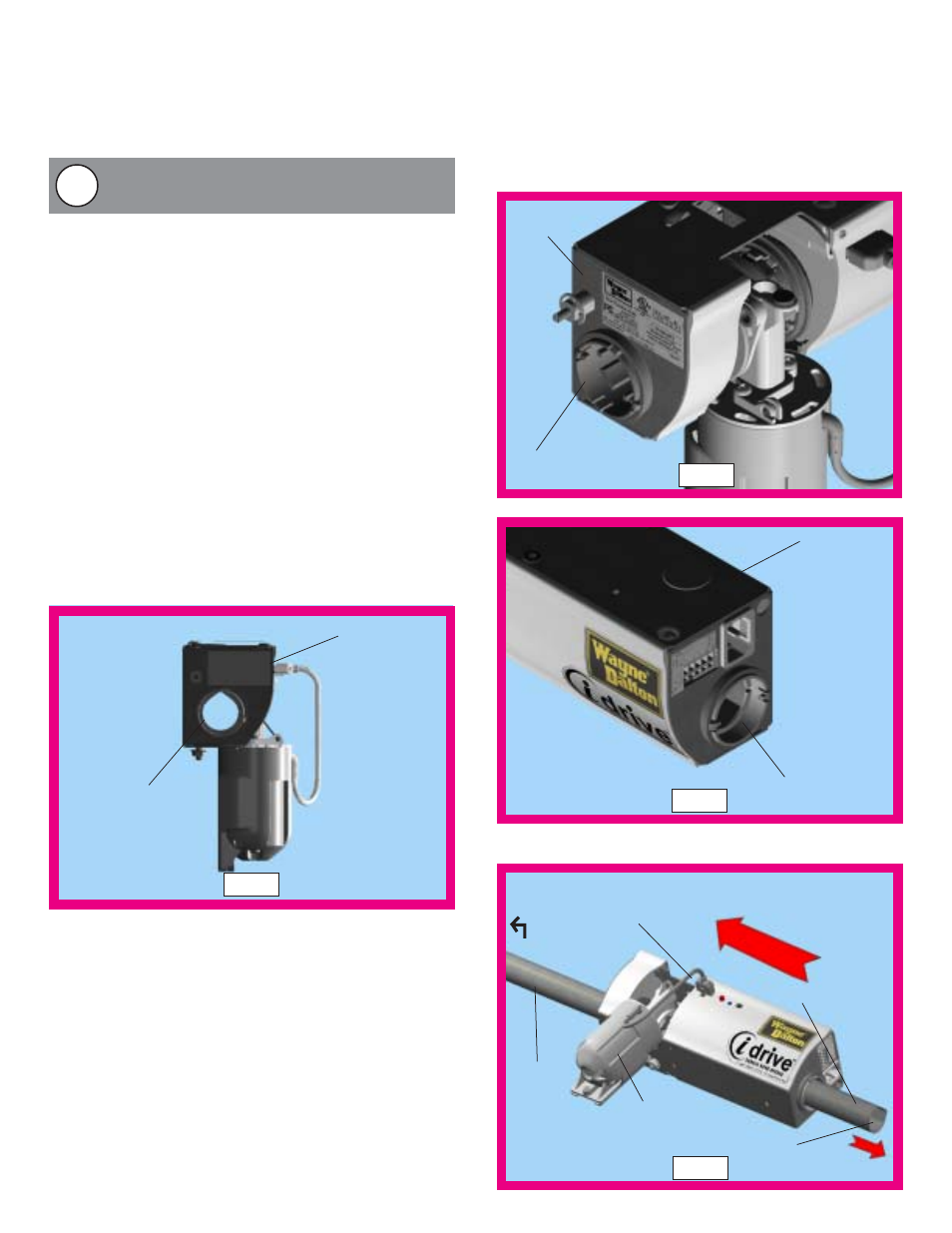

Power Head Assembly
Lay the torque tube on the floor (inside garage) in front
of the door with the labeled end to the left. NOTE:
Opener will not slide over a torque tube label.
Attempting to slide opener over the left end of the torque
tube can damage the internal electronics.
NOTE: Hold opener by the main body. Do NOT hold
by the motor.
Look into the opener’s left side to ensure the left hand bearing
and the internal (black) sleeve are aligned with the torque
tube profile. Once aligned, slide the opener power head
onto the right hand end of the torque tube. As the right end
of the torque tube enters the internal (black) sleeve, rotate
the opener back and forth slightly to help aid alignment.
NOTE: Do not force the opener onto the torque tube
if misalignment occurs.
OPENER POWER HEAD
TORQUE TUBE AND
BEARINGS PROFILES
ALIGNED
OPENER POWER
HEAD
LEFT HAND
BEARING
OPENER
POWER
HEAD
RIGHT HAND
BEARING
The idrive™ garage door opener is best installed in combination with the door installation steps. Refer to this
idrive™ installation insert when you reach Step 12 TorqueMaster™ installation, in the main door installation instructions and
owners manual. When instructed to slide the center bracket/bushing onto the torque tube, replace that step with the follow-
ing instructions below, which will provide the steps necessary to install the TorqueMaster™ system, as well as the preliminary
installation steps for the idrive™ garage door opener.
