11 Vidikron Vision Model 50 Owner’s Operating Manual
Overview
1. Connector Panel
See “Connector Panel” on page 14.
2. AC Power IN Socket
3. AC Power Switch
4. Built-in Control Panel
See “Built-in Control Panel” on
page 14.
5. Cable Access Door
Open to access connectors.
See “Connector Panel” on page 14.
6. Door Release Button
7. Cable Opening
Pass cables through this opening.
8. Lamp Module Cover
Remove this cover when replacing
the lamp. See “Lamp Replacement”
on page 47.
9. Front / Rear Adjusters
Adjusts the height or projection
angle.
10. Ceiling Mount Holes
The connecting holes for the ceiling
mount bracket.

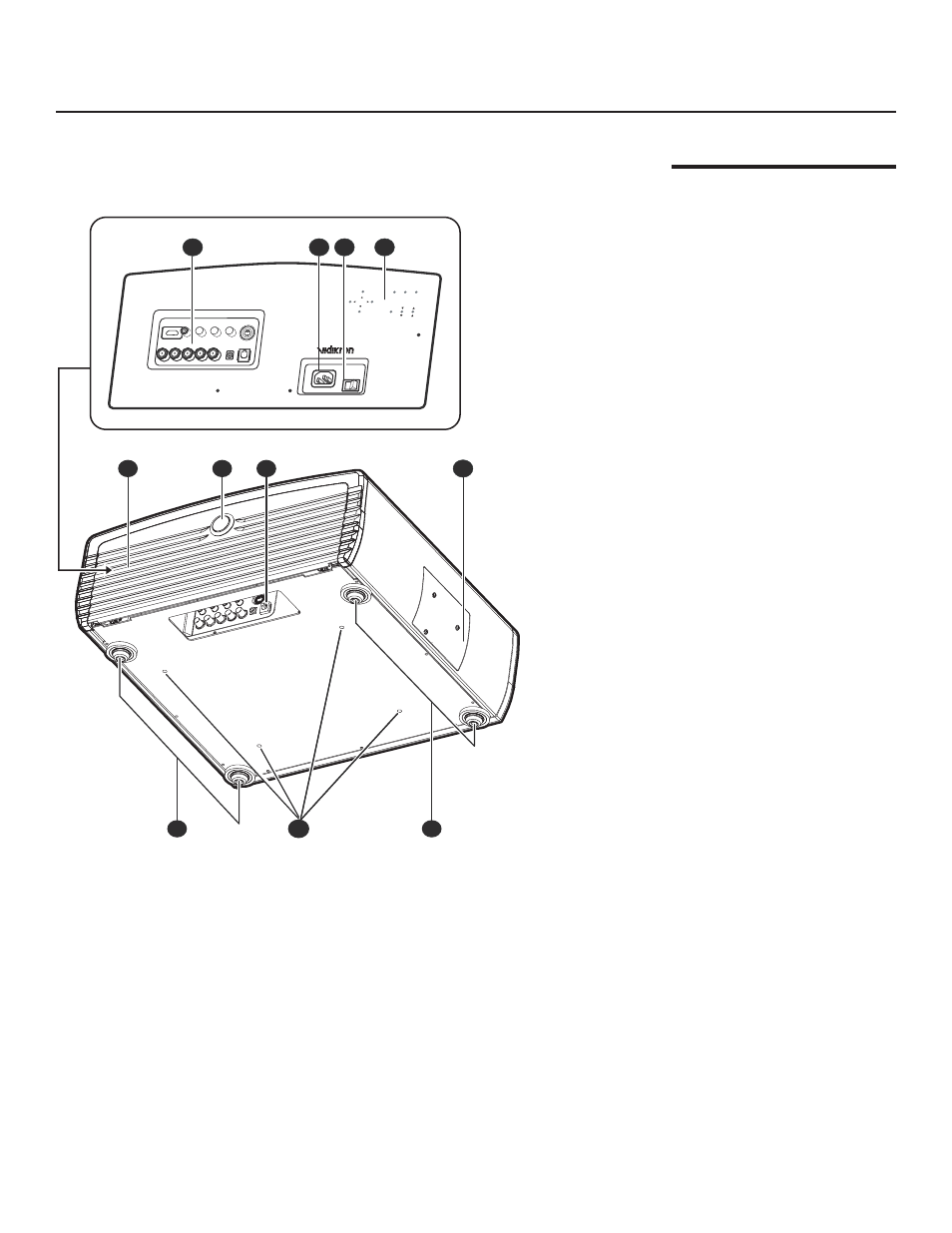

Rear / Bottom View
1 2 3 4
8 7 6 5
9 10 9
ZOOM+
ZO OM +
ZOOM-
ZO OM -
POWER
PO WE R
MEMORY
MEMOR Y
LENS SHIFT
LENS SH IFT
SOURCE /ENTER
SOURCE /ENTER
MENU /EXIT
MENU /EXIT
