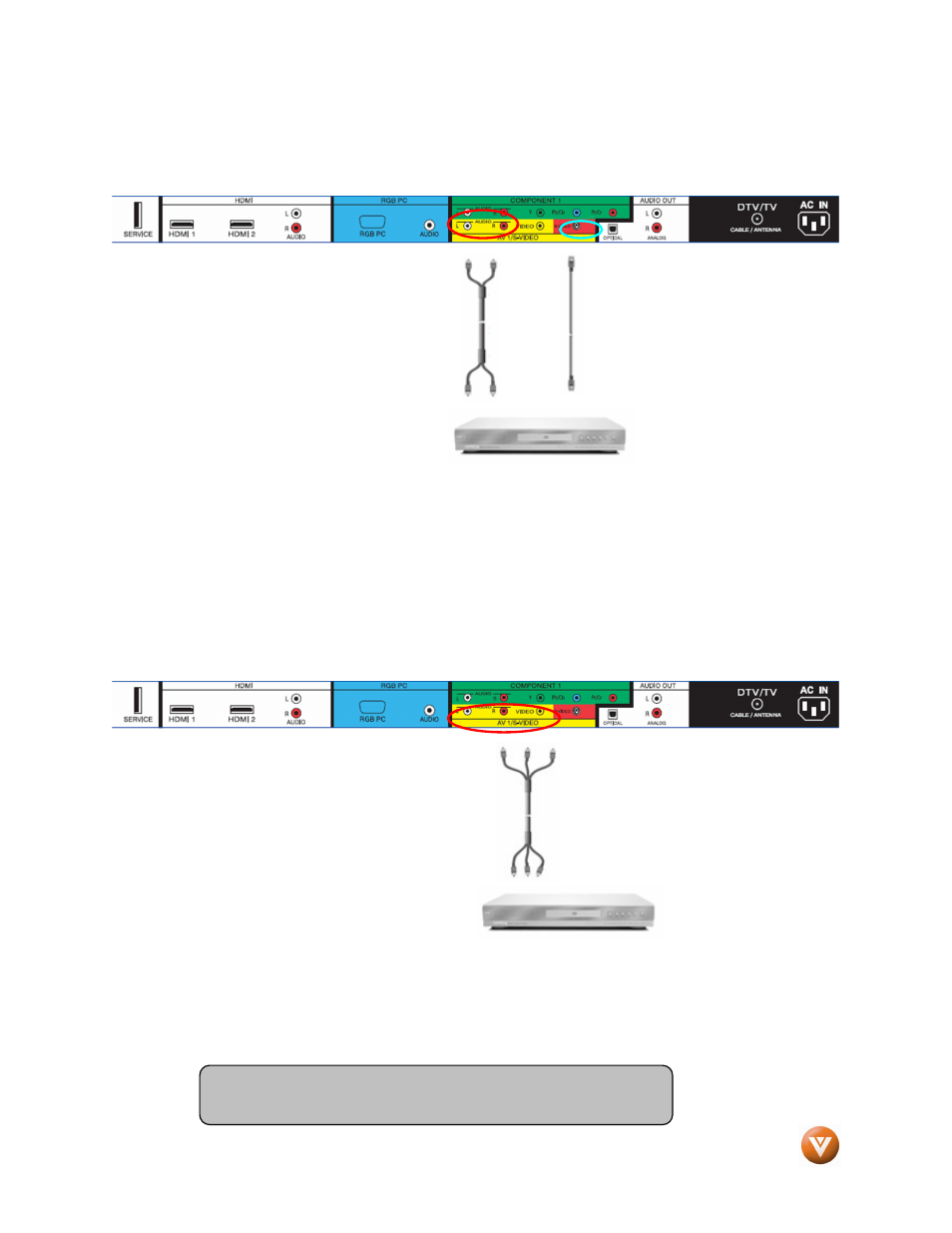

2.5.3

Using S

Using S-

-Video (AV1/S

Video (AV1/S

Video (AV1/S-

-VIDEO)

VIDEO)

Connecting

Connecting your DVD Player (Good):

your DVD Player (Good):

Turn off the power to the HDTV

and DVD player.

Connect the S-Video jack on the

rear of your DVD

player to the S-Video jack in the

AV1/S-VIDEO

input

(yellow/red area) at the rear of

the HDTV.

Connect an audio cable (white
and red connectors) to the audio
output connectors associated with
the S-Video output on your DVD
player and connect the other end to the audio connectors associated with the AV input
(yellow/red area) at the rear of the HDTV.

Turn on the power to the HDTV and DVD player.

Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.

2.5.4

Using Compos

Using Composite (AV) Video Input

ite (AV) Video Input

Connecting

Connecting your DVD Player (Good)

your DVD Player (Good)

your DVD Player (Good) ::::

Turn off the power to the HDTV and
DVD player.

Connect the Video (yellow color)
connector on your DVD player to the
Video (yellow color) connector in the
AV1/S-VIDEO input (yellow/red color
area - row of connectors furthest from
you when viewing from the rear of the
HDTV) at the rear of the HDTV.

Connect the R (red color) and L (white
color) audio connectors on your DVD player to the corresponding R (red color) and L (white
color) audio input connectors in the AV1 input (yellow/red color area - row of connectors
furthest from you when viewing from the rear of the TV) on the rear of the HDTV.

Turn on the power to the HDTV and DVD Player.

Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.

Note: Refer to your DVD player user manual for more
information about the video output requirements of the product.
