4 107031
VENT-FREE NATURAL GAS COMPACT FIREPLACE
VMH10TNB
®
ASSEMBLY
ASSEMBLING FIREPLACE
Tools Required:
• Phillips screwdriver
• 5/16" hex wrench
• slotted screwdriver
• scissors
Installing Log
1. Lift screen up and pull out to remove.
2. Cut two plastic straps to remove the log
from the firebox cavity.
3. An optional blower is available. See Ac-
cessories, page 27. Install optional
blower now. Follow installation instruc-
tions provided with blower.
4. Remove log packaging material and
discard packaging. Gently place log on
burner support (see Figure 3). The log
should fit flat against top of burner sup-
port and log locator tabs fit into the slots
under the log. Do not allow log to con-
tact flame. If flame contacts log, soot
will be created.
5. Reattach screen by placing the notches
in the screen frame over the shoulder
screws and pushing down.

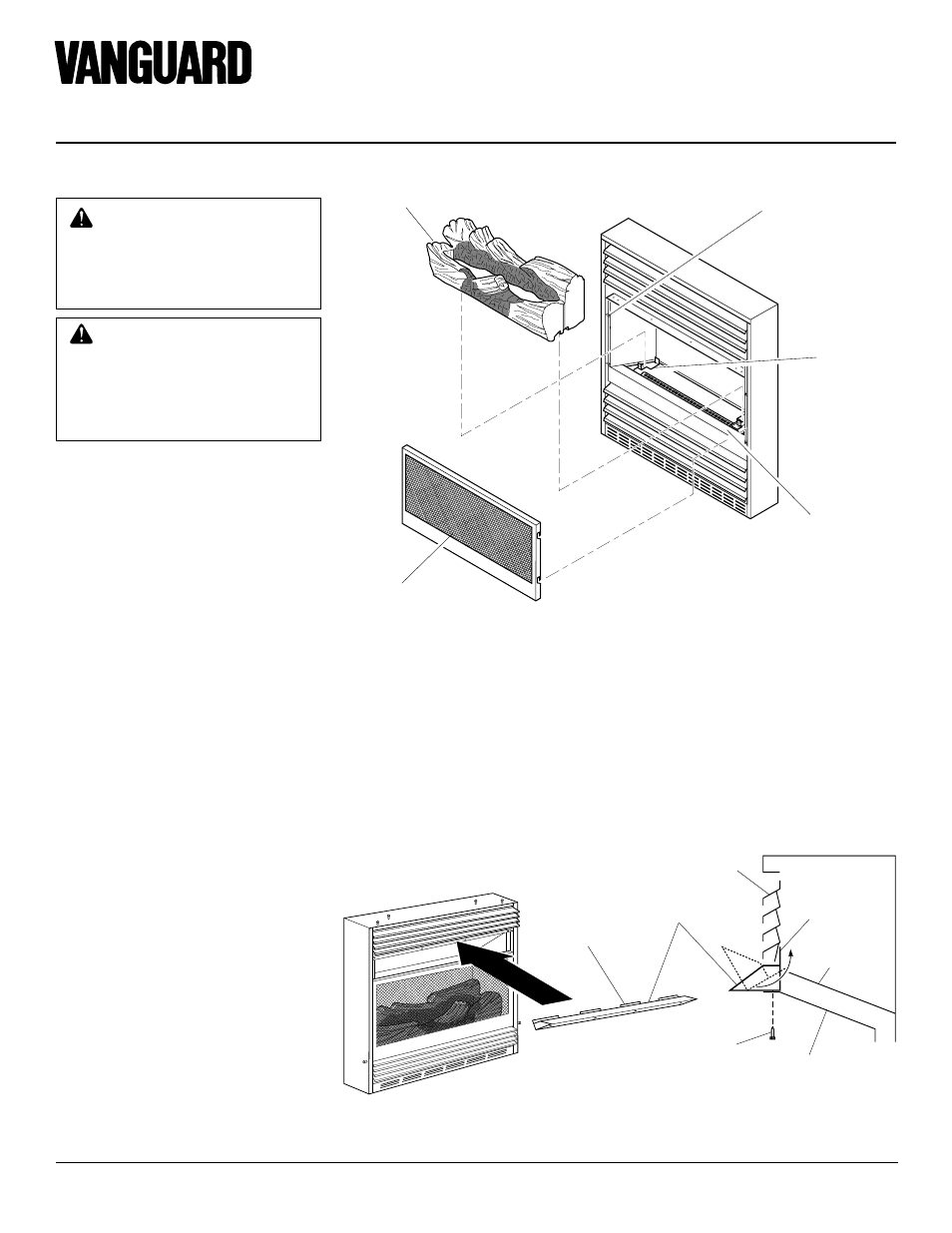

Figure 3 - Assembling Fireplace
WARNING: Always have
branch support and screen in
place before operating fireplace.
This prevents excessive tempera-
tures on fireplace surfaces.
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only
parts specifically approved with
this fireplace may result in prop-
erty damage or personal injury.
Assembling Hood
1. Locate four black phillips sheet metal
screws from the hardware packet.
2. Rotate hood as shown in Figure 4.
Make sure hood tabs point toward
fireplace.
3. Insert hood tabs between baffle and
louvers (see Figure 4).
4. Gently rotate hood to upright position.
Make sure hood tabs are behind lou-
vers and hood is resting on firebox top
(see Figure 4).
5. Align screw holes on hood with screw
holes on firebox top.
6. Insert screws as shown in Figure 4.
Tighten screws firmly.
Figure 4 - Assembling Hood
Hood Tab
Sheet Metal
Screws
Louver
Baffle
Firebox Top
Hood
Hood Tabs
Log
Screen
Burner
Support
With Log
Locator
Tabs
Branch
Support
Shoulder
Screw
