VENT-FREE NATURAL GAS COMPACT FIREPLACE
VMH10TNB
®
13" 16" 19" 21"
2 1/2"
6"
8"
10"
Note:
All vertical
measurements
are from top of
fireplace
opening to
bottom of
mantel shelf. All
measurements
are in inches.
OPTIONAL MANTEL
INSTALLATION
Note: Refer to instructions provided with
the mantel for assembly instructions. Refer
to instructions below for system installa-
tion. Refer to instructions on page 4 for
firebox assembly. Blower accessory should
be installed if it is being used (see Installing
Blower Accessory GA3400T, pages 11
through 13).
1. Unscrew four brass screws that attach
top louver to fireplace. Remove louver
from fireplace and set aside.
2. Place fireplace on wood base.
3. Place mantel around fireplace/base as-
sembly.
4. Assemble brass trim kit. See Assem-
bling Brass Trim, page 11.
5. Firmly snap brass trim kit on shoulder
screws. Shoulder screws are located on
fireplace cabinet (see Figure 13).
6. Align brass trim kit for flush fit around
opening.
7. Use two 3" wood screws provided and
attach fireplace base to wooden base
(see Figure 13).

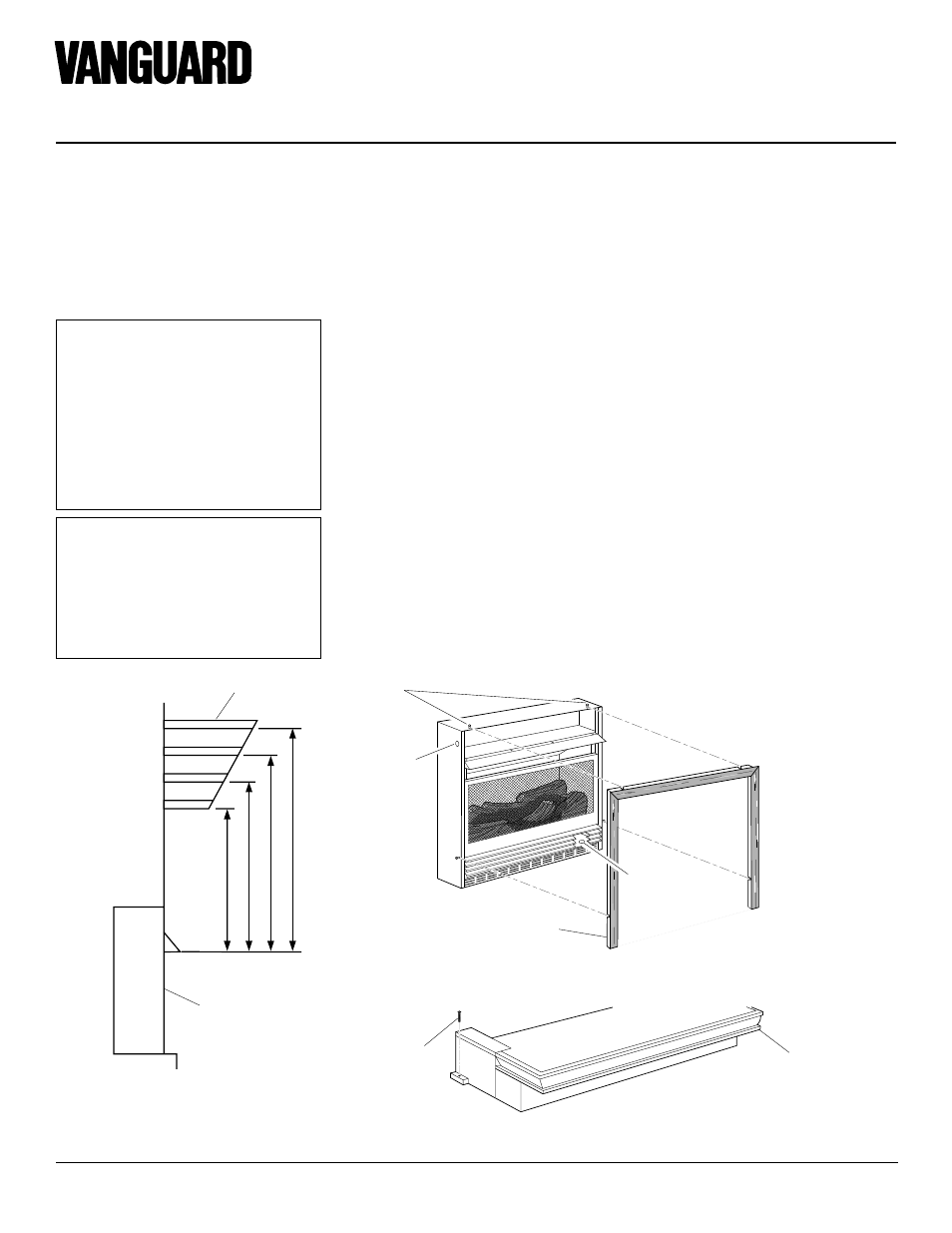

Figure 12 - Minimum Mantel Clearances
for Built-In Installation
Mantel Shelf
Side of
Firebox
8. Place assembly next to wall at installa-
tion location.
9. Remove brass trim kit and mantel. Be
careful not to damage wall or mantel.
10. Attach wood base to floor with two 1 3 /
4
"
black screws provided (see Figure 14). If
the floor is concrete use anchor method
(see Attaching Wood Base to Solid Floor,
page 14).
11. Install gas line. See Connecting To Gas
Supply, page 14.
12. Check for leaks. See Checking Gas
Connections, page 16.
13. Place mantel around fireplace. Be care-
ful not to damage wall or mantel.
14. Place brass trim kit on the shoulder
screws located on the side and top of
the fireplace. Firmly snap the brass trim
over the shoulder screws on fireplace
(see Figure 13).
15. Adjust assembly to remove any gaps.
Attach remaining two 3" wood screws
from hardware pack through openings
inside of fireplace sides into the man-
tel. The openings are located at top be-
hind the area for the brass louvers (see
Figure 13).
16. Reinstall top brass louvers.
INSTALLATION
Continued
Figure 13 - Attaching Brass Trim to Fireplace
Figure 14 - Attaching Wood Base to Floor
1 3 / 4 " Screw
Wood Base
Shoulder
Screws
Assembled
Brass Trim
Hole for 3"
Wood Screw
for Attaching
Fireplace to
Wooden Base
Hole for 3"
Wood Screw
for Attaching
Fireplace to
Mantel
Mantel Clearances for Built-In
Installation
If placing mantel above built-in fireplace,
you must meet minimum clearance between
mantel shelf and top of fireplace opening.
NOTICE: Surface temperatures of
adjacent walls and mantels be-
come hot during operation. Walls
and mantels above the firebox
may become hot to the touch. If
installed properly, these tempera-
tures meet the requirement of the
national product standard. Fol-
low all minimum clearances
shown in this manual.
NOTICE: If your installation does
not meet the minimum clearances
shown, you must do one of the
following:
• raise the mantel to an accept-
able height
• remove the mantel
