7-2. Connections
A. Connect 4-pin connector from TBM-11 (Terminal module) to P2 connection socket on the CCU-11B.
B. RM
1
terminals on TBM-11 are for the door remote control relay contacts and RM
2
terminals on TBM-11
are for the power ON/OFF remote control or press to talk remote control relay contacts.

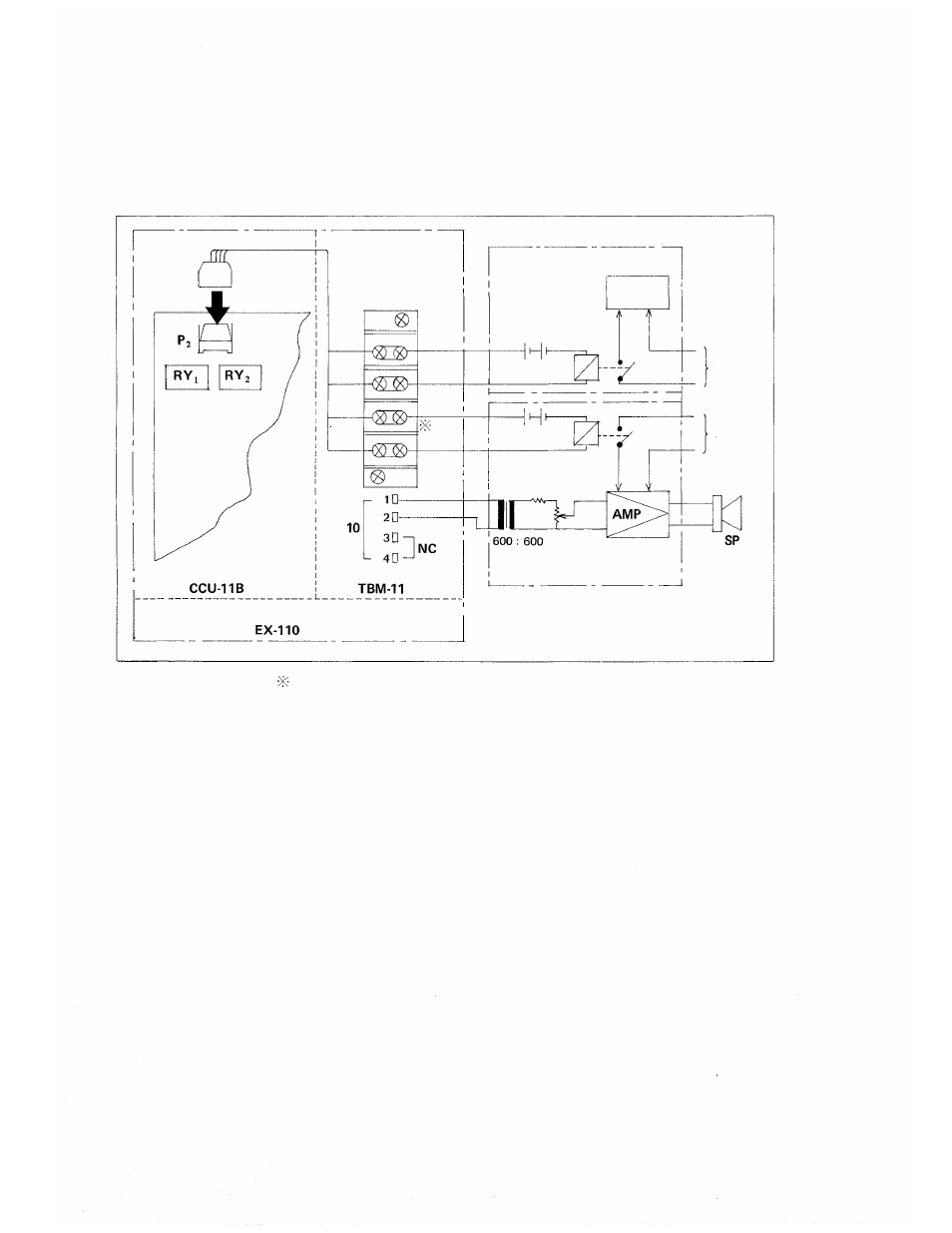

(Please refer to the following diagram.)
YEL
DOOR
ORG
RED
BRN
AC
RM
2
AC
In the case of power ON/OFF remote control.
— 9 —
RM
1
