Vizio L42HDTV10A User Manual
Page 16
CONFIDENTIAL – DO NOT COPY
Page 5-2
File No. SG-0198

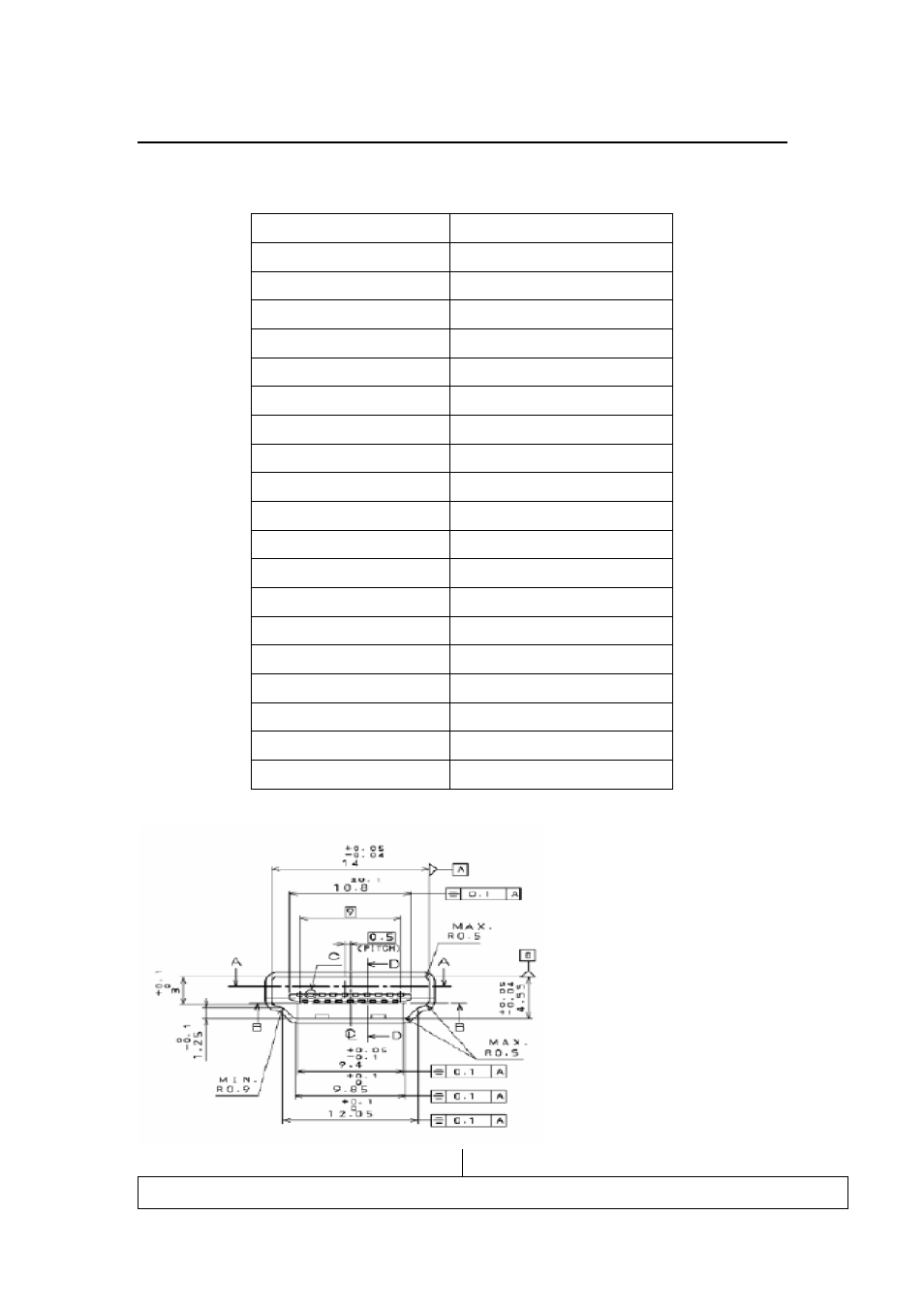

HDMI CONNECT PIN ASSIGNMENT
PIN SIGNAL
ASSIGNMENT
1 TMDS
Data2+
2 TMDS
Data2
Shield
3 TMDS
Data2-
4 TMDS
Data1+
5 TMDS
Data1
Shield
6 TMDS
Data1-
7 TMDS
Data0+
8 TMDS
Data0
Shield
9 TMDS
Data0-
10 TMDS
Clock+
11 TMDS
Clock
Shield
12 TMDS
Clock-
13 CEC
14
Reserved (N.C on device)
15 SCL
16 SDA
17 DDC/CEC
Ground
18 +5V
Power
19
Hot Plug Detect
