DIRECT-VENT GAS FIREPLACE
VDDVF36PN/PP and VDDVF36STN/STP Series
®
FRONT VIEW
30
(76cm)
(Opening)
23 5 / 8 (60cm)
25 (64cm)
RIGHT SIDE
22 5 / 8
(57cm)
43 1 / 8 (110cm)
32 (81cm) (Opening) 1 7 / 8 (5cm)
1 1 / 4 (3cm)
BACK VIEW
39 3 / 4
(101cm)
26 3 / 8
(67cm)
3 (8cm) 1 (3cm)
2 (5cm)
3 (8cm)
22 5 / 8
(57cm)
34 3 / 4
(88cm)
TOP VIEW
(Left Side)
(Right Side)
(Front)
(Back)
23 5 / 8
(60cm)
11 15 / 16
(30cm)
10 1 / 2
(27cm)
ø1.5
(4cm)
ø1.5
(4cm)
11 1 / 8
(28cm)
FRONT VIEW
30
(76cm)
(Opening)
25 (64cm)
19 7 / 8 (50cm)
(Opening)
RIGHT SIDE
1 1 / 4 (3cm)
22 5 / 8
(57cm)
41 1 / 8 (104cm)
32 (81cm) (Opening) 1 7 / 8 (5cm)
39 3 / 4
(101cm)
26 3 / 8
(67cm)
3 (8cm)
1 (3cm)
2 (5cm)
22 5 / 8
(57cm)
34 3 / 4
(88cm)
3 (8cm)
BACK VIEW TOP VIEW
(Left Side)
(Right Side)
(Front)
(Back)
23 5 / 8
(60cm)
10 1 / 2
(27cm)
ø1.5
(4cm)
ø1.5
(4cm)
10 1 / 2
(27cm)
11 15 / 16
(30cm)

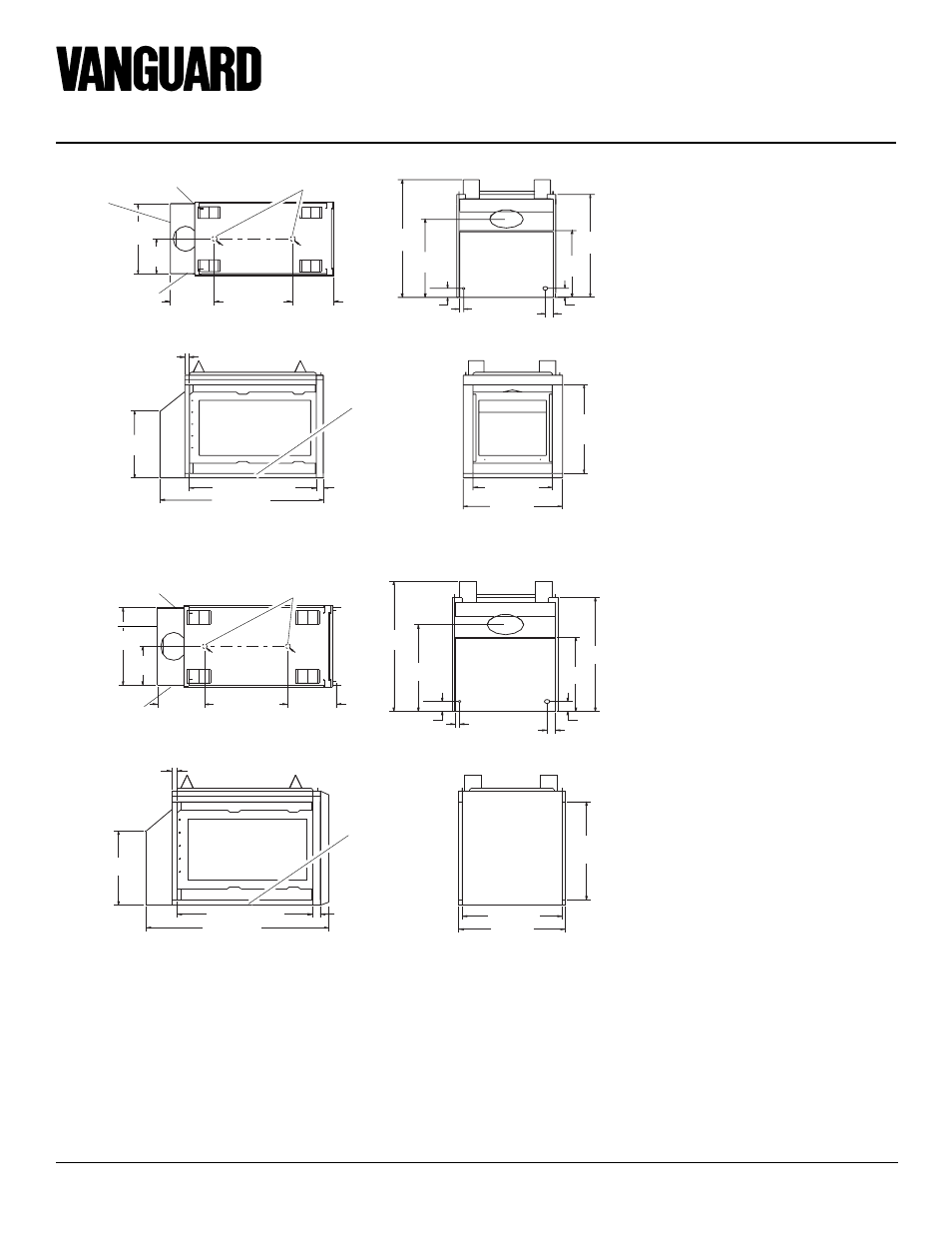

Figure 1 - VDDVF36PN/PP (Peninsula) Dimensions
Back of
Surround
Back of
Surround
Figure 2 - VDDVF36STN/STP (See Thru) Dimensions
Left Side
Surround
Right Side
Surround
Rating Plate
Location
Left Side
Surround
Right Side
Surround
GLOSSARY OF
TERMS
Chase - A box-like enclosure to protect
venting from the elements when the venting
run is on the outside of a structure.
Mastic - A pliable sealant for use around
the vent terminal.
Snorkel Termination - A box that raises
the horizontal termination above ground
level clearances.
Vent Terminal - Mounted on an outside
wall or roof to separate the inlet and outlet of
the vent system and protect it from weather.
Vinyl Siding Standoff - A metal box that
separates the vent cap from vinyl siding.
Wall Thimble/Firestop - A metal plate
used to secure the vent pipe when it passes
through a wall or ceiling.
Alternate Gas
Supply Inlets
Alternate Gas
Supply Inlets
Rating Plate
Location
Note: All dimensions in this manual are in inches unless otherwise specified.
