PLANNING THE INSTALLATION
1. Locate the inline fan so that the length of the duct run and
number of elbows needed is kept to a minimum.
2. The inline fan is designed for use with 10” diameter duct.
3. Use rigid metal ductwork.
4. Always install ventilation products with an approved wall
or roof cap.
5. For a truly quiet kitchen ventilation system add a Viking
Inline Duct Silencer part number VSIL10 (sold separately)
to the installation. The simple addition of a inline duct si-
lencer between the range hood and the DIL1200 fan can
typically reduce the perceived sound level of the system
by more than 50%.

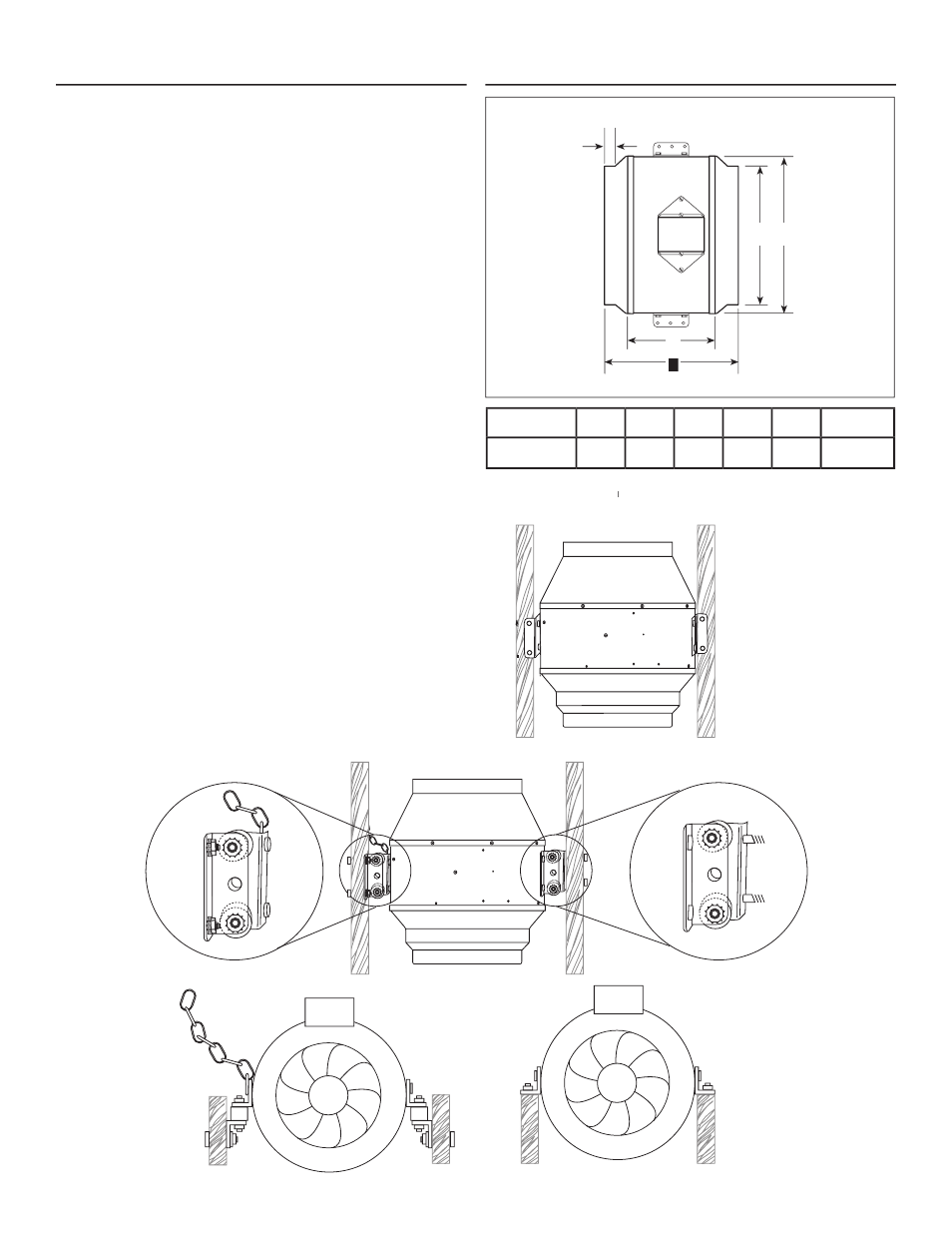

MODEL A B C D E Weight
DIL1200 †10 1 14 15 8 21 lbs.
MOUNTING THE DIL1200 INLINE FAN
To minimize any potential vibration noise it is recommended
that the inline fan be mounted with Viking Vibration Isola-
tion Kit part number ILVK (sold separately). Various mounting
methods are shown below.
2
Vertical Installation
with out Kit
����
�
�
� �
All dimensions in inches.
† Duct connections are ¹⁄₈
¹¹ smaller than the duct size.
Vertical Installation
with Kit
Horizontal Installation
with Kit Horizontal Installation
with out Kit
