Page 29
insTallaTion
RS-232 Controller Connection
Connect a PC or home theater control/automation system (if present) to the RS-232 port on the H9080FD; see Figure
3-11. Use a standard, 9-pin serial cable, wired straight-through.
For more information about using this connection, refer to Serial Interface Specifications on page 58.
1
2
3
4
5
7
8
9
6
to Automation/
Control System
or PC
2 Transmit Data
3 Receive Data
5 Ground
(none of the other pins are used)
RS-232

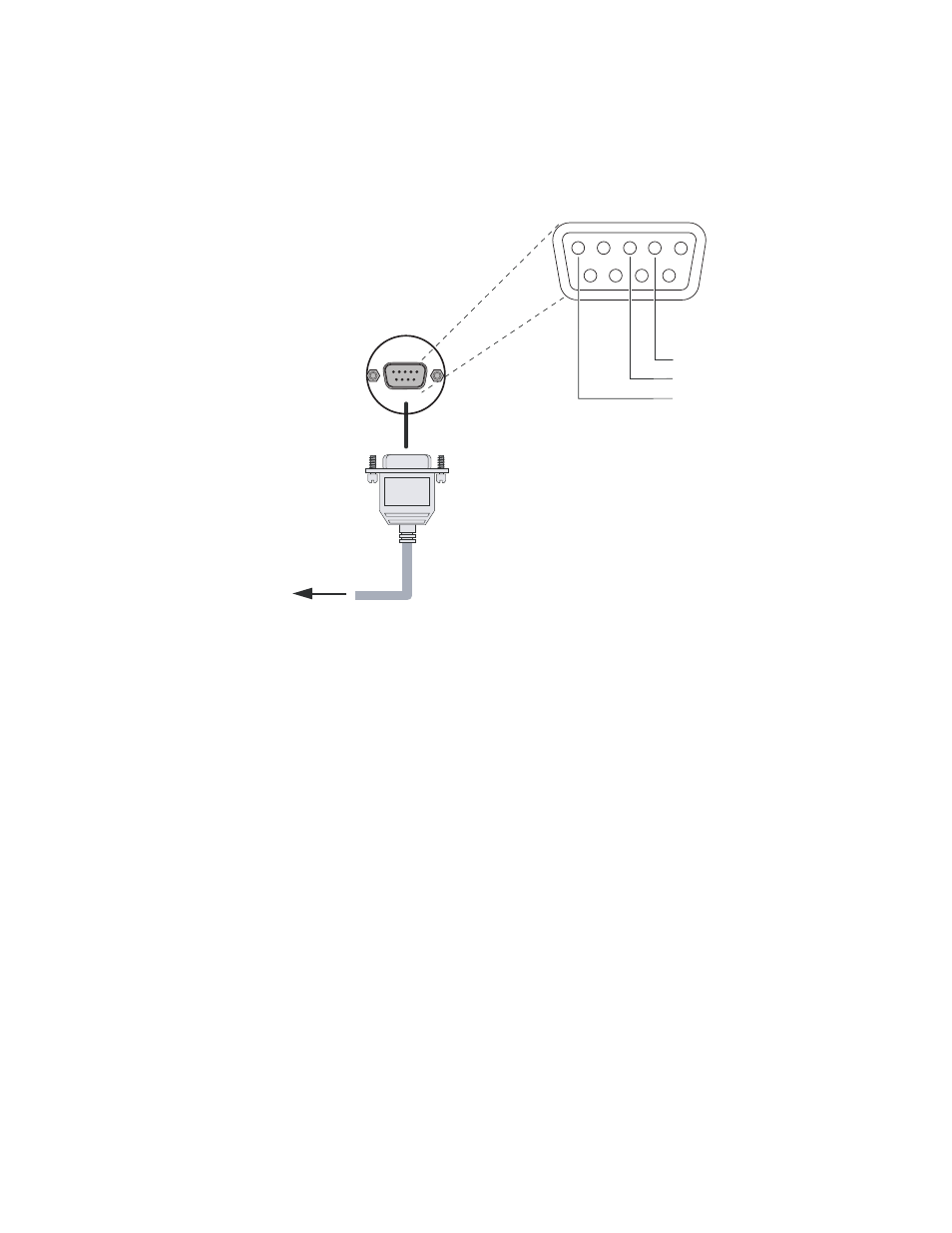

Figure 3-11: RS-232 Control System Connection
