RGB Connections: Connect your personal computer or other RGB source to the RGB input.
Optionally, if the source outputs RGB with composite sync, connect the green, blue and red outputs to the Y, Pb and Pr
terminals on the COMPONENT 1/SCART input and the sync output to the VIDEO input.
See Figure 3-8.
IR INPUT 12V TRIGGER VIDEO S-VIDEO COMPONENT 1 - SCART
1 2
Sync Green Blue Red
Personal
Computer
DVD Player or
Other SCART RGBS
Source
RGB

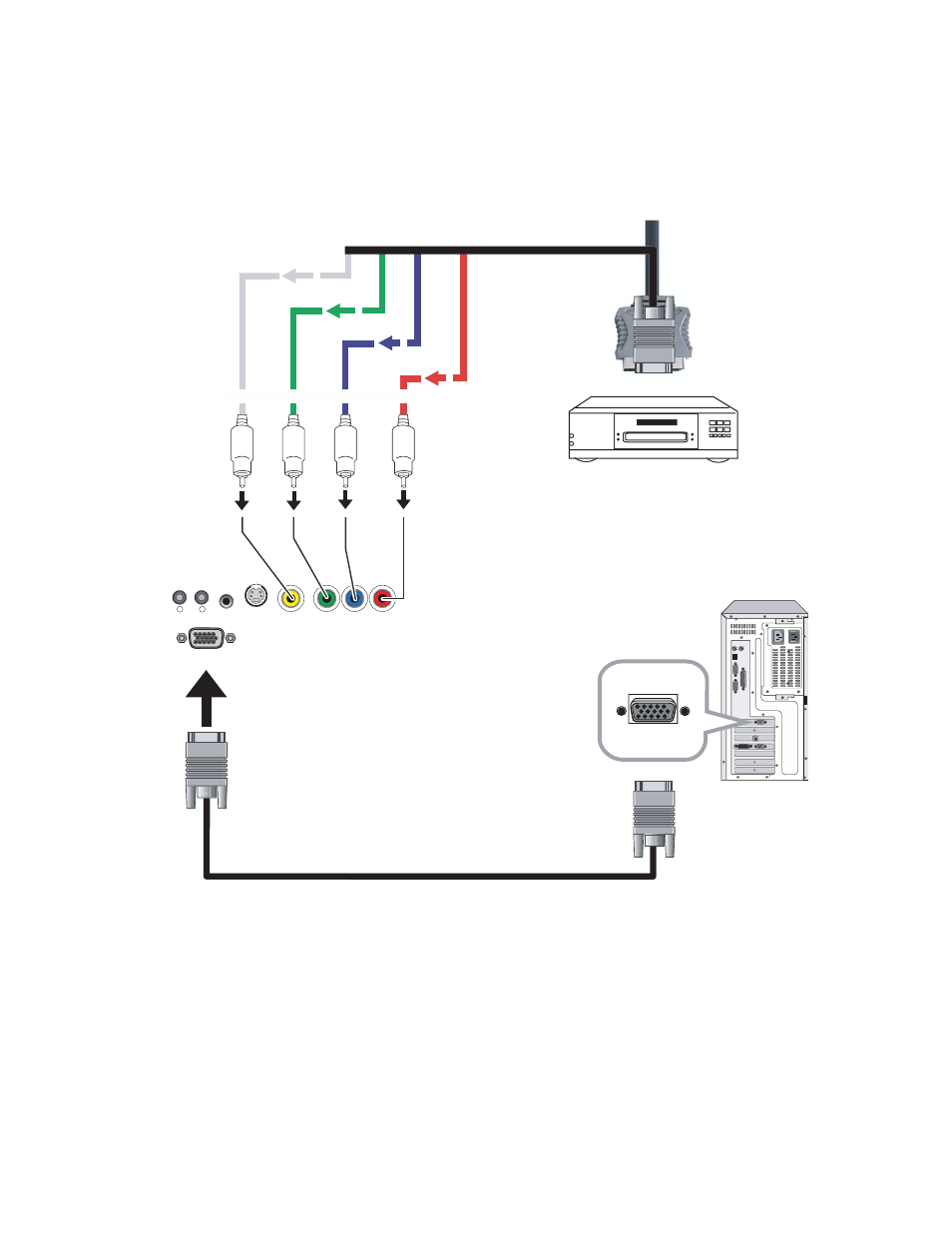

Figure 3-8: RGB Connections
