Vanguard Heating SBVBN(A) - Manual (Page 5)

5 105500
OWNER’S MANUAL
Pallet
Wood
Bolted to
Bottom of
Stove
Body

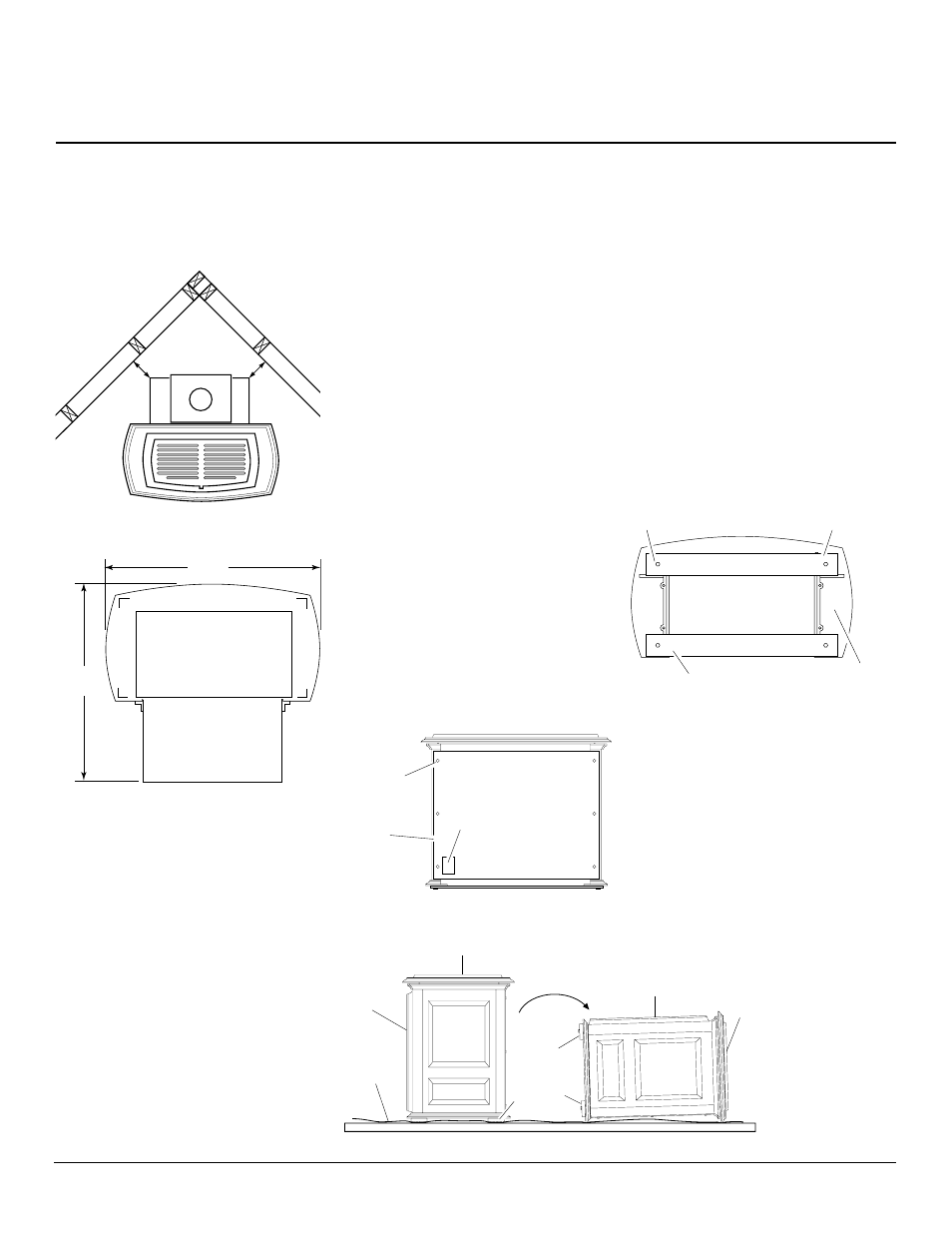

STOVE BODY ASSEMBLY
1. Lift off corrugated box enclosing stove
body crating.
2. Remove all screws fastening the wood
frame enclosure. Spread wood frame open
and lift away from plastic-bagged stove
body. The bottom pieces of pallet wood
will remain bolted to the stove body.
3. Remove plastic bag from stove body.
4. Remove back panel from stove (see
Figure 6). Use an adjustable wrench or
a 10 mm socket. Remove six (6) bolts
and washers. Keep bolts and washers
to reattach back panel later.
5. Remove all contents from inside stove
cavity. Contents include:
(1) - Stove bottom
(4) - Legs with leg leveler bolts
(1) - Bottom door
(1) - Top grate
(1) - Hardware kit bag with fasteners
6. Carefully lay stove body on back to at-
tach bottom components to stove body
(see Figure 7). Rest stove on drop cloth or
blanket to avoid scratching stove edges.
Figure 7 - Laying Down Stove On Side
Figure 8 - Removing Pallet Wood From
The Bottom of The Stove
Figure 6 - Removing Back Panel
Bolt
Product
Identification
Label
Back
Stove
Panel
Pallet Wood
Bolt
Pallet
Wood
Bottom Of
Stove Unit
Front
Front of
Stove
Unit
Top of Stove Unit
Front of
Stove Unit
Top of
Stove
Unit
Drop
Cloth/
Blanket
FREESTANDING
FIREPLACE
ASSEMBLY
4" 4"
Figure 4 - Clearance for Corner Installation
Figure 5 - Freestanding Fireplace Bottom
Dimensions
26"
25"
Front
7. Remove remaining pallet wood at-
tached to bottom of stove body (see
Figure 8). Use an adjustable wrench to
remove bolts.
8. Fasten each leg to stove with four (4)
M8 x 1.25 - 20mm bolts. Use a flat
washer and lock washer with each bolt.
Tighten bolts into threaded holes on
stove body (see Figures 9 and 10, page
6). Use an adjustable wrench or a
12mm socket.
9. Fasten stove bottom to stove with four
(4) M6 x 1 - 25mm bolts. Use a flat
washer and lock washer with each bolt.
Tighten bolts into threaded holes on
stove body (see Figure 9 and 11, page
6). Use an adjustable wrench or a
10mm socket.
PRE-INSTALLATION
PREPARATION
Continued
Continued
