4
®
B-VENT FREESTANDING FIREPLACE
105500
LOCATION AND SPACE
REQUIREMENTS
Determine the safest and most efficient loca-
tion for your Vanguard B-vent freestanding
fireplace. Make sure that rafters and wall
studs are not in the way of the venting system.
Choose a location where the heat output is
not affected by drafts, air conditioning ducts,
windows, or doors. Figure 2 shows some
common locations. Read all venting infor-
mation in this manual. Be aware of all restric-
tions and precautions before deciding the
exact location for your fireplace.
When deciding the location of your fire-
place, follow these rules:
1. Do not connect this fireplace to a chim-
ney flue serving a separate solid-fuel
burning fireplace or appliance.
2. Due to high temperatures, do not lo-
cate this fireplace in high traffic areas
or near furniture or draperies.
3. Proper clearances must be maintained,
see Figure 3 and Figure 4 on page 5.
4. This stove is a freestanding unit de-
signed to set directly on the floor. If
your fireplace is to be installed directly
on carpeting, vinyl tile, or any combus-
tible material other than wood, it must
be installed on a metal or wood panel
extending the full width and depth of
the fireplace. See Figure 5, page 5.
PRE-INSTALLATION
PREPARATION
6 "
4 "
Front
4" 36"
from
Front
42"
Ceiling
Floor
Back
Wall

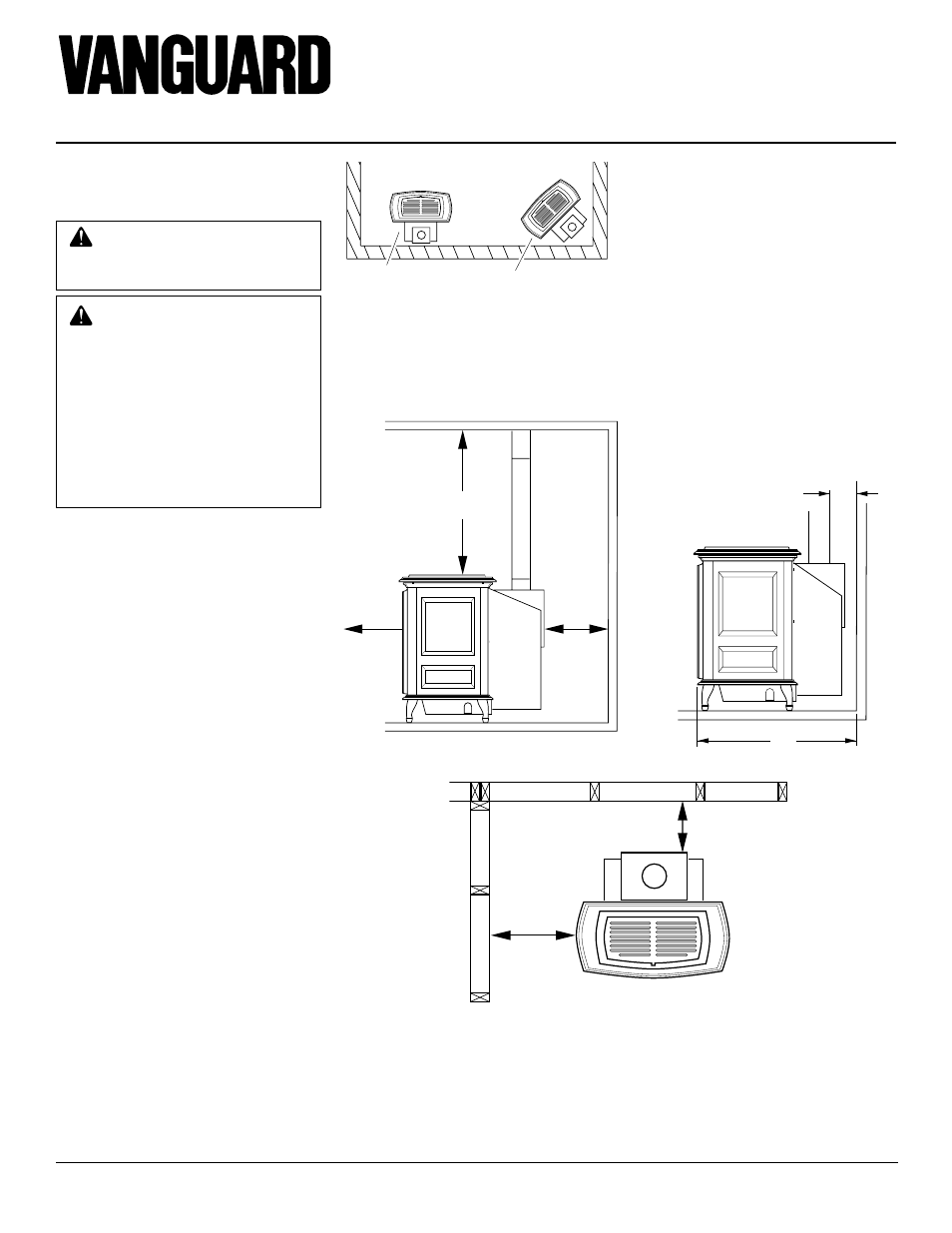

Figure 3 - Clearances for Standard Installation
29"
Must Maintain
a Minimum
of 1" Clearance
to Combustibles
On Wall with Vertical
Termination Through
Ceiling
Corner Installation
with Vertical
Termination
Through Ceiling
Figure 2 - Common Freestanding
Fireplace Locations
WARNING: A qualified ser-
vice person must install fireplace.
Follow all local codes.
CAUTION: This fireplace cre-
ates warm air currents. These cur-
rents move heat to wall surfaces
next to fireplace. Installing fire-
place next to vinyl or cloth wall
coverings or operating fireplace
where impurities (such as to-
bacco smoke, aromatic candles,
cleaning fluids, oil or kerosene
lamps, etc.) in the air exist, may
discolor walls.
