16
®
B-VENT FREESTANDING FIREPLACE
105500

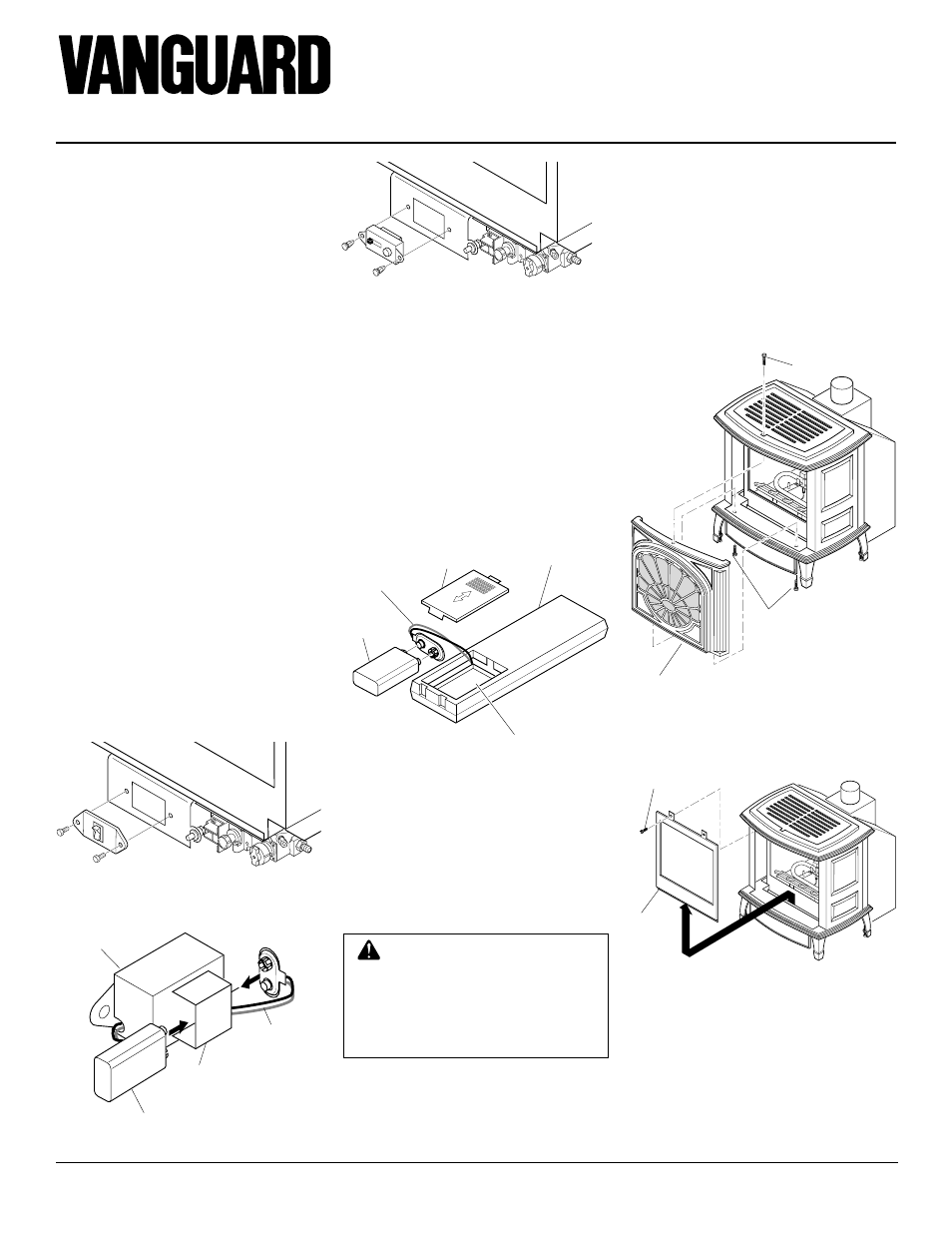

REMOVING/REPLACING
GLASS DOOR
CAUTION: Do not operate this
fireplace with a broken glass door
panel or without the glass door
panel securely in place. For re-
placement part information see
Replacement Parts, page 25.
1. Remove 2 bolts from bottom of stove
and one from the top of stove to remove
front panel (see Figure 38).
You must remove glass door to install logs,
lava rock, and ember material. To remove
glass door, you must first remove the front
panel on stove body.
Figure 39 - Removing Glass Door from
Firebox Insert
FIREPLACE
INSTALLATION
Continued
INSTALLING OPTIONAL
WIRELESS HAND-HELD
REMOTE CONTROL
ACCESSORIES - GHRC AND
GHRCT SERIES
Installing Remote Receiver
1. Open bottom door on stove body and
locate the switch plate on the left of the
valve bracket.
2. Unscrew switch plate (see Figure 34).
3. Disconnect wires from THTP and TH
on control valve that lead to the switch
(see Figure 31, page 15). Discard
switch plate, screws, and nuts.
4. Install battery into receiver battery clip
and connect to terminals (see Figure 35).
5. Place receiver into valve bracket and
align holes (see Figure 36).
6. Use push-in fasteners included with
receiver to secure to bracket.
7. Connect the wires from the receiver to
the valve at TH and THTP (see Figure
31, page 15).
Figure 38 - Removing Front Panel from
Stove
Figure 35 - Installing Battery in Receiver
Figure 37 - Installing Battery in Hand-
Held Remote Control Unit
Installing 9-Volt Battery in Hand-
Held Remote Control Unit
1. Remove battery cover on back of re-
mote control unit
2. Attach terminal wires to a 9-volt bat-
tery (not included). Place battery into
the battery housing.
3. Replace battery cover onto remote con-
trol unit.
Terminal
Wires
Battery
Cover
9-Volt
Battery
Remote
Control Unit
Battery Housing
9-Volt Battery
Receiver
Battery
Clip
Terminal
Wires
Screw
Glass
Door
Bolt
Bolt
Stove Front Panel
L O H I
P IL O T OFF ON
Figure 36 - Installing Remote Receiver
Figure 34 - Removing Switch Plate
L O H I
P IL O T O F F
O N
2. Remove the screws from the 2 tabs at
the top of the glass door while holding
door securely keeping it from falling
forward (see Figure 39).
3. Grasp door by both sides and ease it
upward off of the lower bracket (see
Figure 39).
4. To replace glass door, follow the above
instructions in reverse.
