Analog (Computer) RGB Connections: See Figure 3-14.

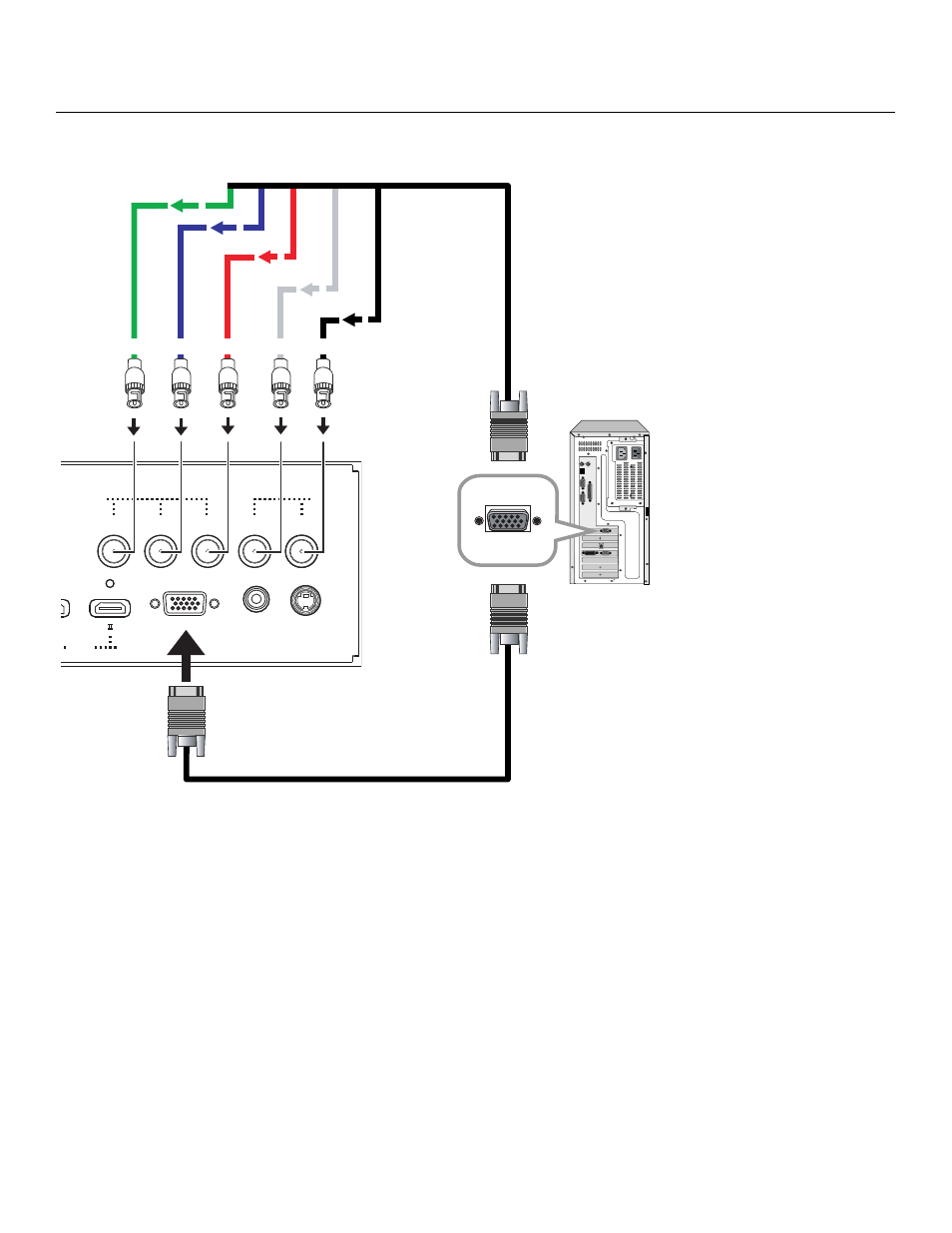

Figure 3-14. Analog RGB Connections
HD3 (VGA / Y-Pb-Pr)
COMPOSITE
S-VIDEO
HD2 (BNC)
Vs
Hs
Pr / R
Pb / B
Y / G
HDMI
II
Green/Y Blue/Pb Red/Pr
Horiz
Vert
Personal
Computer
