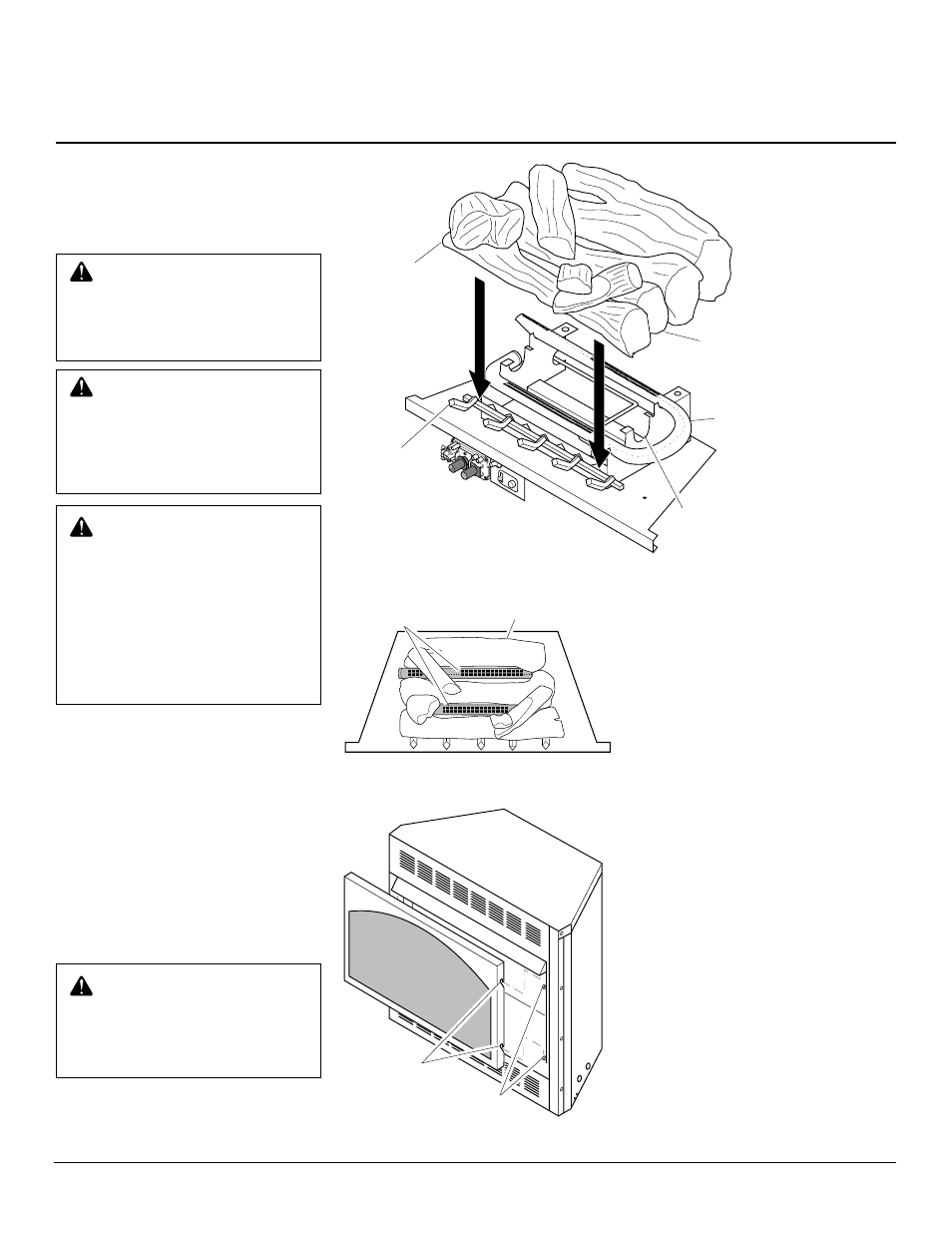

Figure 22 - Installing One Piece Log Set
Figure 23 - Installing One Piece Log Set
(Top View)
Notches
Figure 24 - Installing Fireplace Screen
WARNING: After installation
and periodically thereafter, check
to ensure that no flame comes in
contact with any log. With the
heater set to High, check to see if
flame contact any log. If so, repo-
sition logs according to the log
installation instructions in this
manual. Flames contacting logs
will create soot.
Screws for
Mounting Screen
It is very important to install the logs exactly
as instructed. Do not modify logs. Only use
logs supplied with heater.
1. Place one-piece log set on grate to fit
as illustrated in Figure 22. Make sure
middle section at bottom of log set is
seated into "U"-shaped cutout in cen-
ter of chassis (see Figure 23).
IMPORTANT: Make sure log does not
cover any burner ports.
2. Install fireplace screen by slipping
notches of fireplace screen over screws
on front of fireplace (see Figure 24).
WARNING: You must operate
this fireplace with the fireplace
screen in place. Make sure fire-
place screen is in place before
running fireplace.
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only
parts specifically approved with
this heater may result in property
damage or personal injury.
INSTALLING LOGS
INSTALLATION
Continued
One Piece Log Set
Burner Ports
WARNING: Do not remove
the metal data plates attached to
the heater base assembly. The
data plates contain important
warranty information.
O F
F P IL OT O N
H I
L O
Chassis
"U"-shaped
Cutout in
Chassis
One Piece
Log Set
Burner
Middle
Section at
Bottom of Log
Set
