5
103670
ASSEMBLY
ASSEMBLING FIREPLACE
Tools Required: Phillips screwdriver, 5/16" hex wrench, and slotted screwdriver
Installing Log
1. Remove back log, branch, and hood from log box. Discard protective packaging.
2. Remove two shipping screws above screen (see Figure 2).
3. Lift screen up and pull out to remove.
4. An optional blower is available. See Accessories, page 29. Install optional
blower now. Follow installation instructions provided with blower.
5. Gently place back log on burner support (see Figure 2). The log should fit flat
against top of burner support. Place two #10 one-inch-long screws through burner
support into the log and tighten. Place branch on branch support (see Figure 2).
6. Reattach screen by placing the notches in the screen frame over the shoulder screws
and pushing down.

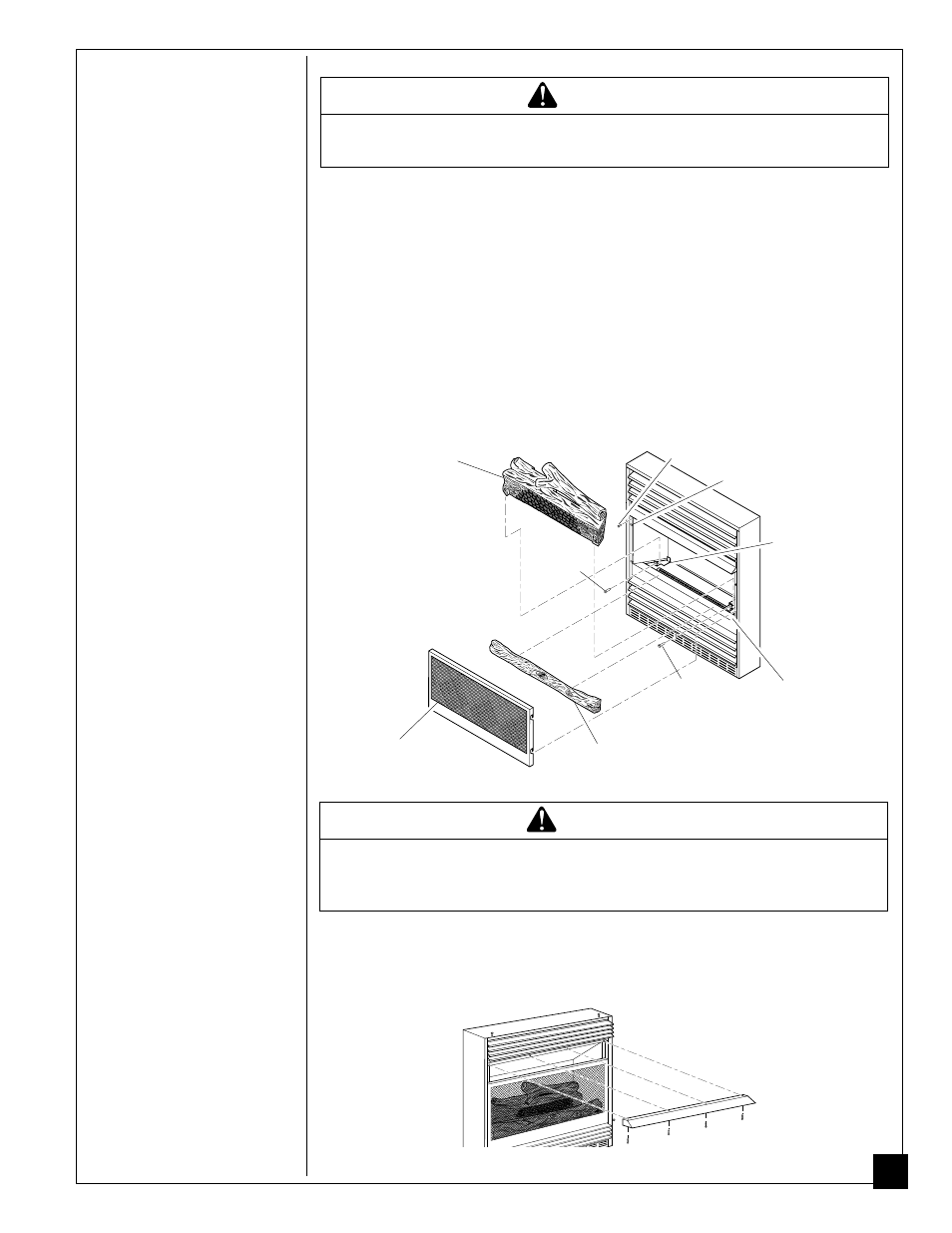

Figure 2 - Assembling Fireplace
WARNING ICON G 001
WARNING
Always have branch support and screen in place before operating
fireplace. This prevents excessive temperatures on fireplace surfaces.
Back Log
Screen
Branch
Burner
Support
Screw
Screw
Branch
Support
Screen Shipping Screw
Shoulder Screw
Assembling Hood
1. Locate four black phillips sheet metal screws from the hardware packet.
2. Place hood over top edge of firebox wrapper.
3. Attach screws (see Figure 3).
WARNING ICON G 001
WARNING
Failure to position the parts in accordance with these diagrams or
failure to use only parts specifically approved with this fireplace may
result in property damage or personal injury
Figure 3 - Assembling Hood
