Verizon Network Manager Nodes - Manual (Page 32)

8-4 Version 1.08 January 15, 2008
Replace a Termination
1. Select a toll-free number from the navigation tree on the Home page.
2. Click the Quick icon on the toolbar. The Node Routing Plan Maintenance dialog appears.
3. Double-click the lightning bolt on the branch where you want to change the termination. The
Quick Change dialog appears.

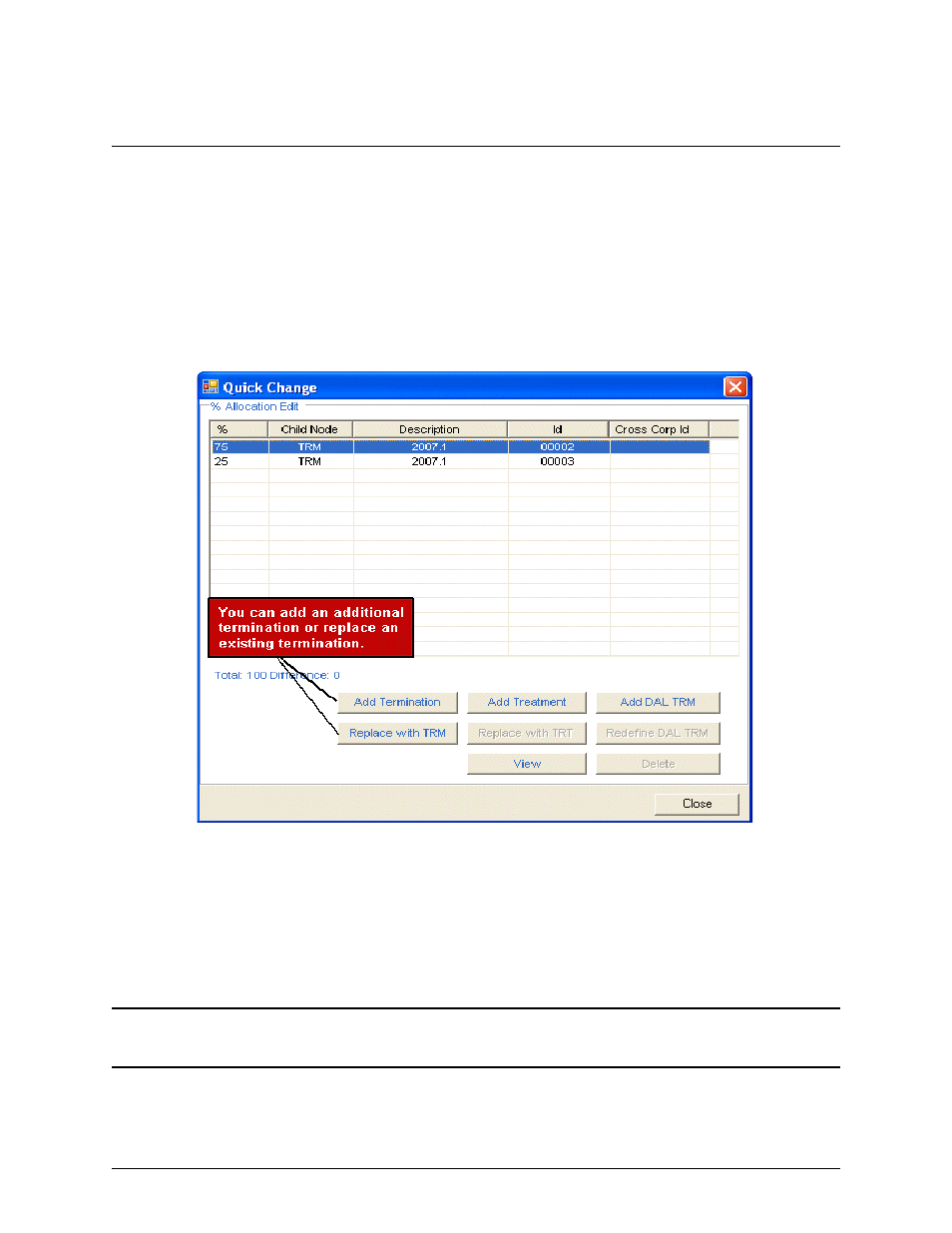

Figure 8-4: Quick Change
4. Select the termination you want to replace.
5. Click Replace with TRM. The Lterm Select dialog appears.
Note: You cannot add or delete additional branches to a percent model through the Quick
function if there is a pending order against the plan.
