33

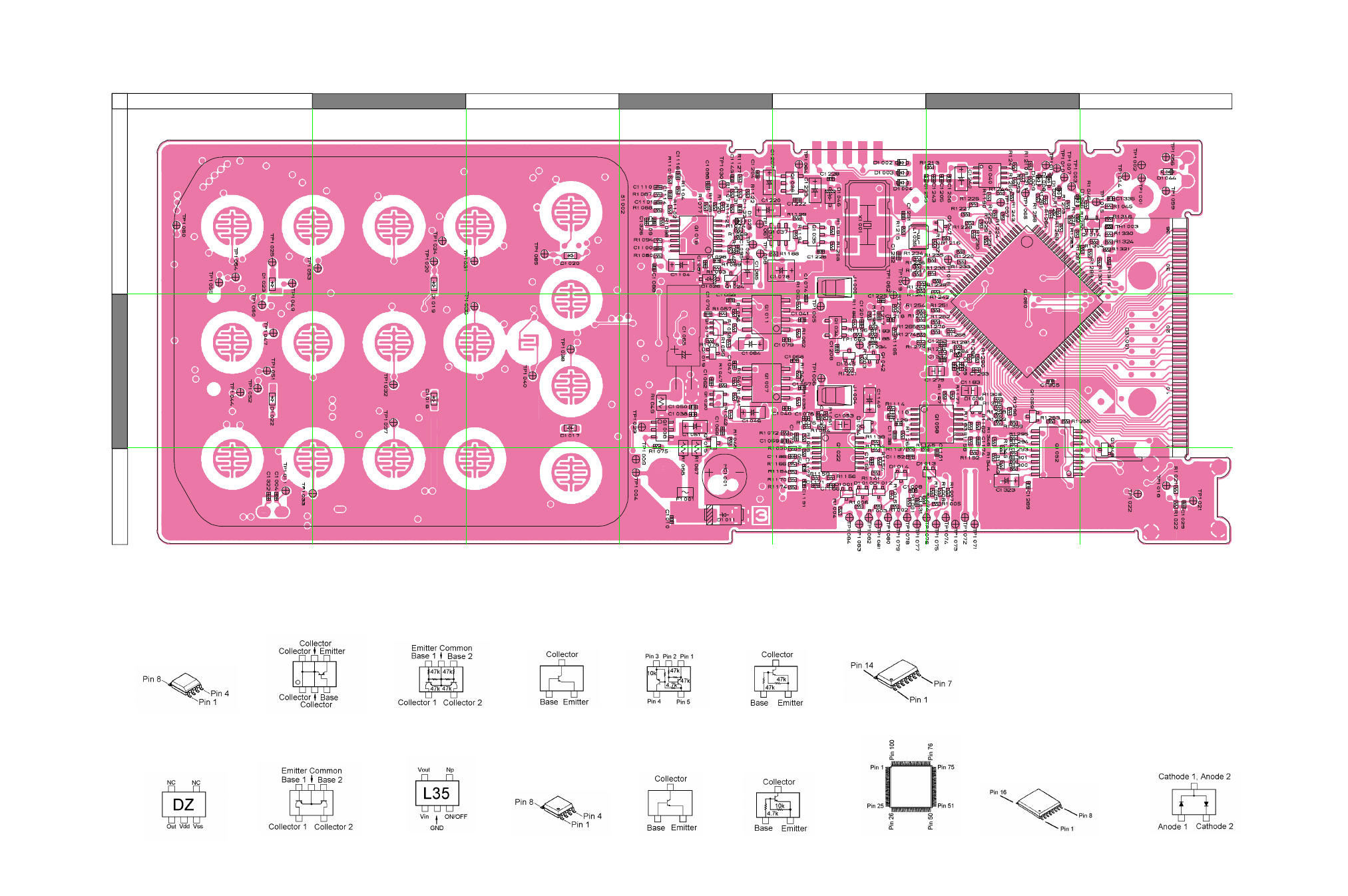

Side A

DA221 (K)

(D1001, 1010, 1012, 1013,

1014, 1034, 1038, 1045)

2SA1774 (FR)

(Q1015)

2SC4617 (BR)
(Q1042, 1047)

CPH6102 (AB)

(Q1008, 1037)

LC87F72C8A

(Q1050)

NJM2902V

(Q1018, 1022, 1058)

PDTC144EE (26)

(Q1019, 1024)

S-93C56AMFN

(Q1040)

S-80735SN-DZ (DZ)

(Q1034)

TDA2822D
(Q1007,1011)

TK71635SCL (L35)

(Q1036)

UMG2N (G2)

(Q1014)

UMC5N (C5)

(Q1017, 1020)

XN1501 (5R)

(Q1035)

UN911F (60)

(Q1048, 1059)

BU2090FS

(Q1052)

Main Unit (Lot. 5~)

A

B

C

7

6

5

4

3

2

1

Parts Layout
