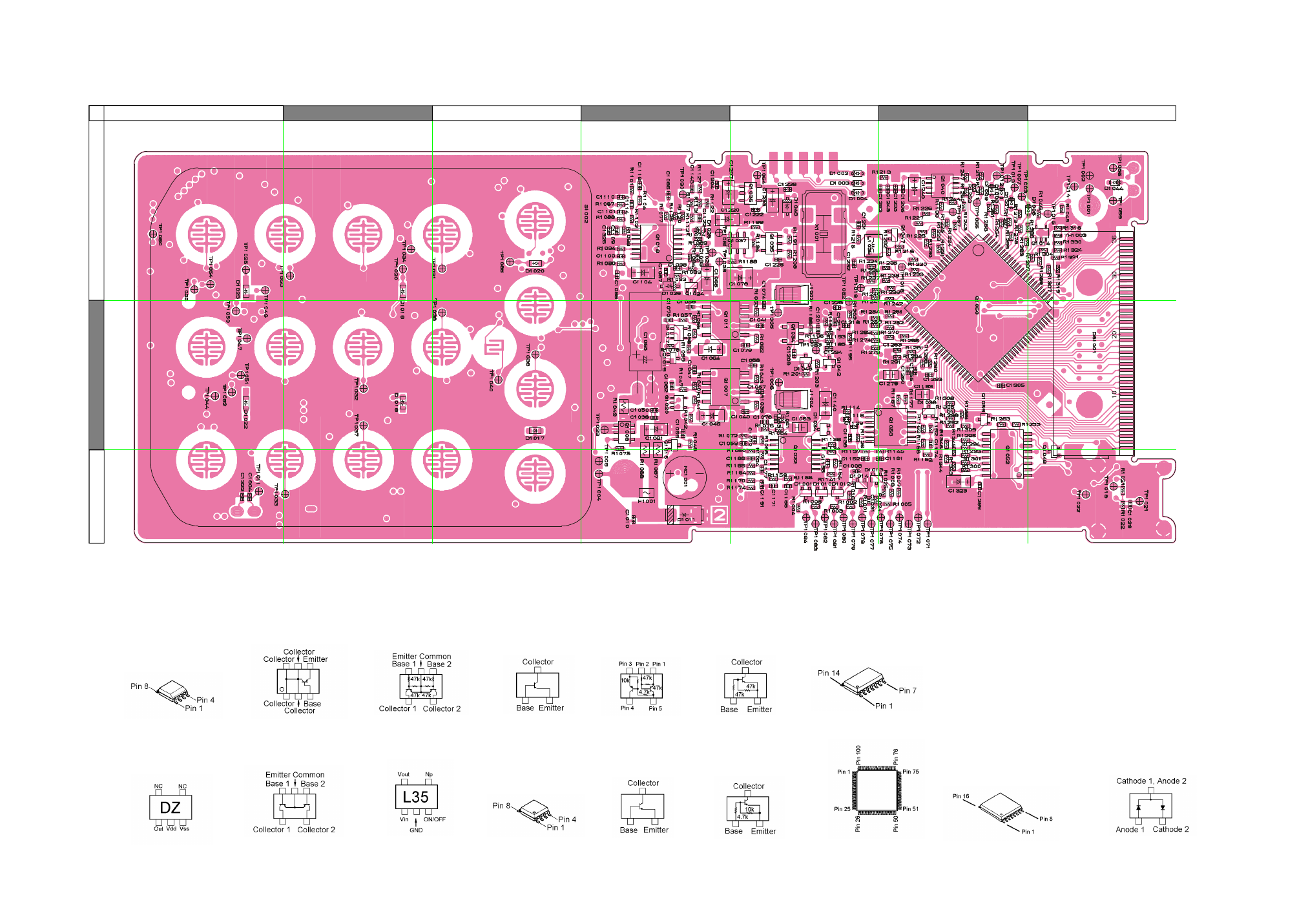

Page 29: Parts layout
29
Main Unit
Side A
Parts Layout
DA221 (K)
(D1001, 1010, 1012, 1013,
1014, 1034, 1038, 1045)
2SA1774 (FR)
(Q1015)
2SC4617 (BR)
(Q1042, 1047)
CPH6102 (AB)
(Q1008, 1037)
LC87F72C8A
(Q1050)
NJM2902V
(Q1018, 1022, 1058)
PDTC144EE (26)
(Q1019, 1024)
S-93C56AMFN
(Q1040)
S-80735SN-DZ (DZ)
(Q1034)
TDA2822D
(Q1007,1011)
TK71635SCL (L35)
(Q1036)
UMG2N (G2)
(Q1014)
UMC5N (C5)
(Q1017, 1020)
XN1501 (5R)
(Q1035)
UN911F (60)
(Q1048, 1059)
BU2090FS
(Q1052)
A
B
C
7
6
5
4
3
2
1
