ViewSonic VPW505

Signal Frequency Information Display

Displaying Frequency of Signal

This display is capable of displaying the frequency level of the signal being displayed. To see signal fre-

quency information:

1. Press the MENU +/- keys on the remote or the front control panel.

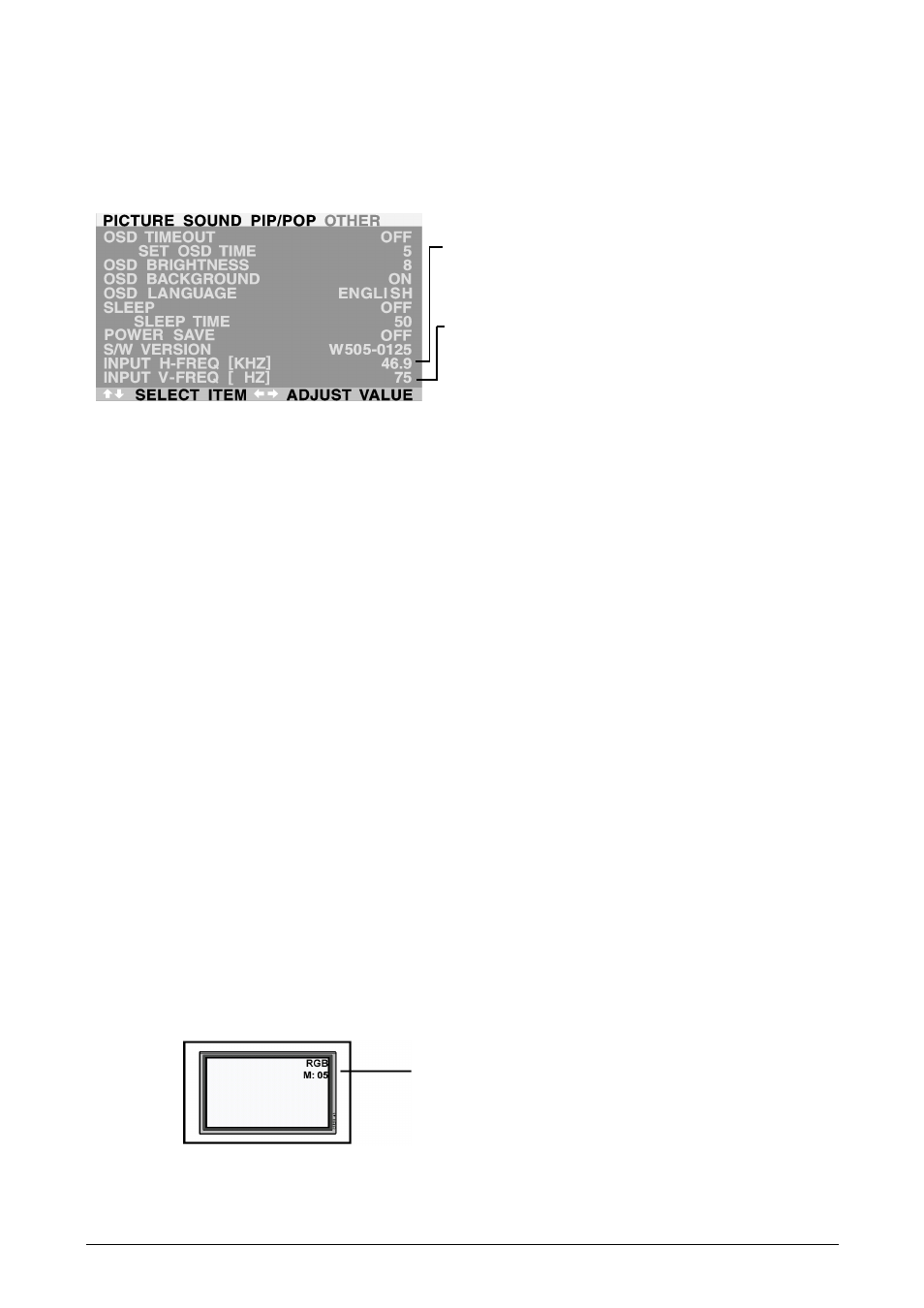

2. Use the ADJ +/- keys to navigate to the “OTHER” OSD sub-menu.

When Using AV1 and AV2 Inputs
Horizontal Vertical

Format

15.7

60

NTSC Video

15.6

50

PAL Video

When Using Component 1 & 2 Inputs
Horizontal Vertical

Format

15.7

60

NTSC Video

15.6

50

PAL Video

15.7

60

480i (SDTV)

31.5

60

480P (EDTV)

33.0

60

1080i (HDTV)

45.0

60

720P (HDTV)

Notes:
„ When using RGB mode, the OSD will display a mode

number that references the table above.

„ Modes 15, 16, 31 under RGB mode is not available when

using with DVI input.

„ Modes 24-26 are for use with Apple Macintosh comput-

ers.

INPUT H-FREQ (KHZ)

Displays the horizontal signal frequency of the signal currently

displayed. Please use the frequency cross reference tables below to

see which type of signal is being displayed under various input

modes.

INPUT V-FREQ (HZ)
Displays the vertical signal frequency of the signal currently

displayed. Please use the frequency cross reference tables below to

see which type of signal is being displayed under various input

modes.

When Using RGB & DVI Inputs
Mode Horizontal Vertical Format

Refresh

1

31.469

59.940 640x480 (VGA)

60

2

37.861

72.809 640x480 (VGA)

72

3

37.500

75.000 640x480 (VGA)

75

4

43.269

85.008 640x480 (VGA)

85

5

35.156

56.250 800x600 (SVGA)

56

6

37.879

60.317 800x600 (SVGA)

60

7

48.077

72.188 800x600 (SVGA)

72

8

46.875

75.000 800x600 (SVGA)

75

9

53.674

85.061 800x600 (SVGA)

85

10

48.364

60.004 1024x768 (XGA)

60

11

56.476

70.069 1024x768 (XGA)

70

12

60.023

75.029 1024x768 (XGA)

75

13

68.677

84.997 1024x768 (XGA)

85

14

63.981

60.020 1280x1024 (SXGA) 60

15*

79.976

75.025 1280x1024 (SXGA) 75

16*

91.146

85.024 1280x1024 (SXGA) 85

18

31.469

70.087 720x400 (DOS)

70

19

31.469

50.030 640x480 (VGA)

50

20

45.000

60.000 1280x720P (HDTV) 60

21

33.750

60.000 1920x1080i (HDTV) 60

22

31.469

70.087 640x350 (VGA)

70

23

31.413

59.835 852x480 (WVGA)

60

24

35.000

66.667 640x480 (Apple)

67

25

49.725

74.550 832x624 (Apple)

75

26

68.681

75.062 1152x870 (Apple)

75

28

47.368

59.960 1360x768

60

30

60.000

60.000 1280x960

60

31*

85.938

85.002 1280x960

85
