Vincent

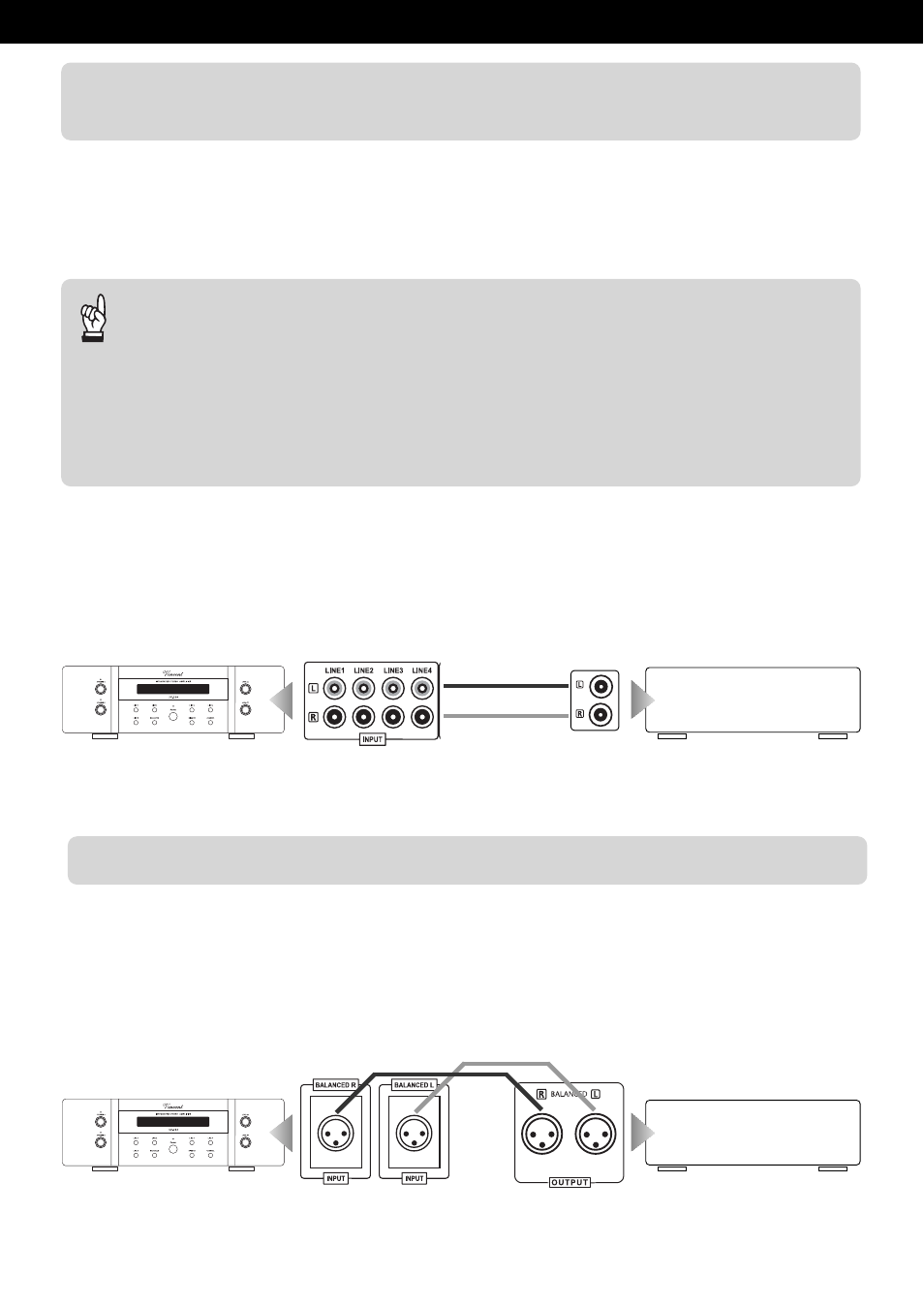

Connect the outputs of these source devices with the inputs "LINE1"..."LINE4" (10) of the amplifier.
The output sockets on the source equipment are usually indicated by "Line Out", "Audio Out" or "Front
Out". You will find information about ways to connect source equipment in their operating manuals.
The "balanced" input can only be connected to a device equipped with symmetrical output. At the sour-
ce device you can recognize it by the three-pin XLR-type of the output jack. Leave the XLR input of your
pre-amplifier open if none of your audio sources uses this. Sometimes both types of output connectors
are provided.
Up to four high level stereo sources can be connected to these RCA inputs. The audio inputs
"LINE1"..."LINE4" (10) represent electrically equivalent standard high level inputs with RCA connection.
They have an identical function and differ only in name.
To use a record player you need a so-called equaliser preamplifier (also called a phono pream-
plifier), which is installed in the signal path between the record player and one of the high-level
inputs. Some models of record player already include this preamplifier and can be connected
directly. You will find further information in this appliance’s operating manual.
The stereo sound of appliances that use output connectors other than RCA (DIN plugs, jack
plugs) can often also be used with the aid of adaptors.
C
CO
ON
NN
NE
EC
CTTIIO
ON
N O
OFF TTH
HE
E S
SO
OU
UR
RC
CE
E E
EQ
QU
UIIP
PM
ME
EN
NTT W
WIITTH
H
R
RC
CA
A H
HIIG
GH
H LLE
EV
VE
ELL O
OU
UTTP
PU
UTTS
S
C
CO
ON
NN
NEEC
CTTIIO
ON
N O
OFF O
ON
NEE A
AU
UD
DIIO
O S
SO
OU
UR
RC
CEE W
WIITTH
H X
XLLR
R O
OU
UTTP
PU
UTT
SV-234
e.g. CD-Player
SV-234
CD-Player, Tuner,
DVD-Player, etc.
LINE OUT
RCA connection
XLR connection
