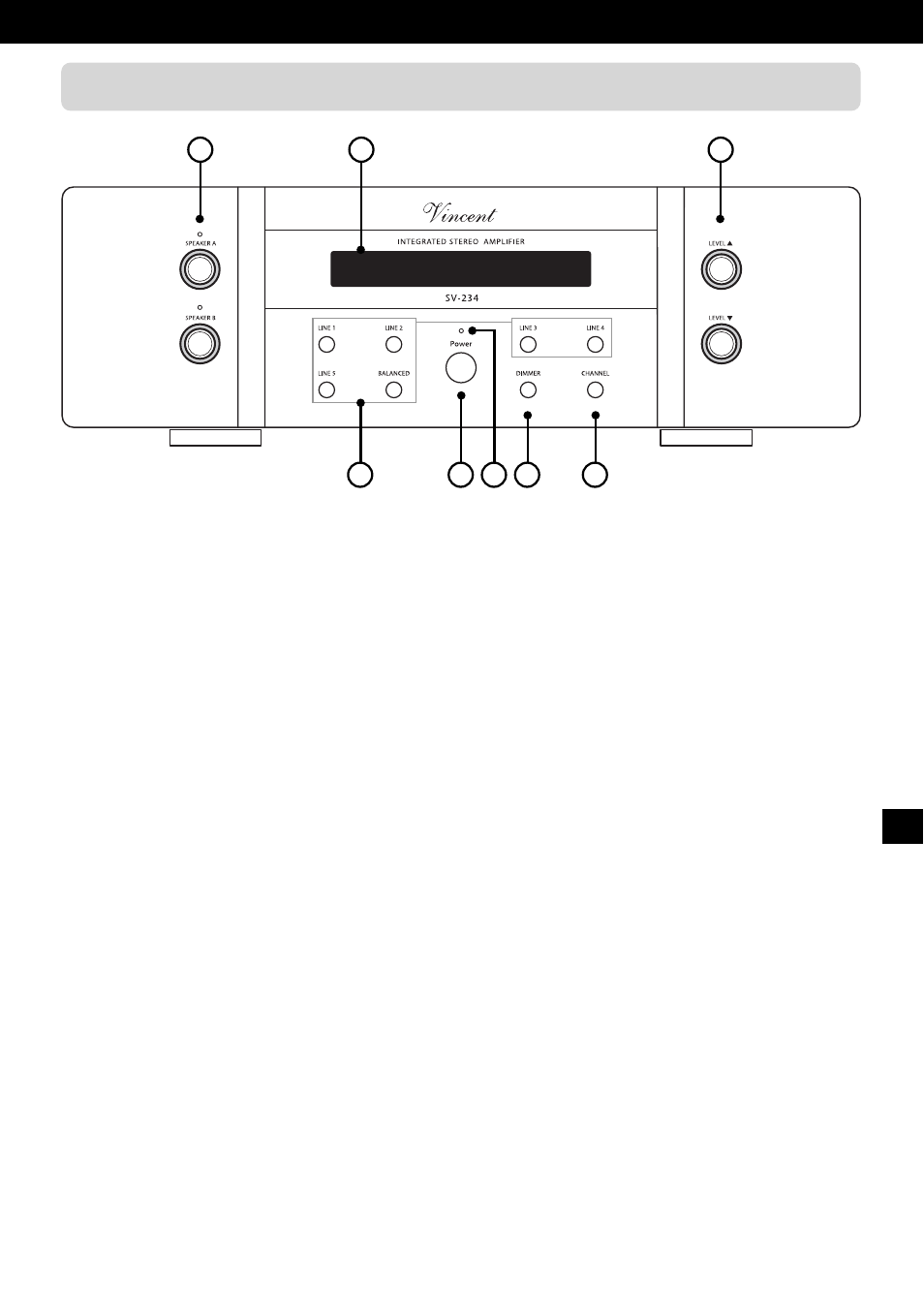

1. SPEAKER A/B
If suitable speakers are used, a second pair of
speakers can be operated at the same time.
This button allows each of the speaker pairs
(designated A and B) to be individually
switched on and off. The LED located above
each of the buttons shows which of the speaker
pairs is active.
2. Display
In normal use the display shows the name of
the selected input, the volume and the opera-
ting mode (Audio Mute). When adjustments
are being made (e.g. to BALANCE, GAIN),
the relevant values are displayed.
3. LEVEL / : Volume keys
These are the keys for the adjustment of the
main volume level of the system. They conse-
quently control the volume of the loudspeakers
and the signal of the stereo preamplifier out-
put "PRE OUTPUT". Only for the playback of
the audio source at the input "LINE5" the
volume setting has no effect.
4. „LINE1“ … „LINE5“ and "BALANCED":
Input selection With a touch on one of
these buttons you choose for playback the audio
source attached to the corresponding connec-
tors at the amplifier's backside.
5. POWER
This is the main power switch for turning on
and off the device. Please take note of the
information about it in the sections
"Installation" and "Operating the device".
6. LED signaling display shut-off
This LED remains illuminated when the display
is switched off by the “DIMMER” (7) function.
That helps to not misinterpret a shut-off display
as consequence of a shut-off device.
7. DIMMER: Brightness setting for the
display
The brightness of the front panel display can
be reduced in two steps using this button.
If you press it repeatedly, the third actuation
switches off the display. With a fourth stroke,
the maximum display brightness will be
restored again.
8. CHANNEL: Channel Balance
These are the buttons that enable you to set
a volume difference between the left and the
right stereo channel ("BALANCE").
