Vista Solo 1-6 0150-0267A

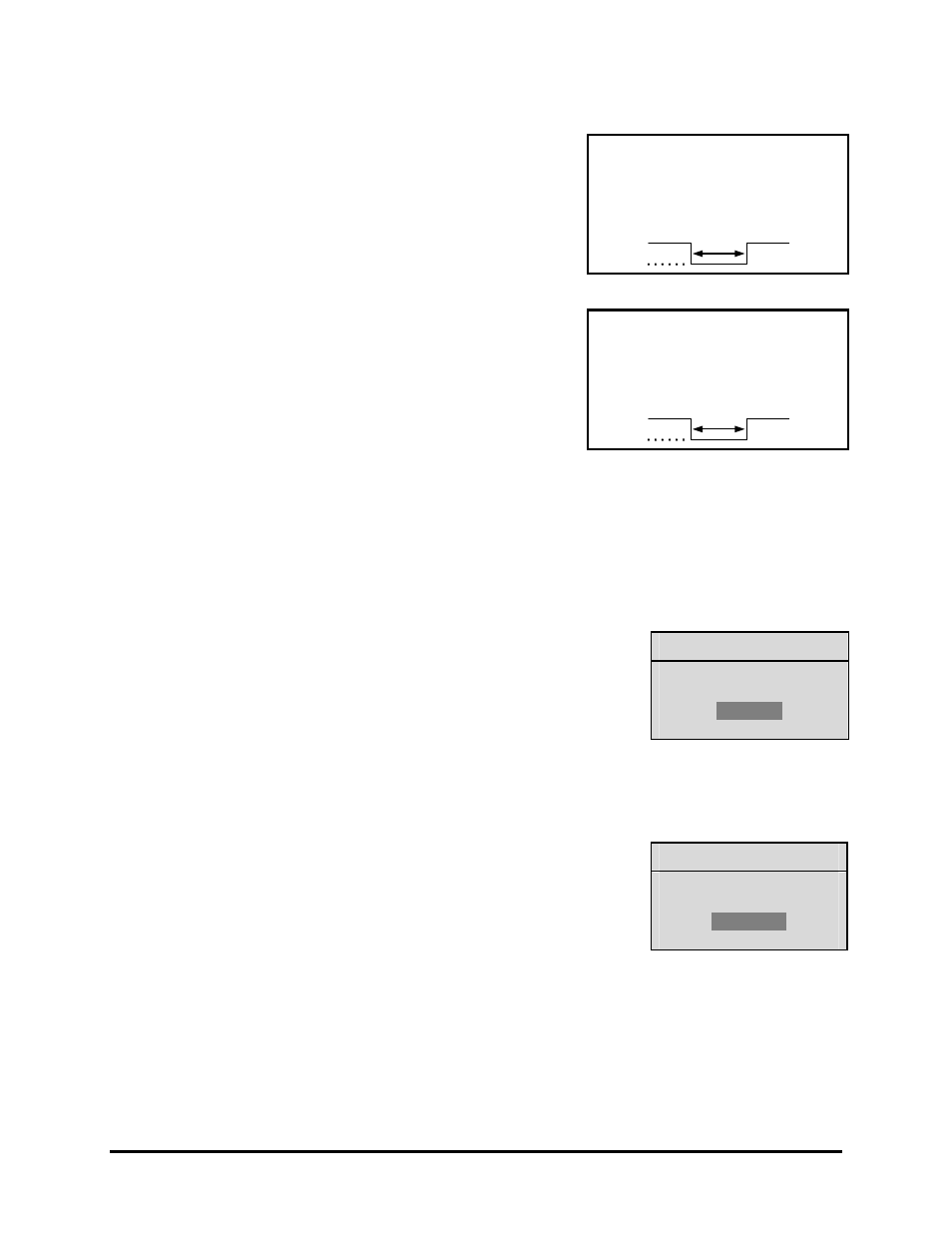

Videoloss Out
The Videoloss Out signal is activated when the unit experiences
videoloss on the video input (Composite).
In the event of videoloss, VIDEOLOSS will be indicated near the
upper left hand corner of the primary monitor.
Output: Open Collector
High: Transistor Off
Low: Transistor On
Active When On.
Current Out: 10mA Max
Minimum Duration: 0.5 Seconds
Disk End Out
The Disk End Out is activated when there is 5 minutes of
recording space left on the hard disk. The Vista Solo must be in
Record mode and set to Continuous Overwrite mode. Output: Open Collector
High: Transistor Off
Low: Transistor On
Active When On.
Current Out: 10mA Max
Minimum Duration: 0.5 Seconds
1.9 Setting the Time and Date
It is recommended that, as a minimum, the following menu items be configured before using the unit.
For detailed information about using the menu system, see section 3.
o Main Menu
→ Time/Date → Set Time Format
Time Format Setup
Select Format
12 Hour
To set the Time format, use the Arrow buttons to select the desired
Time format. Format the time as either:
•
12 HOUR
•
24 HOUR
Press the Enter button to confirm the selection and exit the menu.
--OR—
Press the Menu button to exit the menu without making changes.
o Main Menu
→ Time/Date → Set Date Format
Date Format Setup
Select Format
MM/DD/YY
To set the Date format, use the Arrow buttons to select the desired Date
format. Format the Date as either:
•
DD/MM/YY
•
MM/DD/YY
•
YY/MM/DD
Press the Enter button to confirm the selection and exit the menu.
--OR—
Press the Menu button to exit the menu without making changes.
