4 Use Only Genuine Hayward Replacement Parts.

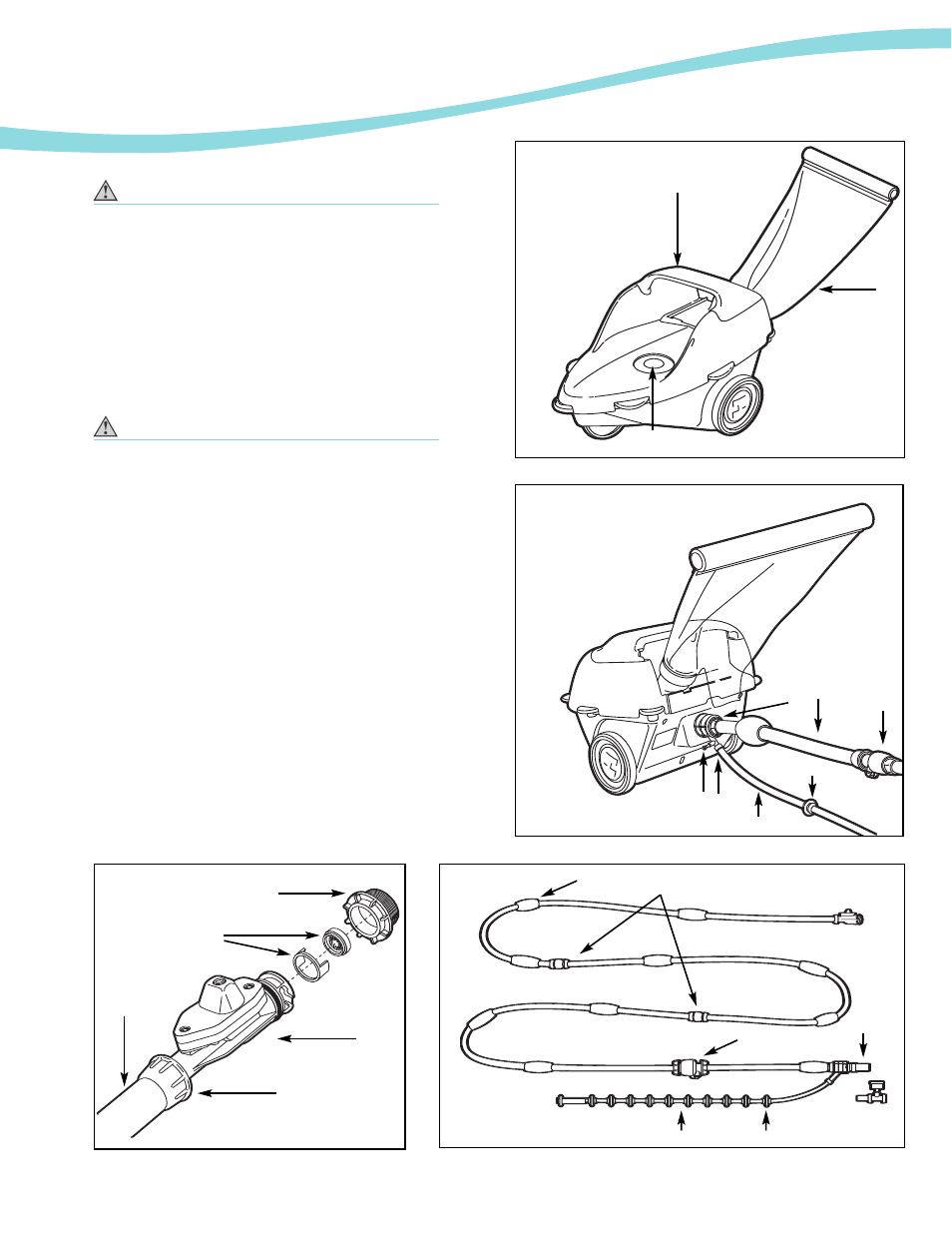

Principle Parts
Warning - Risk of Injury
Read this entire Owner’s Guide before installing the Viper
cleaner.
1. Installation of the Booster Pump by a licensed electrician
should precede installation of the Viper Cleaner.
2. Lay the parts on the ground and check against the
illustration below.
3. Stretch hoses out as straight as possible in the sun to
allow them to relax and straighten.
Caution - Risk of Equipment Damage
Never store the hose in a coil! Coiling the hose will
adversely affect the operation of the cleaner.
A Wing
B Large Capacity Debris Bag with Float Closure
C Cleaner Connector
D Sweep Hose Connector
E Sweep Hose Adjustment Screw
F Cam Cap
G Pressure Hose
H Hose Floats
J Jetted Swivel
K Hose Swivels
L Wall Quick Connect
M Sweep Hose
N Wear Rollers
P Universal Wall Fitting
Q Mender Nut
R Red Automatic Flow Regulator and Adapter Ring
S Screen
Wall Quick Connect Pressure Hose
Rearview Product
G
P
L
Q
H K
N
J
R
Front view Product
B
F
C
G
M
D E
J
N
A
S
M
