7.2

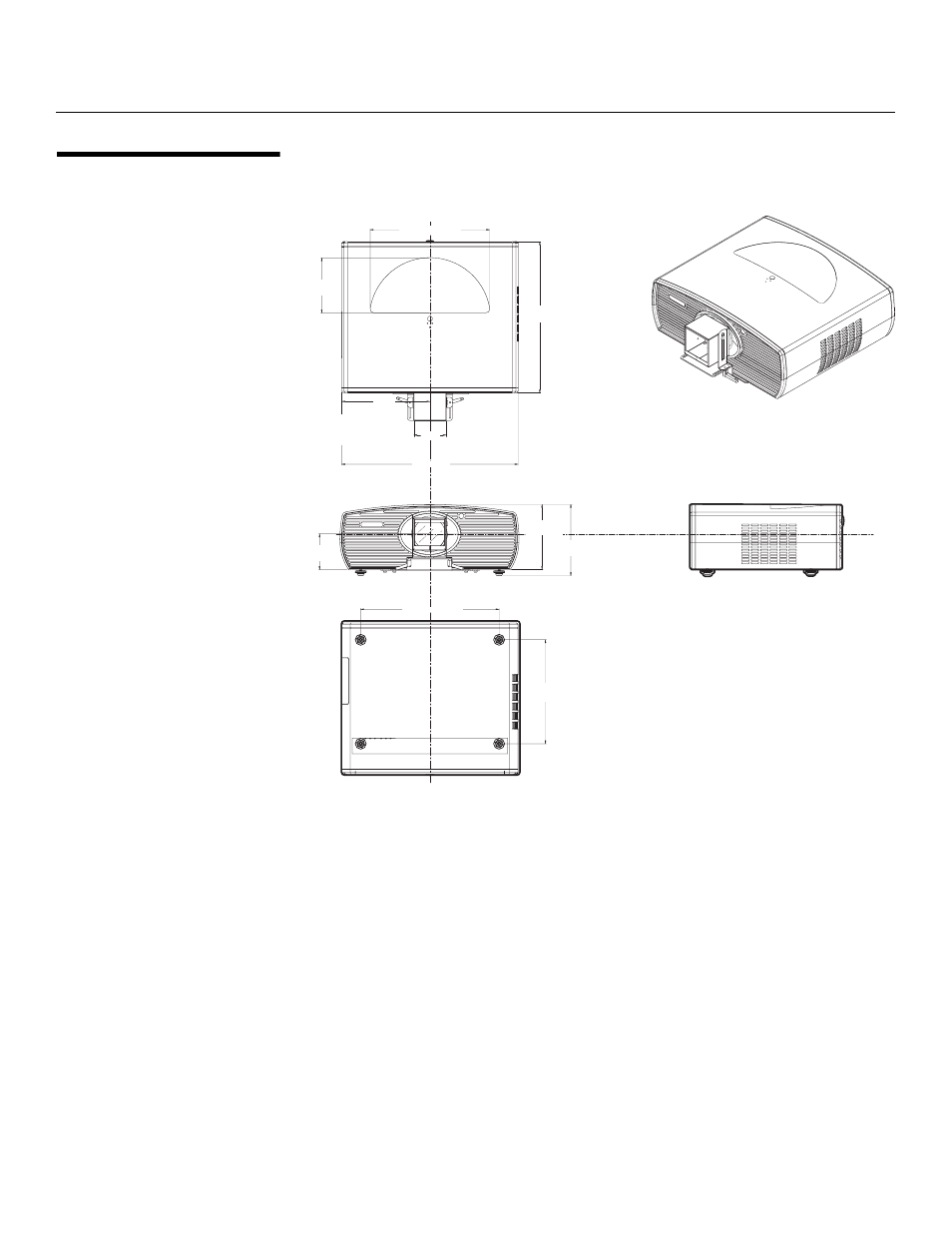

Vision 70 Dimensions Figure 7-1 shows the Vision 70 dimensions.
Figure 7-1. Vision 70 Dimensions (with Optional Fixed Anamorphic Lens)
14.9 in. (379.68 mm)
4.1 in.
(103.89 mm)
17.3 in. (440.00 mm)
13.0 in.
(330.00 mm)
11.0 in.
(280.25 mm)
22.0 in.
(560.51 mm)
4.4 in.
(110.80 mm)
8.0 in.
(203.00 mm)
8.8 in.
(222.50 mm)
18.9 in.
(480.00 mm)
6.9 in.
(175.00 mm)
