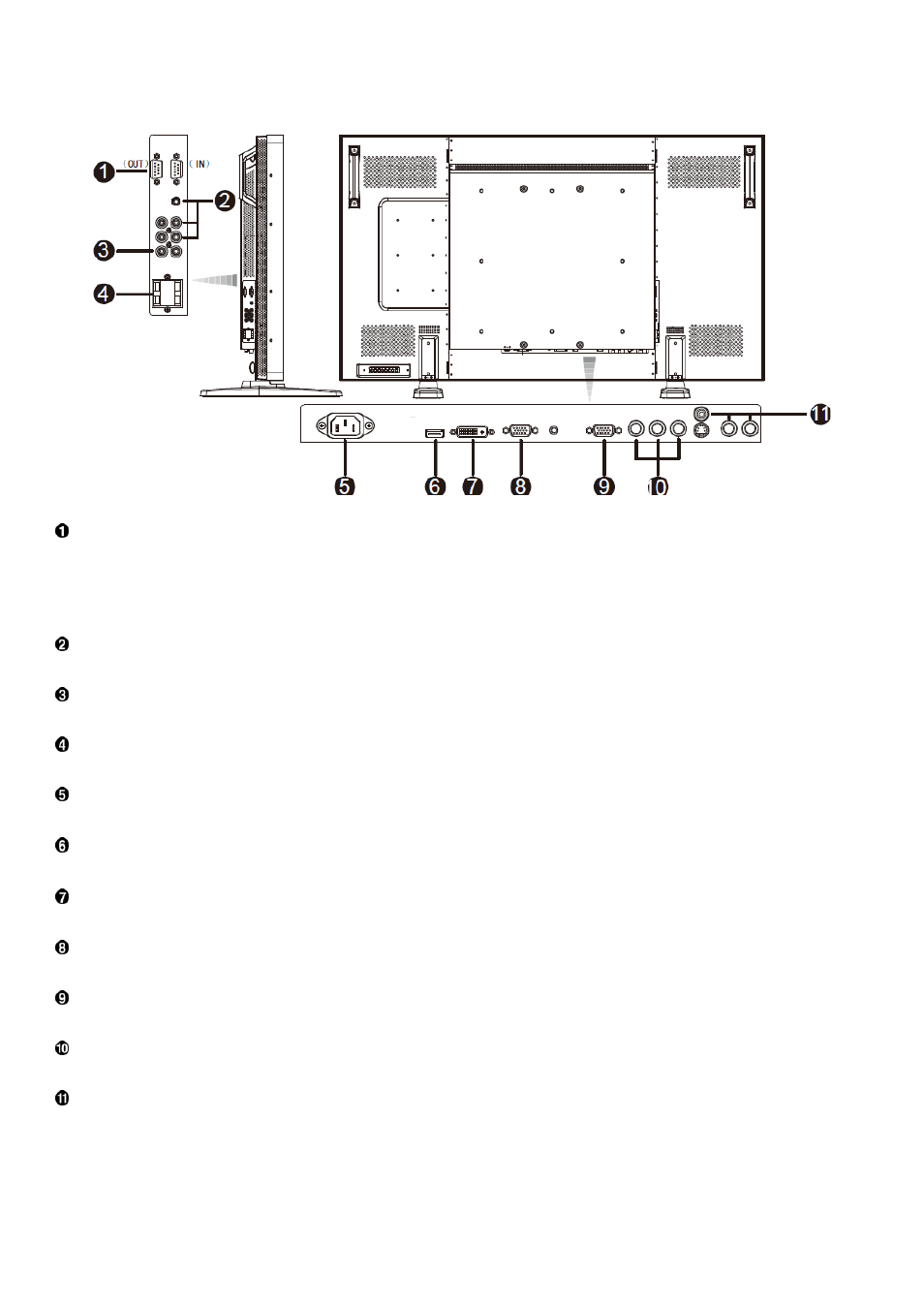

Terminal Panel
EXTERNAL CONTROL (mini D-Sub 9 pin)
This is for serial connection when multiple monitors are connected. To achieve remote management through RS232 commands (refer to
the RS232 remote control user manual), connect the RS-232C OUT connector from a computer or from a different monitor to the RS-232C
IN connector from your monitor. The same RS-232C commands can be looped through by connecting the RS-232C OUT of this monitor to
the next RS-232C IN.
AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a computer, VCR or DVD player.
AUDIO OUT
To output the audio signal from the AUDIO IN 1,2 and 3 jack or HDMI.
EXTERNAL SPEAKER TERMINAL
To output the audio signal to external speakers from AUDIO IN 1, 2, 3 jack or HDMI.
AC IN connector
To connect with the supplied power cord.
HDMI IN
To input digital video/audio signals from a digital equipment or computer.
DVI-D IN
To input digital video signals from a digital equipment or computer.
PC-A IN (mini D-Sub 15 pin)
To input analog RGB signals from a computer or other RGB equipment.
RGB OUT (mini D-Sub 15 pin)
To output the signal from PC-A IN.
COMPONENT IN [Y, Pb/Cb, Pr/Cr] (BNC)
To connect an equipment such as a DVD player, HDTV device, or Laser disc player.
VIDEO IN/OUT
VIDEO IN connector (BNC and RCA):
To input a composite video signal. Note that BNC and RCA are not available at the same time.
VIDEO OUT connector (BNC):
To output the composite video signal from VIDEO IN connector.
S-VIDEO IN connector (MINI DIN 4 pin):
To input the S-video (Y/C separate signal).
