Vantec eSATA PCI & PCI-E Card & CardBus User Manual
Page 8
5. Installation:
SATA/eSATA PCI Host Controller (UGT-ST300) / SATA/eSATA PCI-Express Host
Controller (UGT-ST400):
5.1. Hardware Installation:

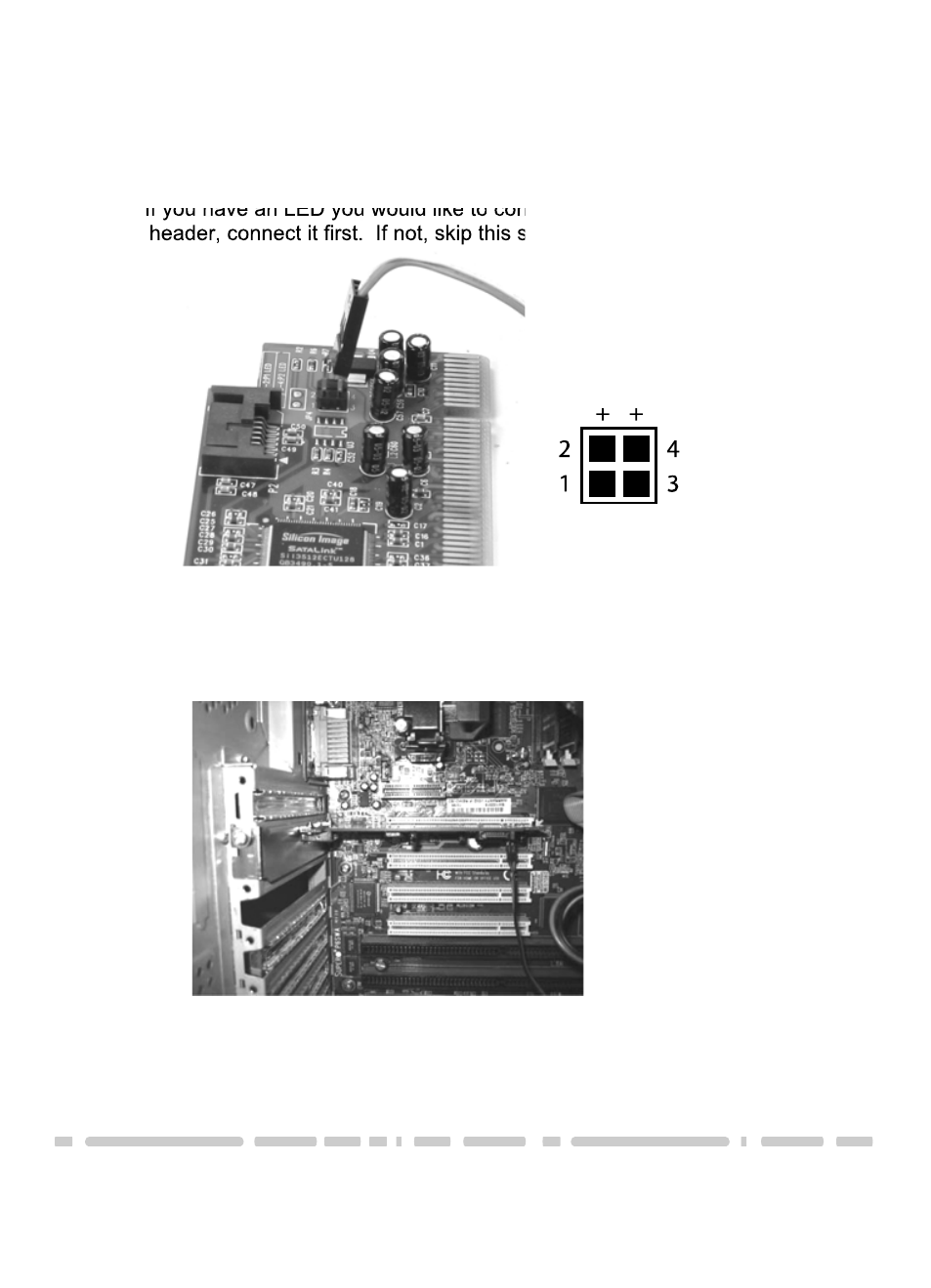

1)
If you have an LED you would like to connect to the drive activity
header, connect it first. If not, skip this step.
1-2 External Port
3-4 Internal Port
Pins 2 and 4 are positive
2) Insert card into an open PCI slot in your computer. When firmly
seated in the PCI slot (or PCI-E slot for ST400), screw in mounting bracket.
Installation
6
