ViewSonic N3235w / N3735w 17
ENGLISH
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Getting Started
Component (YPbPr) connection
YPbPr provides better picture quality than the S-Video or the AV connection.
＊
For YPbPr connection, connect the component video (YPbPr) and audio jacks to the
corresponding output jacks of your A/V device.
--- VIDEO: YPbPr 1 signal input [6]
--- AUDIO: YPbPr 1 signal Audio input [12]
or
--- VIDEO: YPbPr 2 signal input [5]
--- AUDIO: YPbPr 2 signal Audio input [11]
HDMI connection
HDMI (High-Definition Multimedia Interface) is a licensable audio/video connector interface
for transmitting uncompressed, encrypted digital streams between this TV and any HDMI-
equipped audio/video equipment.
＊
Be sure to use only an HDMI cable that bears the HDMI logo.
＊
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI
Input Terminal (with DVI-to-HDMI cable or adapter), and connect the Audio cable to the
Audio In jacks.
1. With HDMI cable: HDMI 1 Input Terminal [2] or HDMI 2 Input Terminal [3]
2. With HDMI-DVI cable:
--- VIDEO: HDMI 1 Input Terminal [2]
--- AUDIO: HDMI 1 Audio input [10]
or
--- VIDEO: HDMI 2 Input Terminal [3]
--- AUDIO: VGA/ HDMI 2 signal Audio input [16]
Computer connection
Connect the VGA cable and Audio cable from the VGA signal input and PC Audio input to
the corresponding ports on your A/V device.
--- VIDEO: VGA signal input [4]
--- AUDIO: VGA/ HDMI 2 Audio input [16]

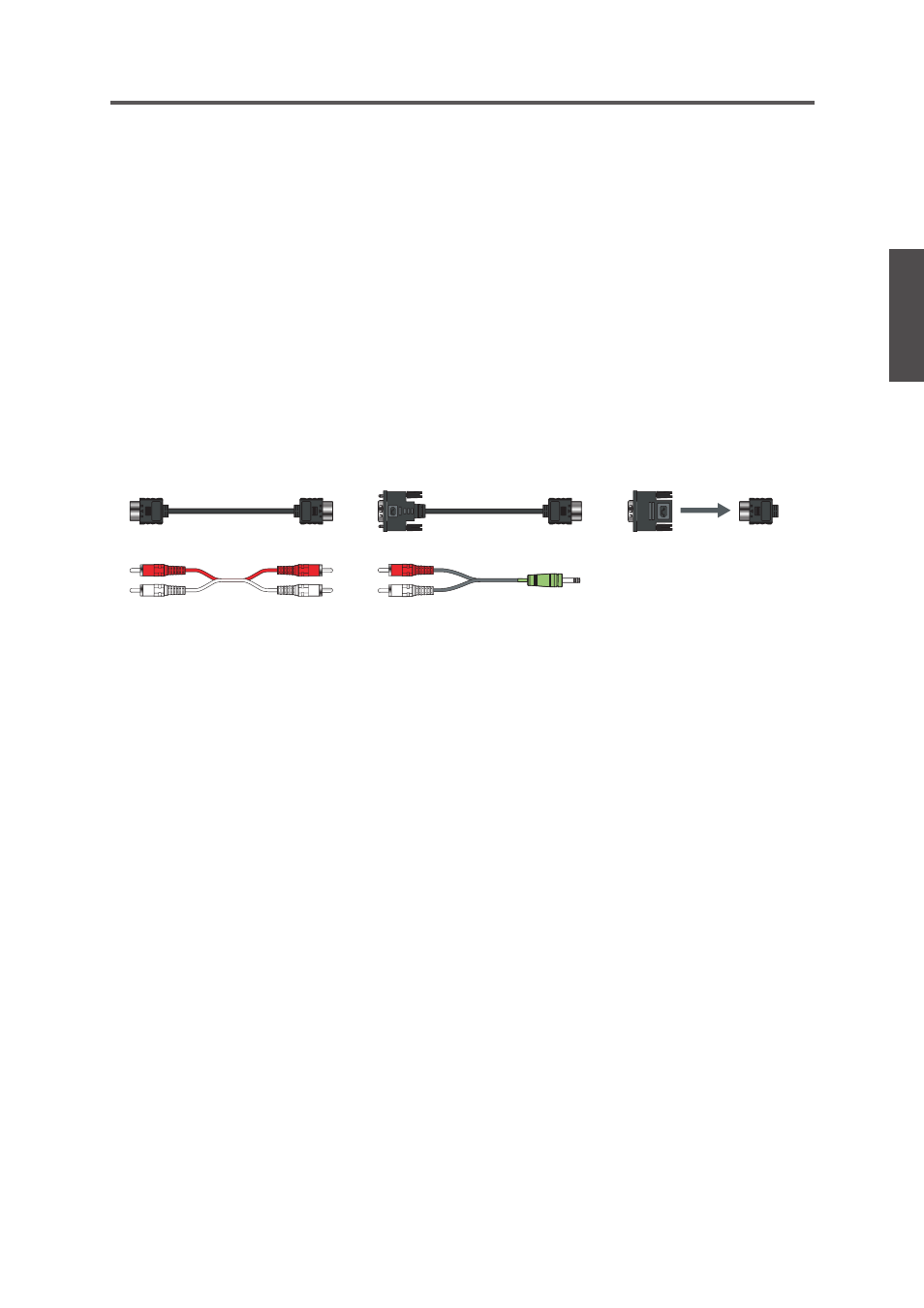

DVI-to-HDMI cable HDMI cable
Audio cable Audio cable
DVI-to-HDMI adapter
