2 Vidikron Vision30/50 Ceiling Mt. Kit Installation Instructions rev. 10-07-05

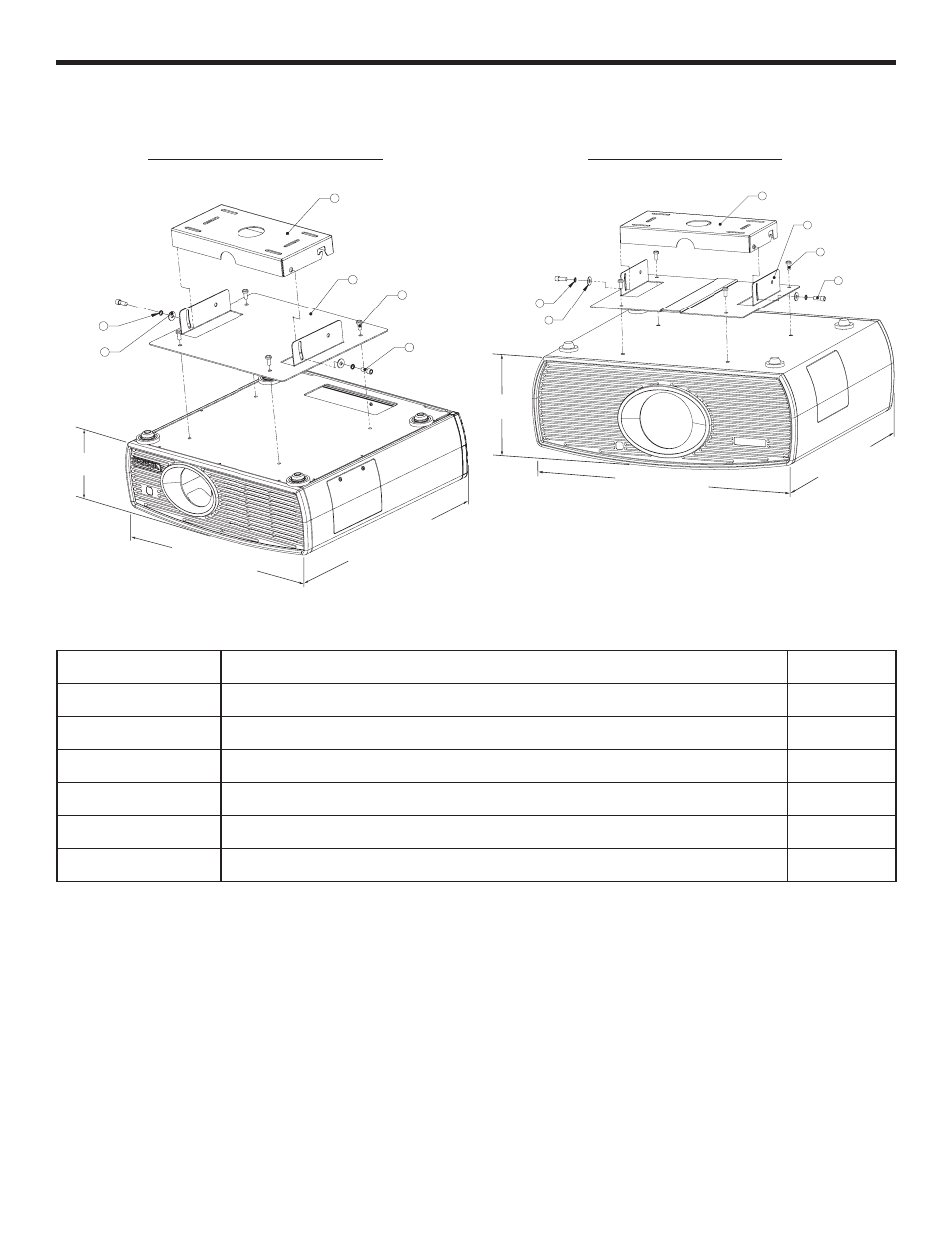

Parts List
The Vision 30 and Vision 50 ceiling-mount kits include the following items. If any components are missing or damaged,
please contact your Vidikron dealer or Vidikron Customer Service at (888) 4VIDIKRON.
Vision 30/30ET Ceiling Mount Kit Vision 50 Ceiling Mount Kit
Item Number Description Quantity
1 Ceiling Bracket 1
2 Projector Mounting Plate 1
3 M6 x 1.0 x 12mm Phillips Pan Head screw 4
4 ¼-20 x 5/8” Socket head cap screw 2
5 ¼-20 Flat washer 2
6 ¼-20 Lock washer 2
5
2
1
3
4
6
5.57 in
. (141.5 mm)
16.61 in. (421.9 mm
)
17.72 in. (450.1 mm)
3
5
2
1
4
6
8.0 in.
(203.0 mm)
18.9
in.
(480.0 mm
)
22.0 in. (560.51 mm)
